DUALVIEW SERIES

Every Side Tells a Story

InVisia DualView Series is an all-in-one holographic invisible LED banner, supporting both single-sided and double-sided advertising. Built on our signature 4-layer PCB and 2oz copper construction, DualView ensures zero fire risk, enhanced heat dissipation, and long-term durability.

Key Features & Advantages

Lightweight LED Panel

Weight only 5.6 kg/sqm

80% Transparency

See beyond the screen

HD Display Quality

Even pixel spacing, integrated LEDs and driver, 16-bit grayscale

Dual-Sided Display

Twice the exposure, from every angle

High-contrast display

Black LEDs. Pure contrast

Rotatable Design

Adjust the view, adapt to the space

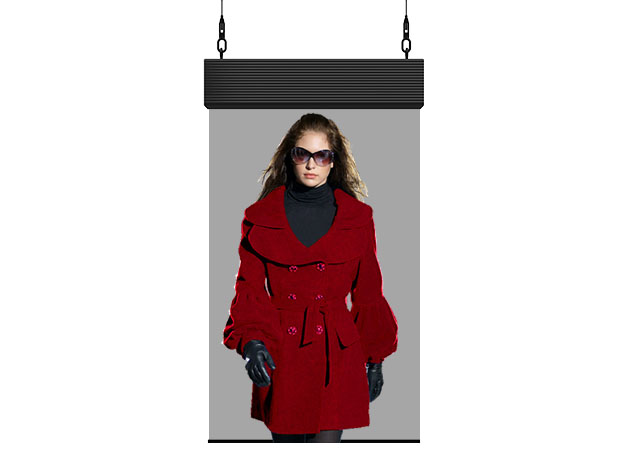

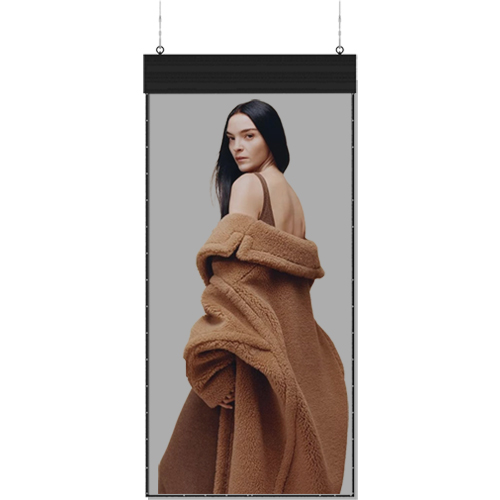

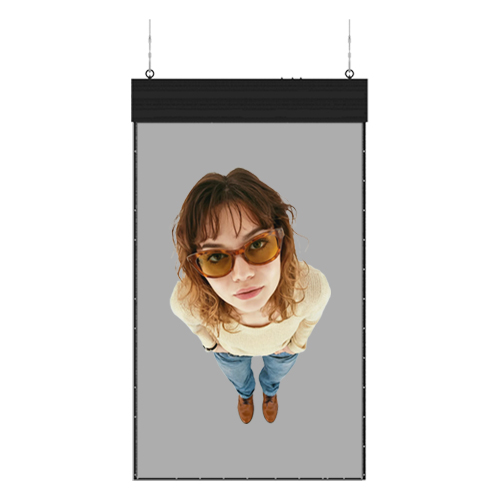

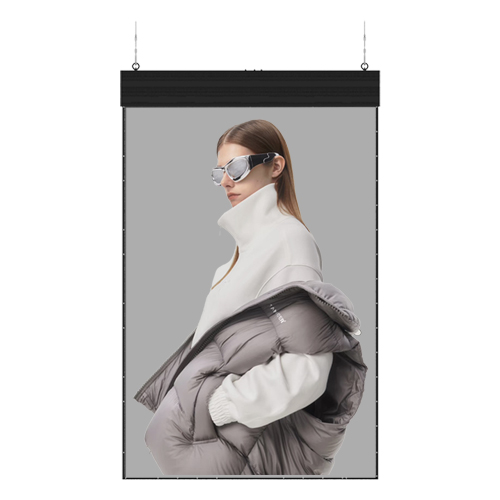

Dual-View Holographic LED Banner

Built-in Sending Card — True All-in-One Design

The DualView Series comes with a built-in sending card(NovaStar or Colorlight Sending Card), creating a fully integrated, plug-and-play solution. Simply power it on — no external media player required. As an industry-first innovation, this all-in-one design simplifies setup, enhances stability.

Flexible Configuration & Rotation

Featuring a rotatable machine, the DualView holographic invisible LED banner supports both single-sided and double-sided advertising setups, allowing for flexible adaptation to diverse spaces and applications.

Mobile Stability Engineering

Move easily. Perform reliably. Equipped with a reinforced base and optional wheels, Dualview ensures stable operation while enabling fast deployment and repositioning in rental scenarios.

DualView Brochure

SPECS

DUALVIEW SERIES SPECIFICATION

Model	55＂					65＂				70＂
Pixel Pitch	2.0 mm	2.9 mm	3.91 mm	2.0 mm	2.9 mm	3.91 mm	2.0 mm	2.9 mm	3.91 mm
Pixel Density	250,000 dot/ m²	112,896 dot/ m²	65,536 dot/ m²	250,000 dot/ m²	112,896 dot/ m²	65,536 dot/ m²	250,000 dot/ m²	112,896 dot/ m²	65,536 dot/ m²
Visual Transparency	70%	70%	80%	70%	70%	80%	70%	70%	80%
Module Size	750 mm × 1,200 mm	750 mm × 1,200 mm	750 mm × 1,200 mm	750 mm × 1,500 mm	750 mm × 1,500 mm	750 mm × 1,500 mm	1,000 mm × 1,,500 mm	1,000 mm × 1,,500 mm	1,000 mm × 1,,500 mm
Overall Module Size	783mm × 1,329mm × 78mm	783mm × 1,329mm × 78mm	783mm × 1,329mm × 78mm	783mm × 1,629mm × 78mm	783mm × 1,629mm × 78mm	783mm × 1,629mm × 78mm	1,033mm × 1,629mm × 78mm	1,033mm × 1,629mm × 78mm	1,033mm × 1,629mm × 78mm
Led Type	1010	1818	2121	1010	1818	2121	1010	1818	2121
Weight (banner/Totem Type)	19.5 kg	14.5 kg / 18.5 kg	11.5 kg / 15.5 kg	19.5 kg	17.5 kg / 21.5 kg	13 kg / 17 kg	19.5 kg	19.6 kg / 23.6 kg	17 kg / 21 kg
Resolution Ratio	375 × 600 pix	252 × 392 pix	192 × 300 pix	375 × 600 pix	252 × 492 pix	192 × 376 pix	375 × 600 pix	336 × 492pix	256 × 376 pix
Brightness	2,000 nits	2,000 nits	3,500 nits	2,000 nits	2,000 nits	3,500 nits	2,000 nits	2,000 nits	3,500 nits
Display Thickness	2.6 mm	3 mm	3.6 mm	2.6 mm	3 mm	3.6 mm	2.6 mm	3 mm	3.6 mm
Power Consumption Max/average	1,368/ 486	1,431/ 500	1,703/ 596	1,368/ 486	1,787/ 623	1,679/ 587	2,280/ 810	2,382/ 831	2,238/ 783
Operation Temperature	-20℃～+50℃
Storage Humidity	10%RH～85%RH,no condensation
Working Humidity	20% RH ~ 85% RH, no condensation
Storage Temperature	-20℃ ~+60℃
Packaging Method	Cardboard Case/Plywood Case/Flight Case
Certifications	CE, FCC, ETL, RoHS
LED Control System	Synchronous / Asynchronous
Playback Control	Input:HDMI/WiFi/Bluetooth,Built-in Playback System,32GB of storage,Cloud Management
Resumable Transmission	√
Average Lifespan	≥ 100,000 hours
Gray Scale	≥16 bit
White Field Color Temperature	5,500 K - 15,000 K (adjustable)
Atenuation Rate	2 years below 0.05%
Average Fault Free Wor King Time	≥ 100,000 hours
Viewing Angle	Horizontal 160, Vertical 140
Installation Method	Hanging/Floor Stacking

□ Add to compare □ Add to compare

All specifications are per panel and for reference only; actual values may vary. Max hanging/stacking capacities are valid only with official InVisia Displays hardware and proper ballast (for stacking), as detailed in manuals/reports. A safety factor of 8 applies. Climbing is permitted only as specified in the panel manual.

Applications

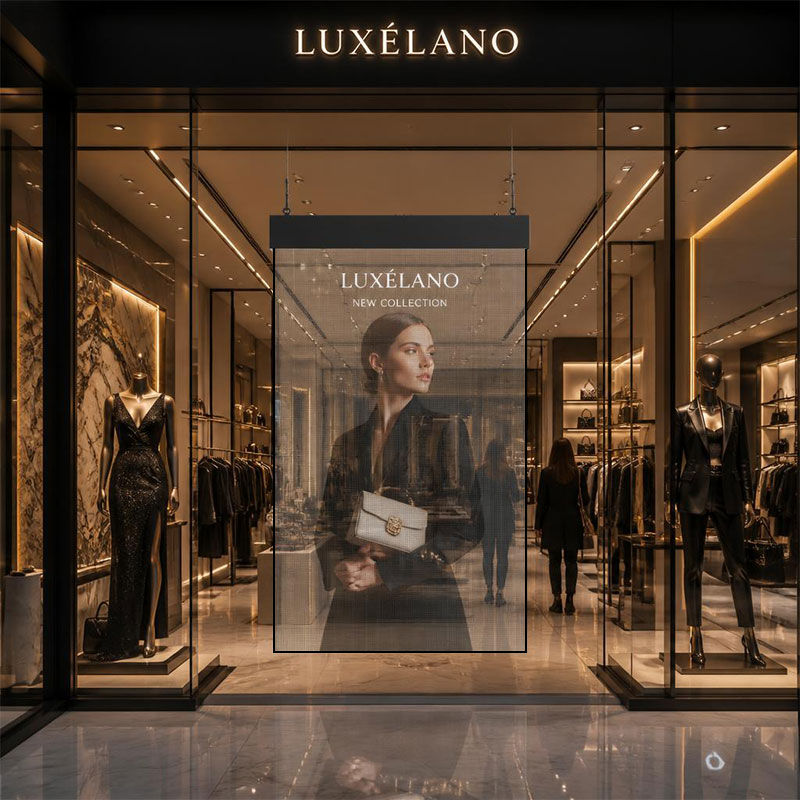

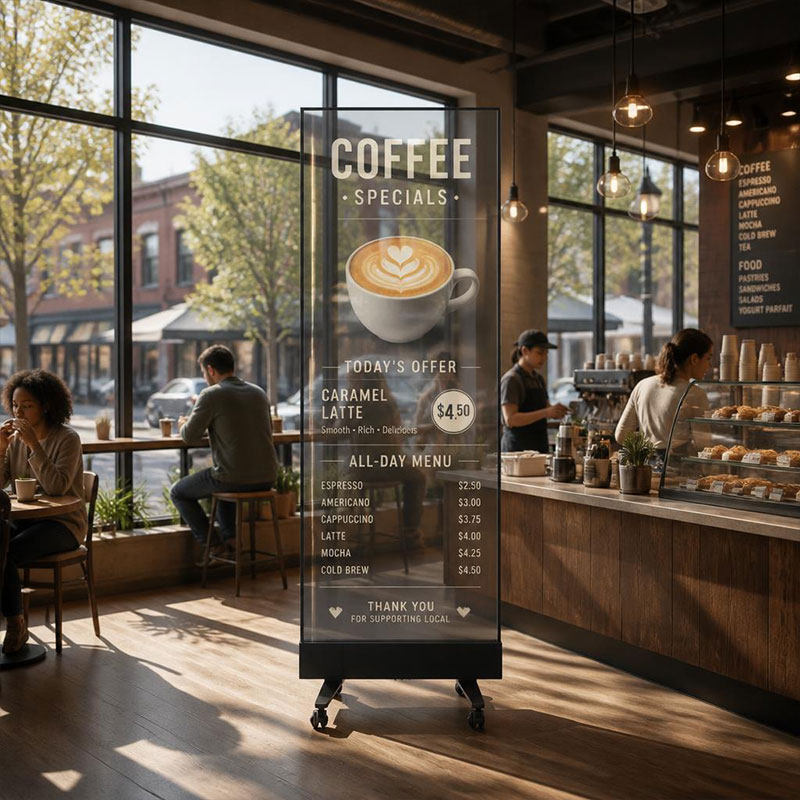

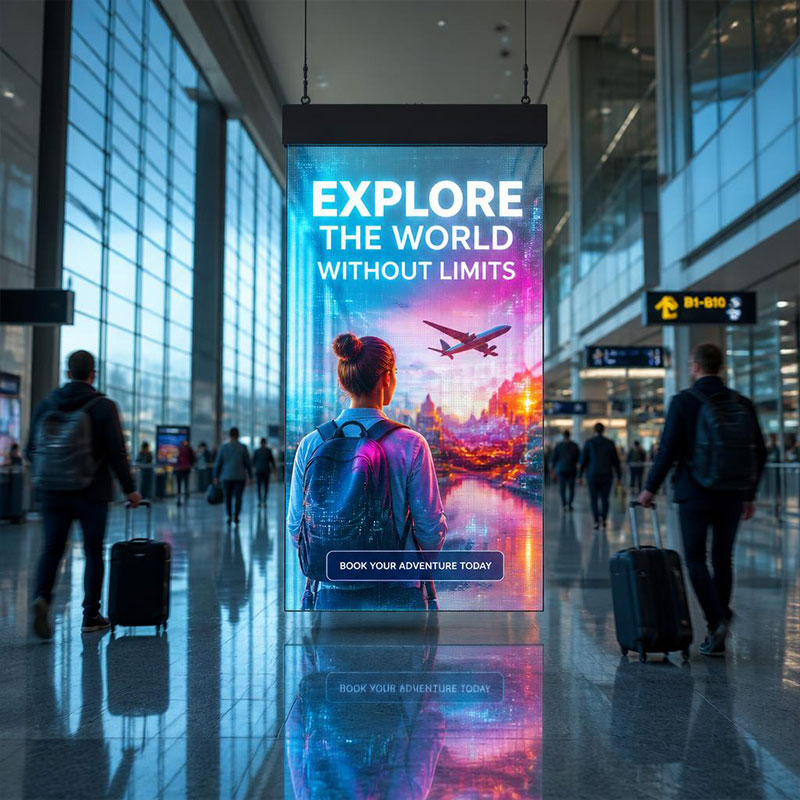

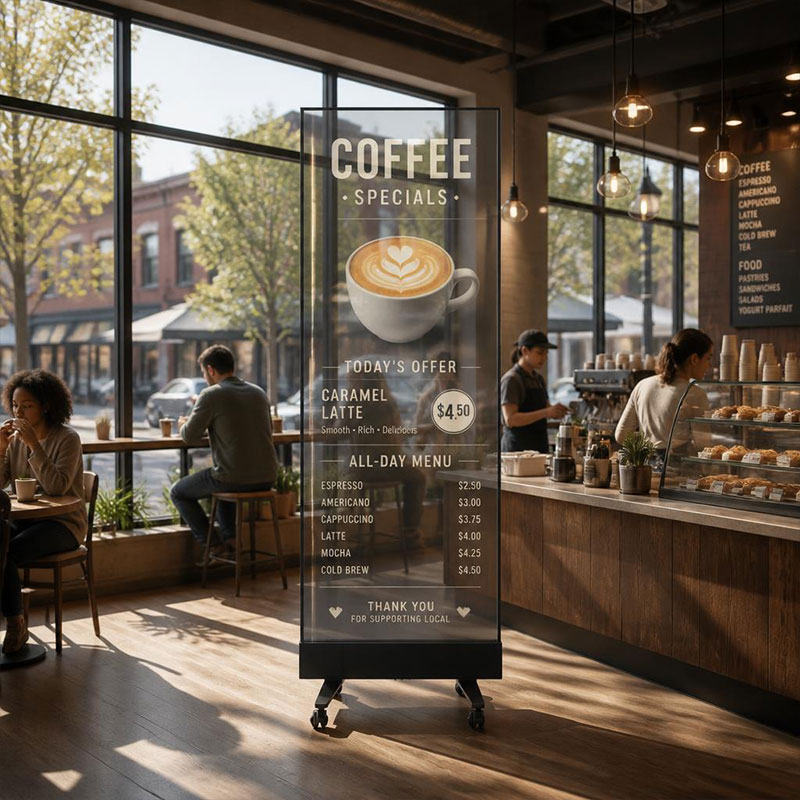

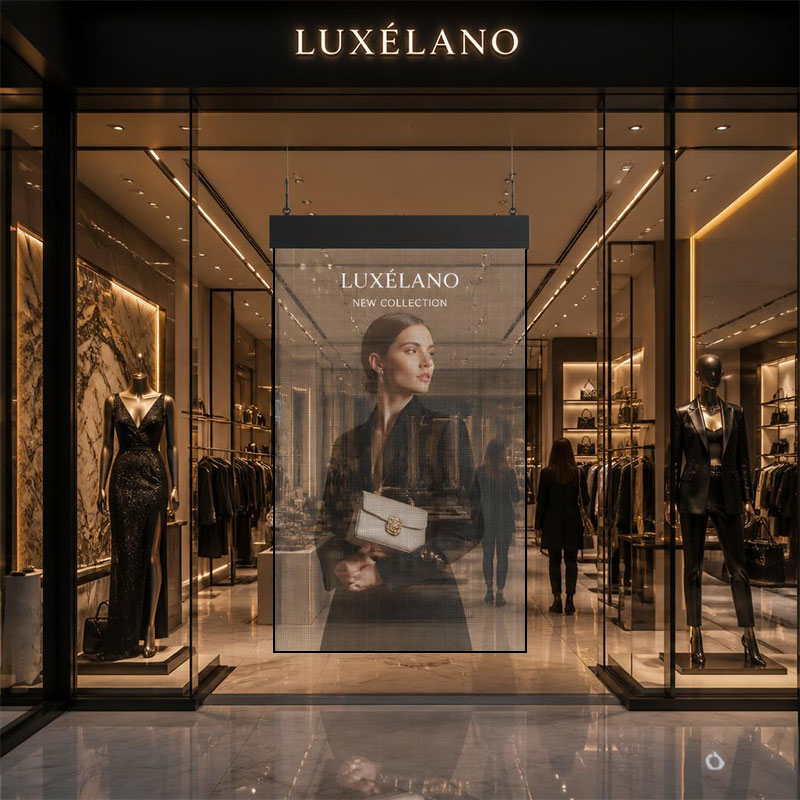

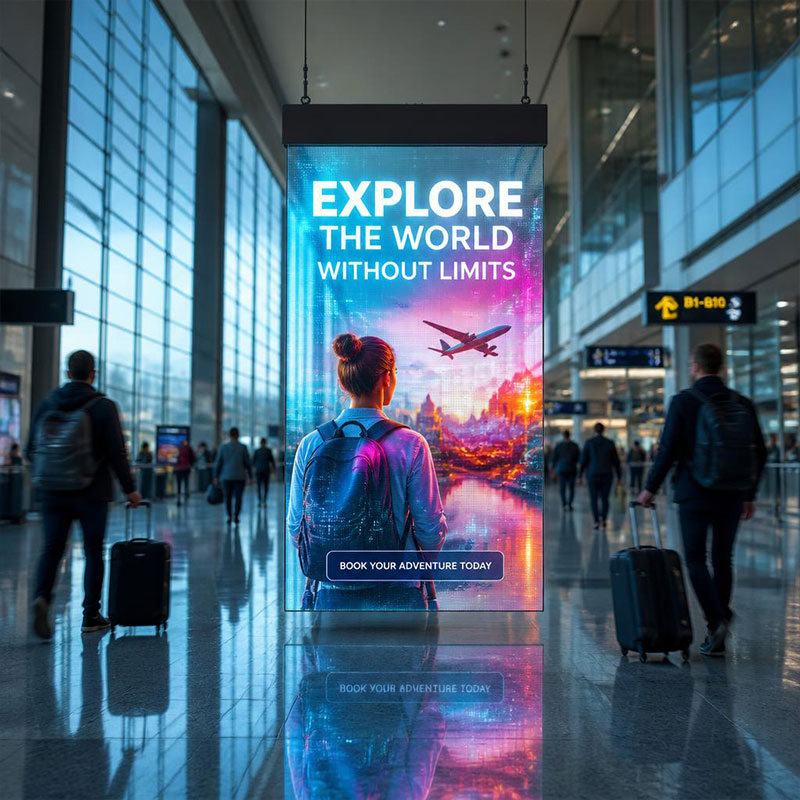

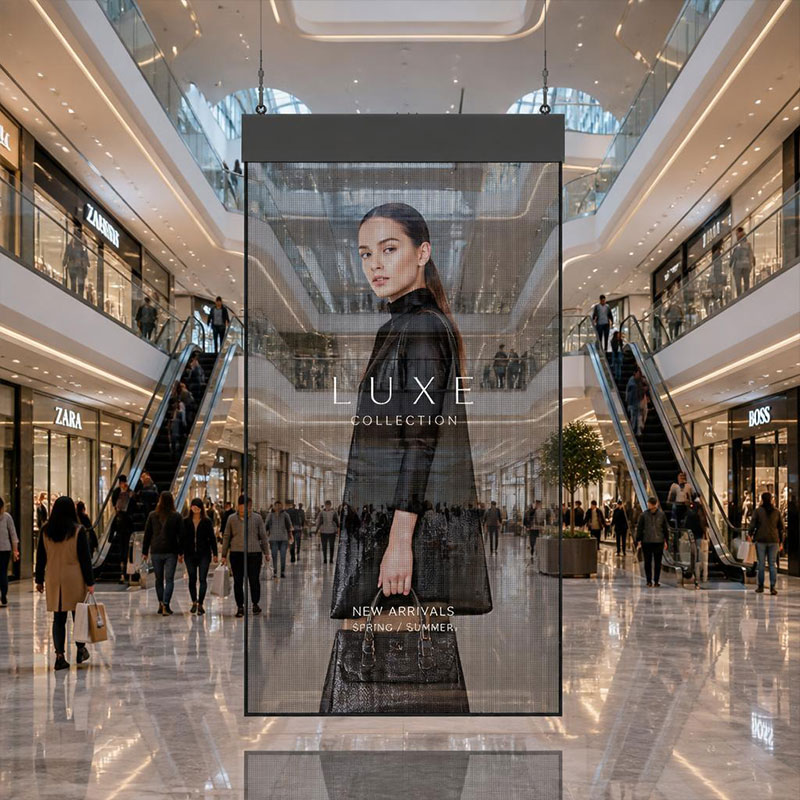

Unlike traditional LED posters or LCD displays, holographic LED banners feature an open mesh structure that provides outstanding transparency, making them ideal for storefront windows, shopping malls, museums, airports and luxury retail environments.

The InVisia DualView Series combines holographic visuals, double-sided display capability and an integrated media player into one plug-and-play solution.
