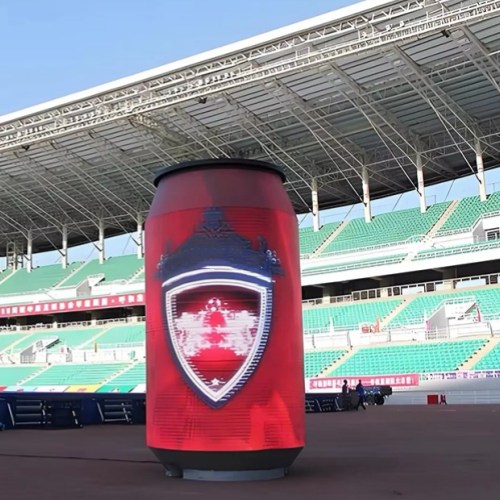

CAN LED SERIES

360° Visual Impact in a Compact Form

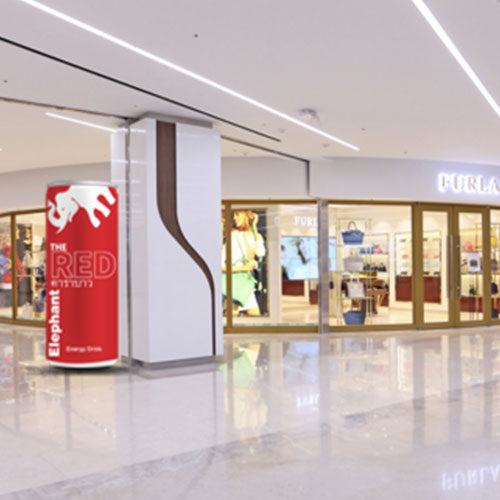

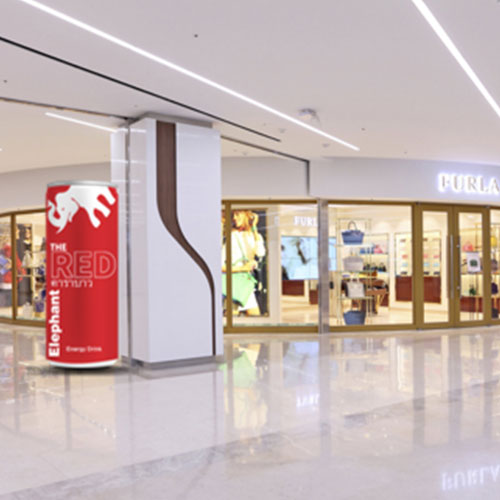

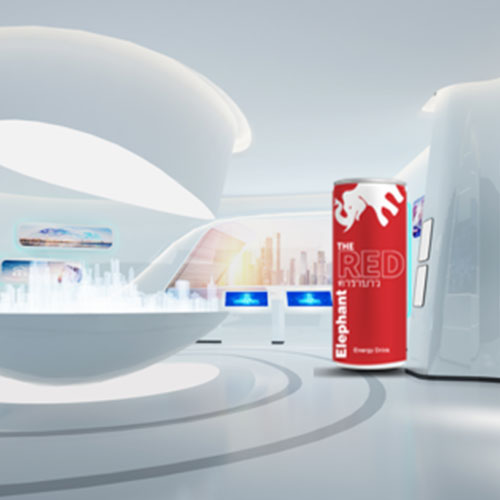

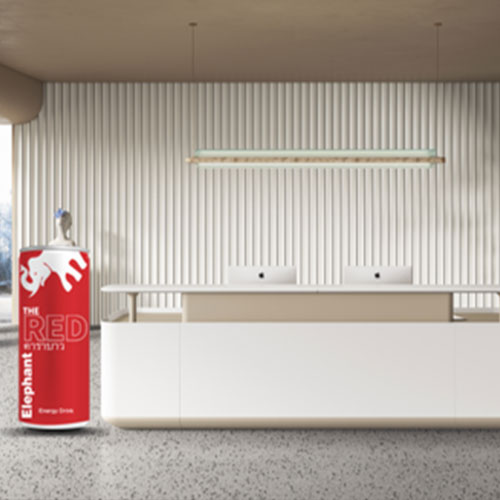

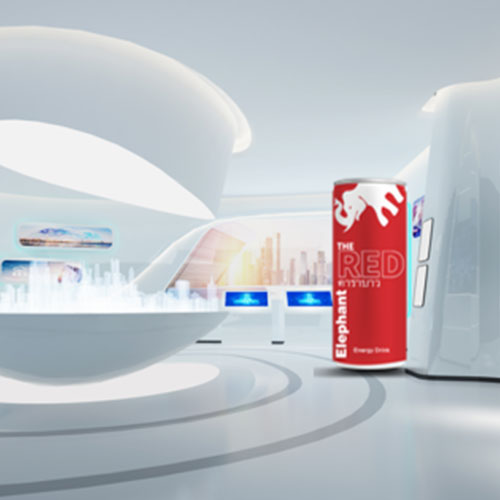

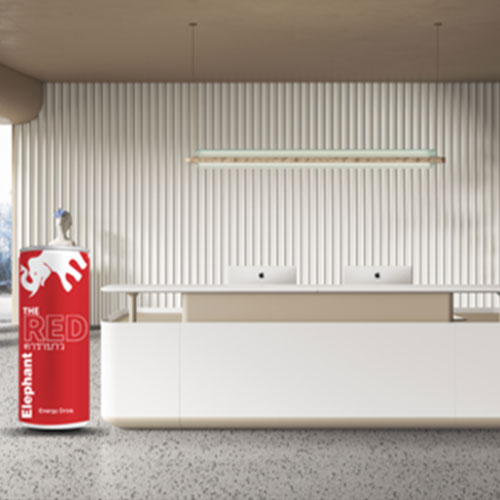

Can LED display features a can-shaped design with cooling capability, offering a creative way to showcase dynamic content and enhance brand recall. It is ideal for beverage promotions, convenience stores, bars, and exhibitions, helping elevate the ambience, enhance interaction, and boost brand visibility.

Key Features & Advantages

Modular Engineering Structure

Precision-built modular LED system for stable performance

Wired & Wireless Control

Supports both wired and wireless content management

Multiple Connectivity Options

Equipped with versatile input interfaces for flexible integration

Seamless Visual Experience

Seamless LED surface for smooth and uninterrupted content playback

Multi-Screen Content Support

Flexible split-screen display for multiple content zones

Iconic Cylindrical Design

A bold cylindrical form that turns digital display into a visual landmark

360° Immersive Visibility

Full-angle visibility with uninterrupted 360° content experience

High Brightness & Vivid Display

Ultra-bright LED performance with rich color expression

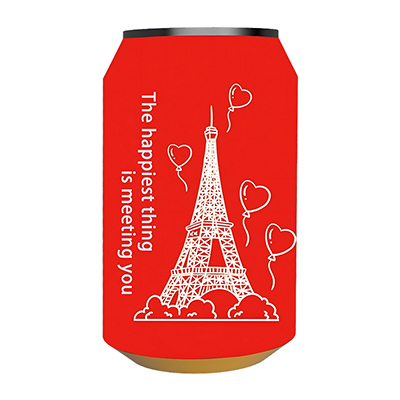

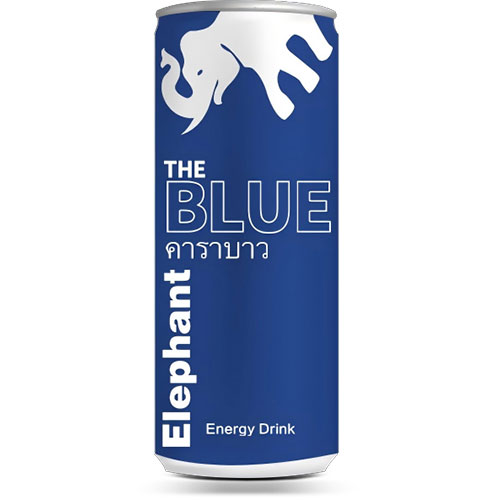

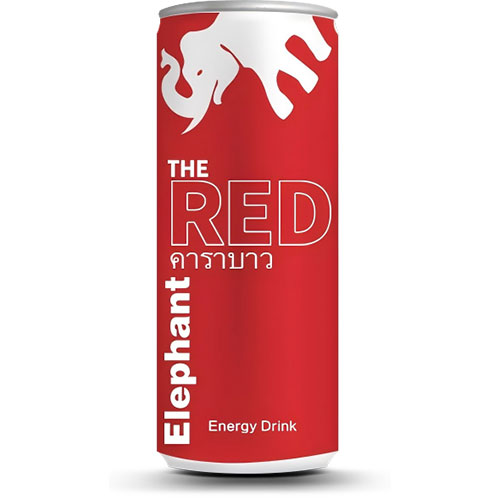

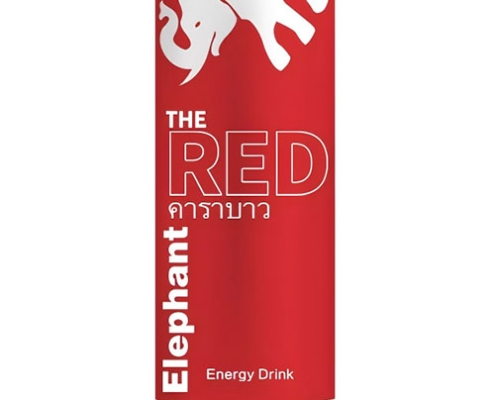

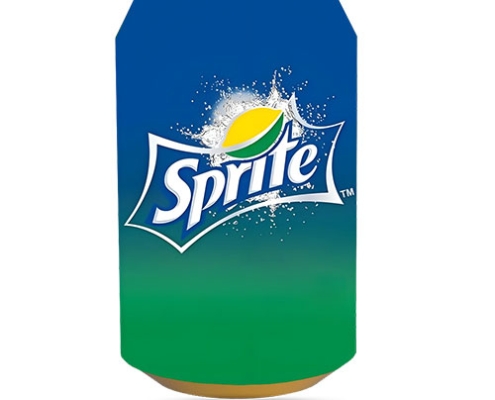

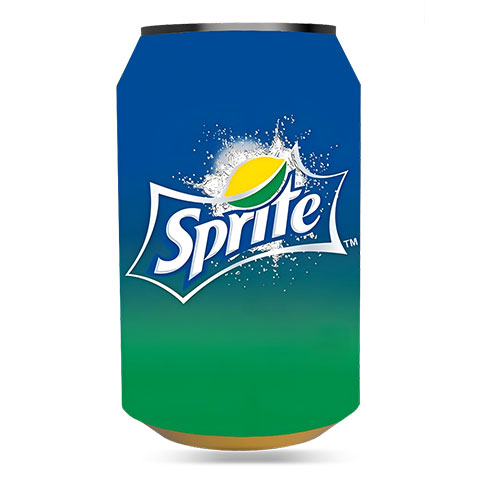

Can LED Display

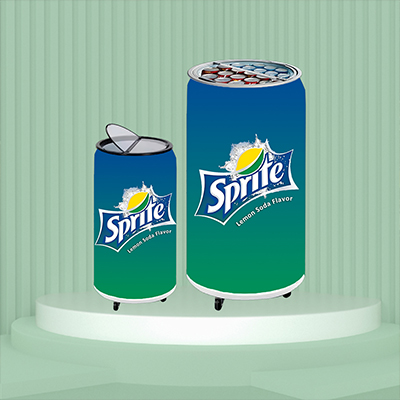

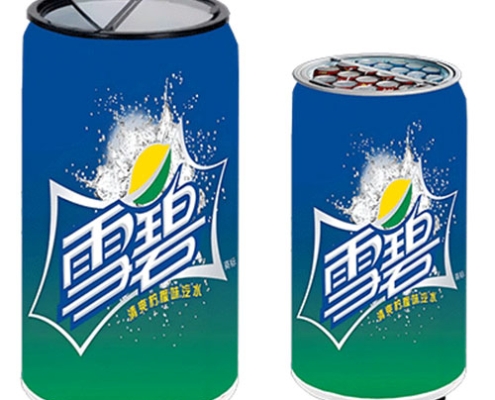

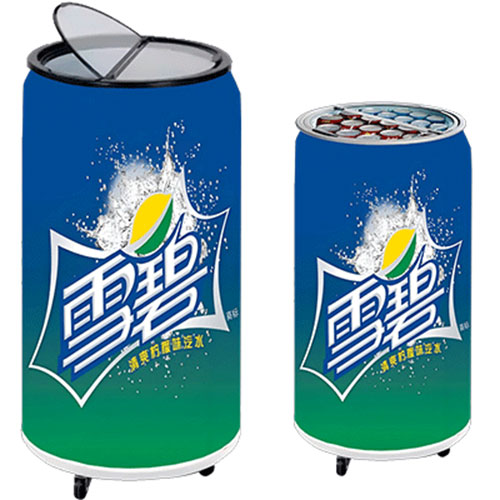

An LED Display That Doubles as a Refrigerator

Transform the way you showcase beverages. This LED Display can also function as a refrigerator, keeping drinks chilled while delivering eye-catching visual content. Equipped with optional bottom wheels, it’s easy to move and position anywhere in your store or event space. With dynamic images and videos playing directly on the screen—combined with built-in cooling—your product presentation becomes far more engaging than traditional fridges. Stand out from competitors and boost beverage sales this summer with a smarter, more creative display solution.

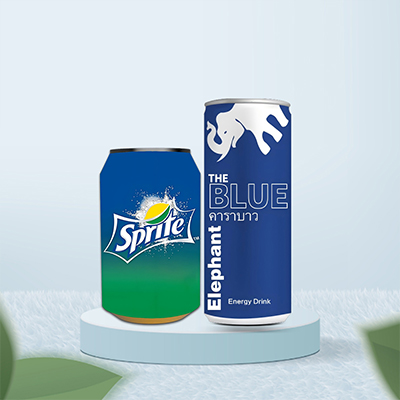

High-Definition LED Display

InVisia Can LED screen supports a range of refresh rate configurations. A higher refresh rate ensures more stable image performance with minimal flicker, delivering clearer, smoother, and more comfortable viewing. This gives your content a truly professional look.

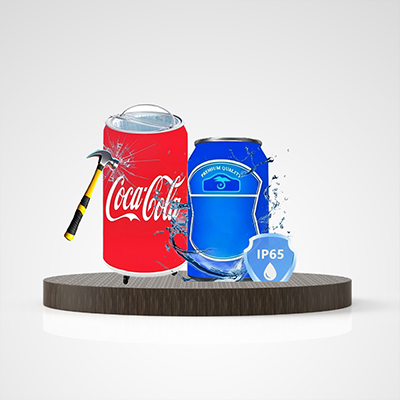

IP65 Outdoor Can LED

Can LED display feature full IP65 protection, effectively resisting dust, rain, and harsh weather conditions. The aluminum housing offers excellent corrosion resistance, ensuring long-term durability and stable operation even in demanding outdoor installations.

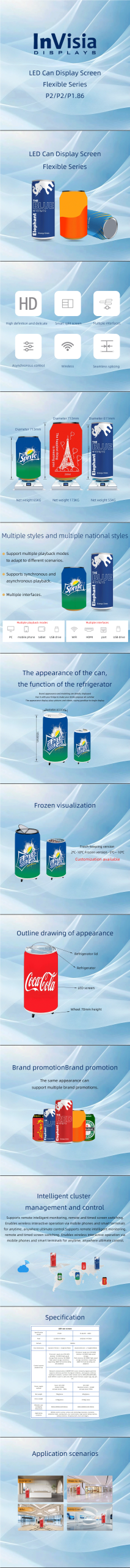

Can LED Display Brochure

SPECS

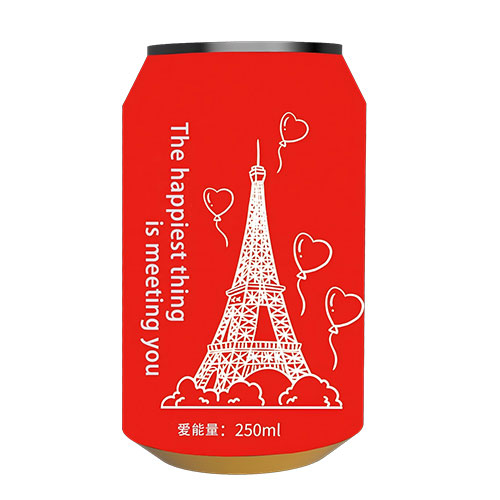

CAN SERIES SPECIFICATION

Model	p2	p2	p1.86	P1.86 (Custom Refrigerator Version)
LED Type	SMD1515 (Optional with GOB)	SMD1515 (Optional GOB)	SMD1212 (Optional GOB)	SMD1212 (Standard with GOB)
Pixel Density (dots/m²)	250,000 dots/m²	250,000 dots/m²	288,906 dots/m²	288,906 dots/m²

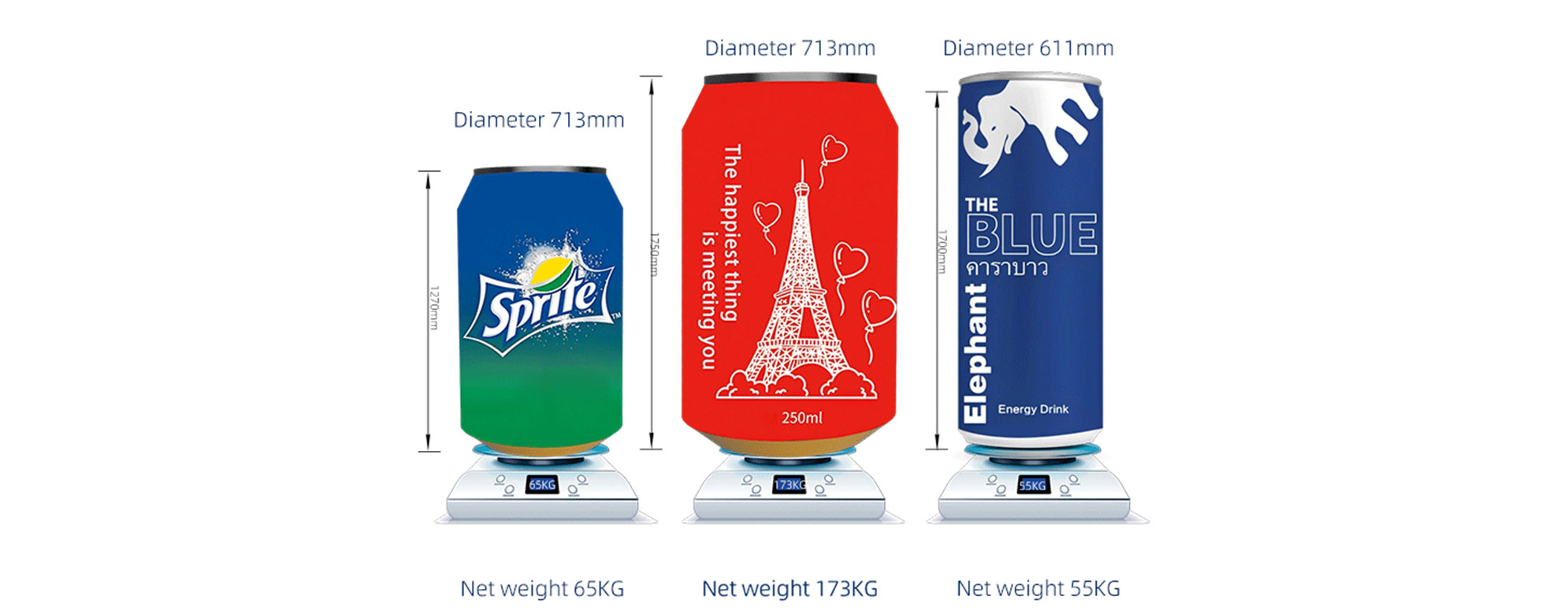

Overall Dimensions (W × H × D) (mm)	Height 1,270mm x Diameter 713mm	Height 1,750mm X Diameter 713mm	Height 1,700mm X Diameter 611mm	Height 1,050mm X Diameter 611mm
Display Resolution (pixels)	1,120 x 560 dots	1,120X800 dots	1,032X817 dots	1,032X473 Dots
Cabinet Weight (kg)	Net weight 65kg	Net weight 173kg	Net weight 67kg	Net weight 36kg
Control System	Wired/WiFi/4G cloud control (Optional)	Network/WiFi/4G cloud control (Optional)	Wired/WIFI/4G cloud control (Optional)	Wired/WiFi/4G Cloud Control (Optional)
Service Access	Front maintenance	Front maintenance	Front maintenance	Front Maintenance
Cabinet Material	Sheet metal iron box	Sheet metal iron box	Metal sheet box	Sheet Metal Iron Box
Brightness (nits)	≥600	≥600	≥600	≥600
Packing Dimensions (mm)	900mm x 900mm x 1,530mm	900x900×2,020mm	800×800×1,850mm	800×800×1,270mm
Viewing Angle (H/V)	170°/170°	170°/170°	170° /170°	170° /170°
Brightness & Color Uniformity	≥99.8%	≥99.8%	≥99.8%	≥99.8%
Contrast Ratio	6000:01:00	6000:01:00	6000:01:00	6000:01:00
Frame Frequency	50/60	50/60	50/60	50/60
Driving Mode	Constant current drive, 1/40 scan	Constant current drive, 1/40 scan	Constant Current Drive, 1/43 scan	Constant Current Drive, 1/43 Scan
Gray Scale	12-16bit	12-16bit	12-16bit	12-16bit
Refresh Rate (Hz)	3,840	3,840	3,840	3,840
Max. Power Consumption (Approx. W/m²)	800	1,200	600	420
Avg. Power Consumption (Approx. W/m²)	100-200	400-500	100-200	100-200
Power Requirements	AC90-264V, 47-63Hz
Operating Temperature / Humidity	-20-60℃/10%-85%
Storage Temperature / Humidity	-20-60℃/10%-85%
Compliance Standards	CCC/CE/RoHS/FCC/CB/TUV/IEC/BIS

█ Add to compare █ Add to compare

All specifications are per panel and for reference only; actual values may vary. Max hanging/stacking capacities are valid only with official InVisia Displays hardware and proper ballast (for stacking), as detailed in manuals/reports. A safety factor of 8 applies. Climbing is permitted only as specified in the panel manual.
