Transparent LED Film Supplier
- Flexibility
- UV Resistance
- Adhesive-Free Installation
AEROVIEW SERIES
Invisible When Off. Brilliant When On.

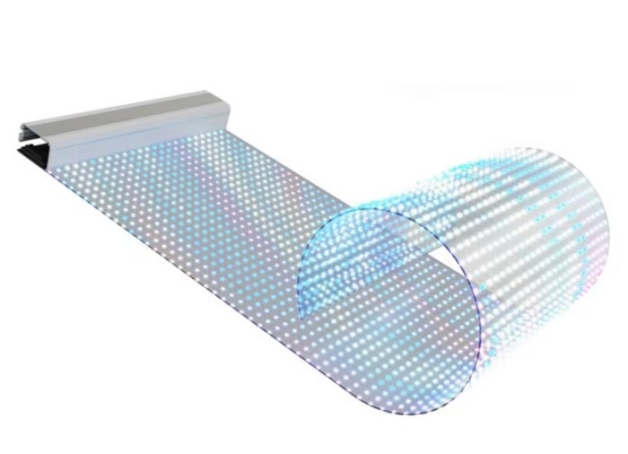

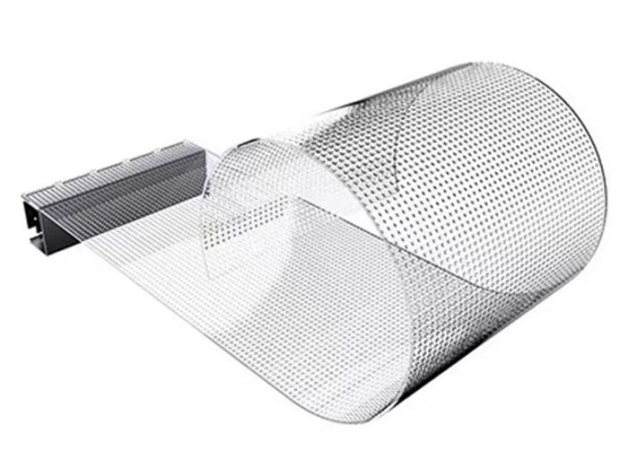

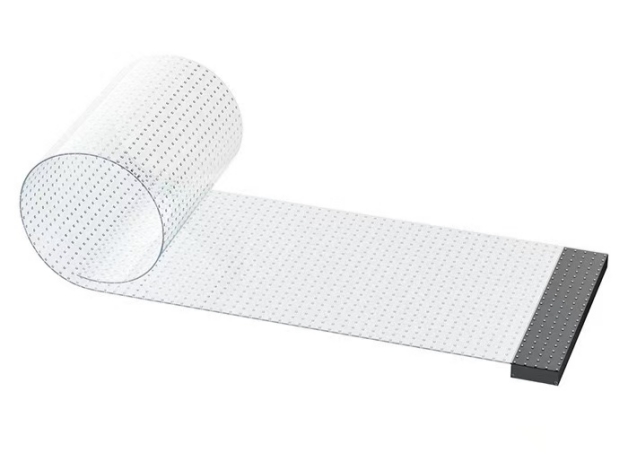

The AeroView Series represents a breakthrough in transparent display technology. Engineered as an ultra-thin, flexible LED film, it seamlessly adheres to any glass surface— transforming ordinary windows and partitions into vibrant digital canvases without compromising natural light or architectural aesthetics.
Key Features & Advantages
SUPER-LIGHTWEIGHT DESIGN
Light to carry, built to impress
ULTRA-HIGH TRANSPARENCY
See beyond the screen
FLEXIBLE RIGGING
Hang it. Stack it. Done.
HD DISPLAY QUALITY
Even pixel spacing, integrated LEDs and driver, 16-bit grayscale.
ADVANCED 4-LAYER STRUCTURE
PET substrate, ultra-fine metal grid
DAMAGE-FREE REMOVAL
Clean removal without leaving residue
CUSTOMIZABLE DIMENSIONS
fit any glass dimension
INTEGRATED CONTROL SYSTEM
Static scan mode with integrated drivers
Glass with Light

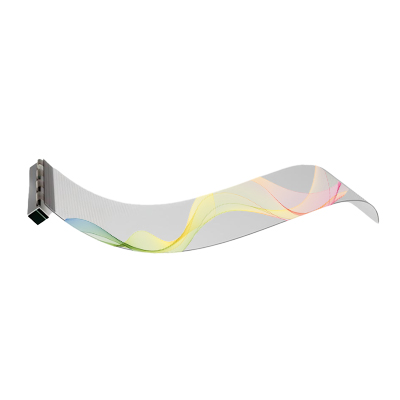

ULTRA-HIGH TRANSPARENCY
- Pixel Pitch: P4 / P5 / P6 /P8 /P10
- Module Size: 240*1000mm, customizable
- Installation Method: Glass-adhesive, standing, hanging
- Weight: 3.75kg/㎡
- Transparency: ≥82%
- FPC Cable: ≤70 mm
ADVANCED 4-LAYER STRUCTURE

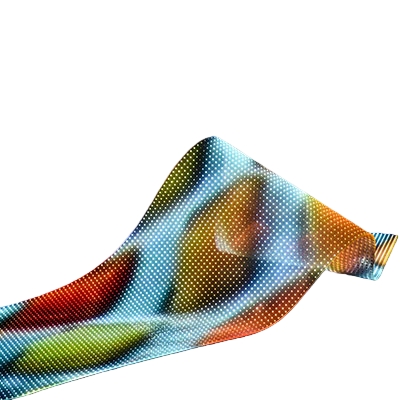

Built with an innovative four-layer structure featuring a PET substrate and ultra-fine metal grid, AeroView delivers exceptional visual performance while remaining virtually invisible when powered off. Its flexible nature allows for installation on curved surfaces, opening up unprecedented creative possibilities for retail, corporate, and public spaces
Adhesive-Free Installation
- Supports direct glass mounting for fast and convenient installation
- No extra steel structure needed, reducing installation cost
- Lightweight modules allow quick installation, removal, and maintenance, saving time and labor
Spes
VITRA SERIES SPECIFICATION
| Full Specifications | ||||||
| AeroView Series—Flexible Transparent LED Film Technology | ||||||
| Parameter | P4 | P4-8 | P5 | P6 | P8 | P10 |
| DISPLAY PERFORMANCE | ||||||
| Pixel Pitch | 4×4 mm | 4×8mm | 5×5mm | 6×6mm | 8×8mm | 10×10 mm |
| Pixel Density | 62,500/m² | 31,250/m² | 40,000/m² | 27,556/m² | 15,625/m² | 10,000/m² |
| LED Type | SMD1313 | SMD2121 | SMD1313 | SMD2121 | SMD2121 | SMD2121 |
| Pixel Configuration | 1R1G1B | |||||
| Visual Transparency | ≥80% | ≥80% | ≥85% | ≥85% | ≥85% | ≥90% |
| Brightness(White Balance) | ≤2,000 cd/m² | ≤2,500 cd/m² | ≤2,000 cd/m² | ≤3,800 cd/m² | ≤4,000 cd/m² | ≤6,000 cd/m² |
| Refresh Rate | ≥3,840 Hz | |||||
| Gray Scale | 16 Bit | |||||
| Frame Rate | ≥60 Hz | |||||
| Viewing Angle | H140°/V140° | |||||
| Color Temperature | 3,200K-8,500K(adjustable) | |||||
| PHYSICAL DIMENSIONS | ||||||
| Module Sizes | W1000×H240mm /W1200×H240 mm /W1500×H240mm (custom available) | |||||
| Display Thickness | 2.5 mm | |||||
| Weight(Film Only) | 3.5kg/m² | |||||
| Weight(with Power Box) | ≤7 kg/m² | |||||
| ELECTRICAL&ENVIRONMENTAL | ||||||
| Peak Power Consumption | 800 W/m² | |||||
| Average Power Consumption | ~240 W/m²(content dependent) | |||||
| Power Supply | AC 220V±10%,50-60 Hz(optional:110V/9-36V DC) | |||||
| Operating Temperature | 0℃ to+50℃ | |||||
| Protection Rating | IP30 | |||||
| Average Lifespan | ≥100,000 hours | |||||
| CONTROL & CONNECTIVITY | ||||||
| Scan Mode | Static (Integrated Driver) | |||||
| Input Interfaces | DVI, VGA, Composite Video | |||||
| Control System | Synchronous(PC)/ Asynchronous(WiFi App, USB) | |||||
| Installation Method | Front-mount Glass/Back-mount Glass/Acrylic | |||||
□ Add to compare □ Add to compare
All specifications are per panel and for reference only; actual values may vary. Max hanging/stacking capacities are valid only with official InVisia Displays hardware and proper ballast (for stacking), as detailed in manuals/reports. A safety factor of 8 applies. Climbing is permitted only as specified in the panel manual.

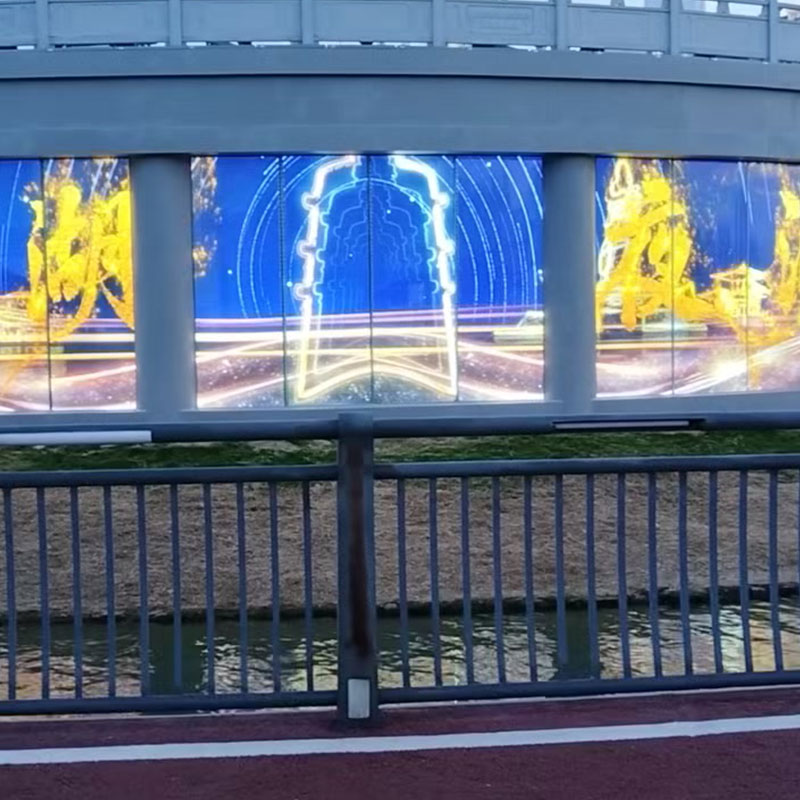

Architecture-&-Public-Spaces

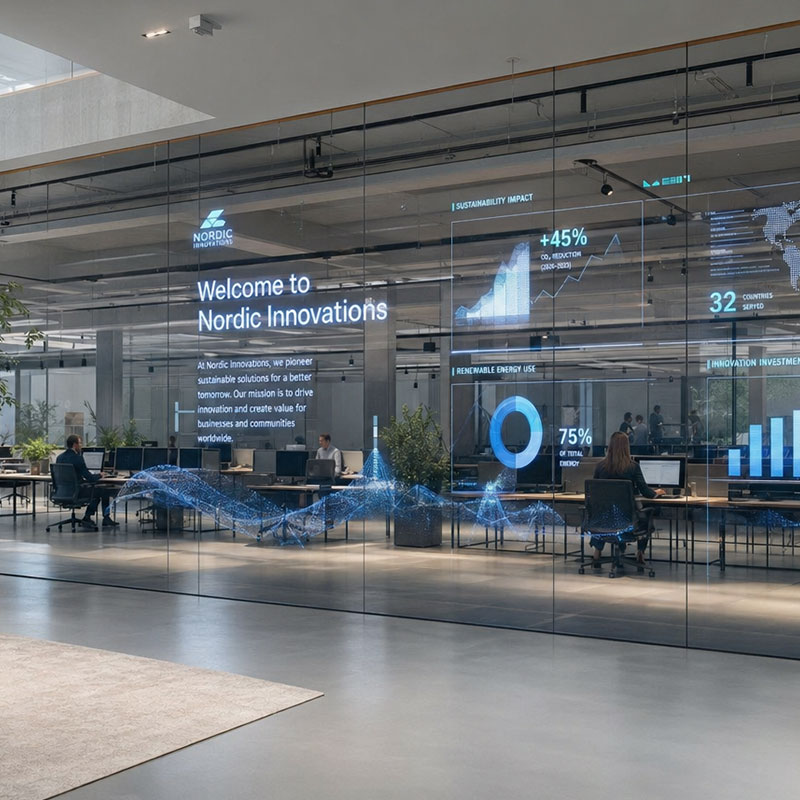

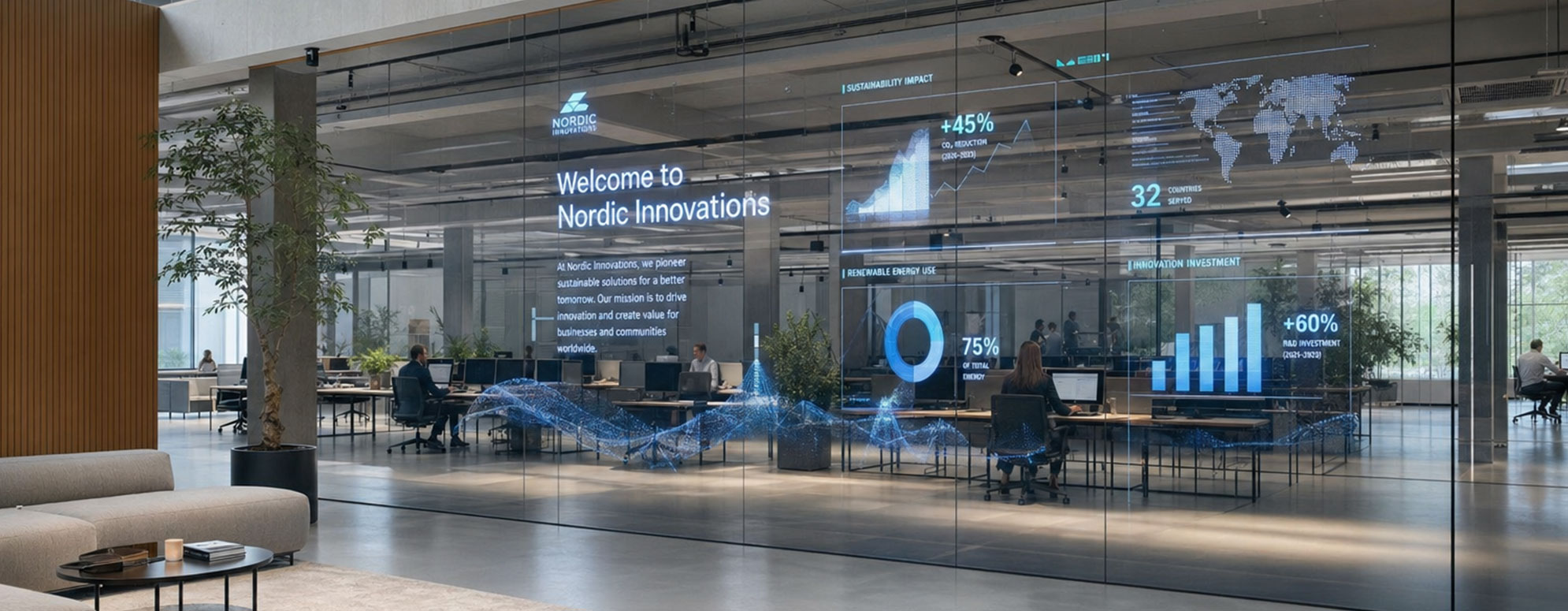

Corporate-&-Office

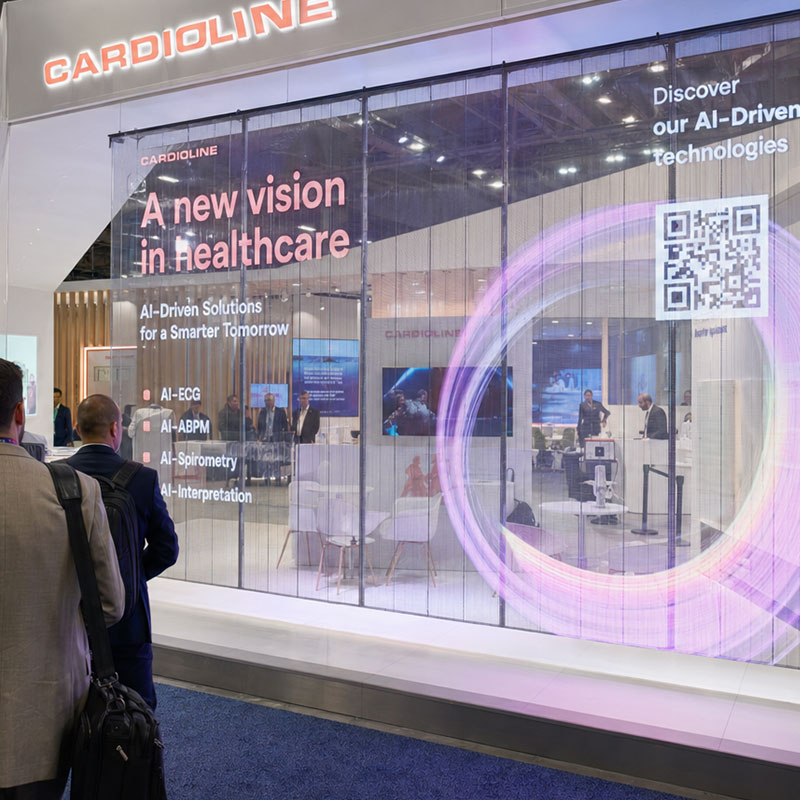

Exhibitions-&-Showrooms

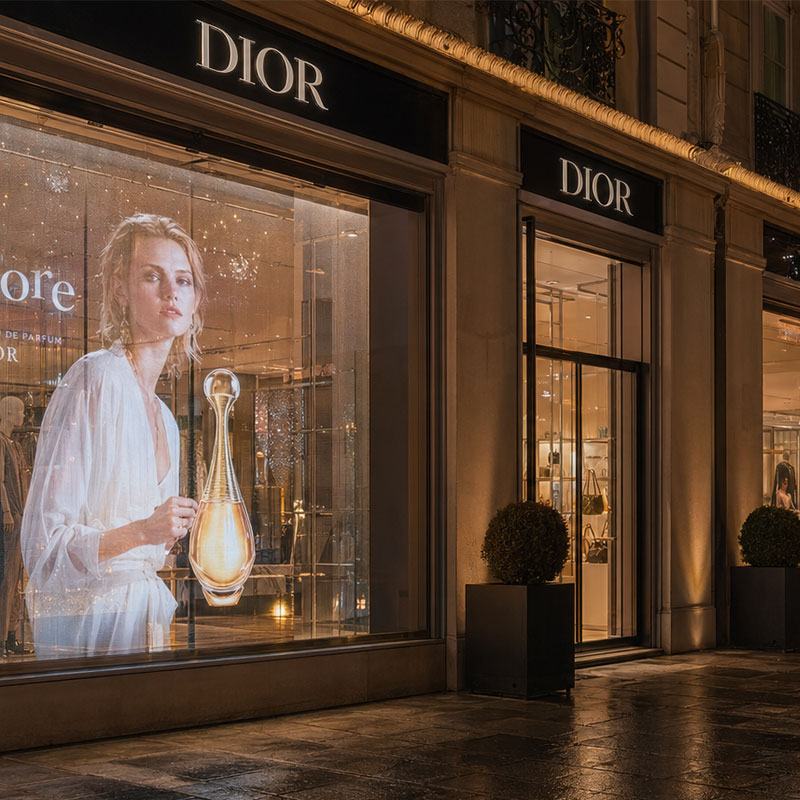

Retail-&-Commercial
