T Series Totem
Seamless Visual Experience
No bezels, no interruptions. Achieve a continuous, seamless display that enhances brand visibility and delivers a superior viewing experience.
Flexible & Customizable
Easily scalable for single-unit or multi-unit installations, the T Series offers adaptable options for various spaces and projects, from retail environments to large events.
T Series
Key Parameter
| Pixel pitch (mm) | P2.9 | P3.91 | P6.25 |
| Profile Dimension (mm) (w*h) | 1000x2400x73 | 2000x2400x73 |
| Transparency Rate | 90% |
| Brightness(cd/m²) | ≥3500（Black Body） |
What Is the T Series Totem?
The T Series LED display is a versatile, high-performance LED screen designed for commercial use. It offers seamless visuals with no bezel interruptions, unlike traditional LED screens. The modular design allows for flexible size customization, making it ideal for various applications, including trade shows, shopping malls, and sports arenas.
With its high resolution and vivid color output, the T Series delivers exceptional image quality in both permanent and temporary installations. Its easy installation and reliable performance make it the perfect choice for businesses and rental companies seeking efficient, eye-catching digital signage solutions.
Product Categories

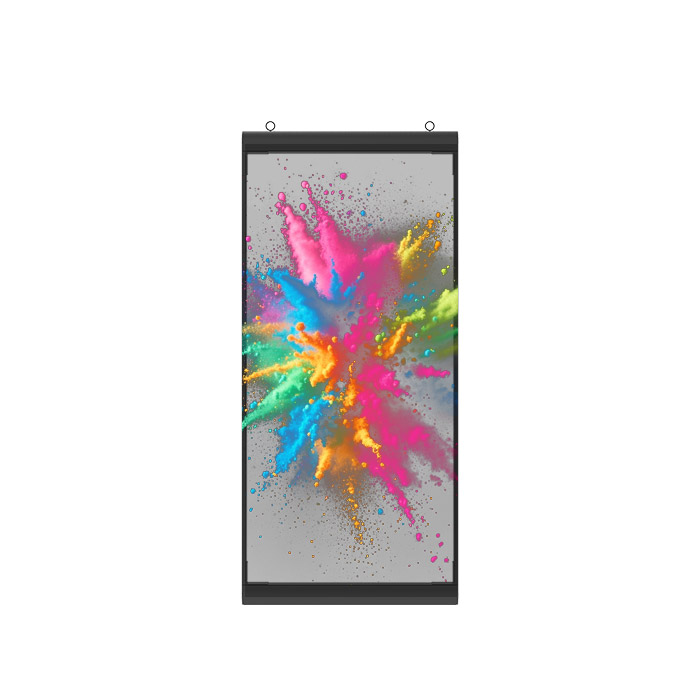

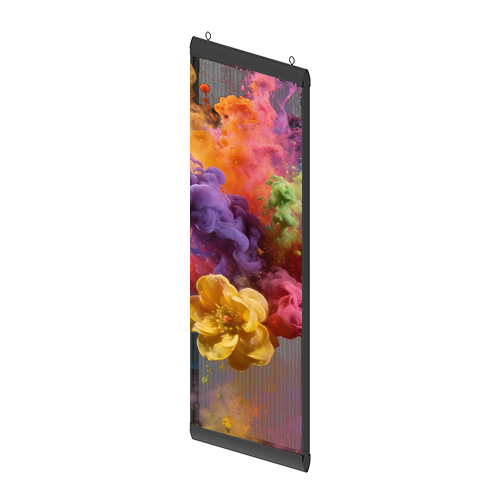

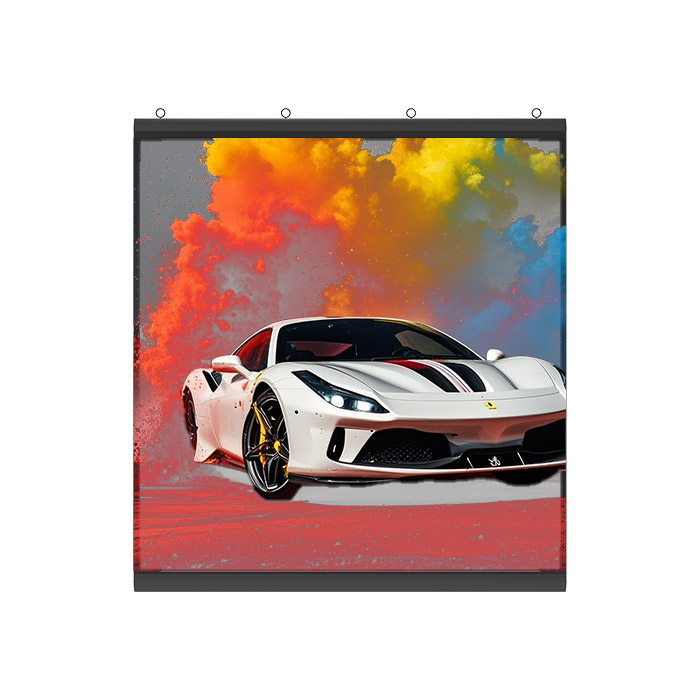

Hanging Installation LED Displays
Ideal for High-Impact Visuals in Open Spaces
Our Hanging Installation LED Displays are perfect for environments where visual appeal and flexibility are key. Designed for exhibition halls, retail spaces, and event venues, these displays offer high-quality, seamless visuals with a floating effect that captures attention.
Recommended Pixel Pitch: P2.9, P3.91, P6.25
Brightness Range: 3000-4000 cd/m²
Typical Applications: Trade shows, shopping malls, corporate events, and outdoor advertising.

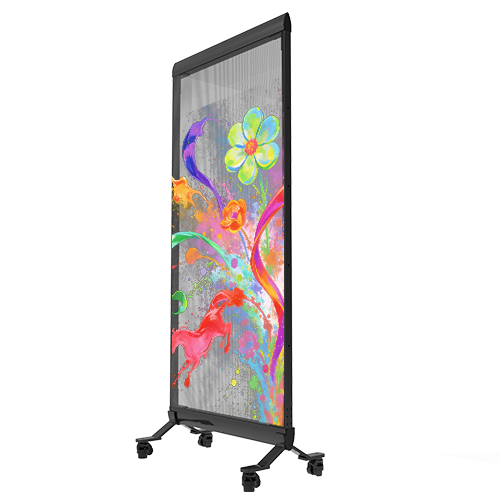

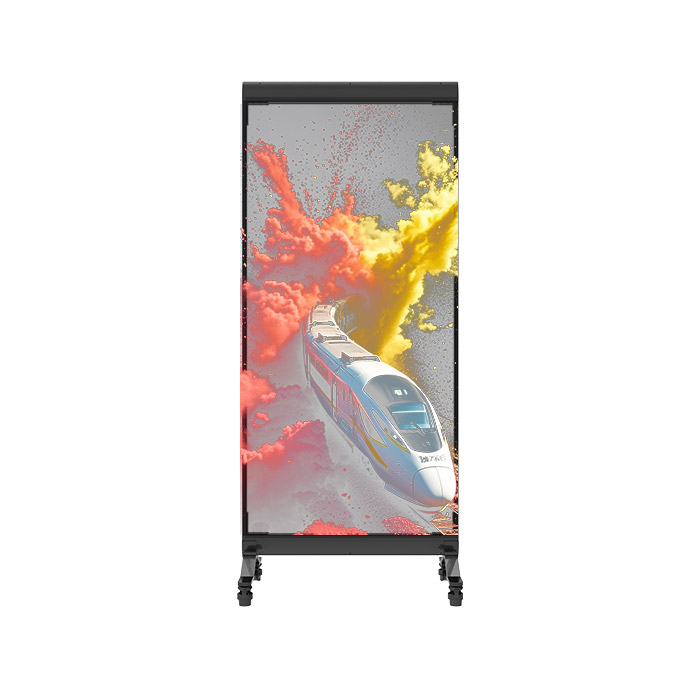

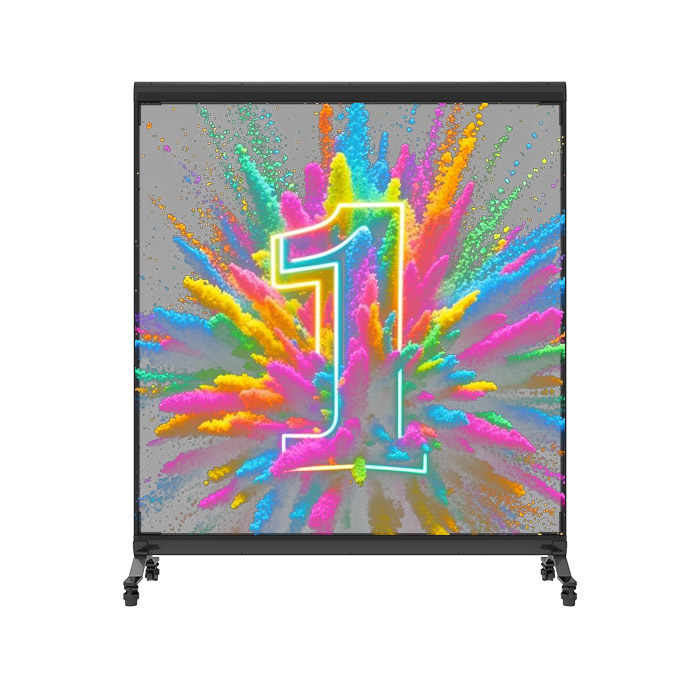

Ground-Based LED Displays with Wheels
Mobile, High-Performance Displays for Dynamic Environments
The Ground-Based LED Displays with wheels are designed for easy mobility and versatile use in temporary setups. Perfect for large-scale events, conferences, and pop-up displays, these displays ensure easy transportation without compromising on image quality.
Recommended Pixel Pitch: P2.9, P3.91, P6.25
Brightness Range: 3000-4000 cd/m²
Typical Applications: Concerts, sports events, rental companies, and outdoor exhibitions.
Key Features & Advantages
High brightness and strong contrast
Brightness up to 6000 cd/㎡
Contrast ratio reaching 9000:1
Plug-and-Play
Detachable and Easy to
Transport
Lightweight Frame Structure
Easy handling and installation, the frame is both strong and portable
Ultra-High Transparency
Seamless panel design with over 95% transparency.
Flexible Installation Options
Supports hanging, vertical, or combined installation.
HD Display Quality
Even pixel spacing, integrated light and driver, 16-bit grayscale.
Spatial Floating
Effect
3D Holographic Display with Floating Imagery
1.5mm Ultra Thin
Only 1.5mm thick for a sleek, lightweight design.

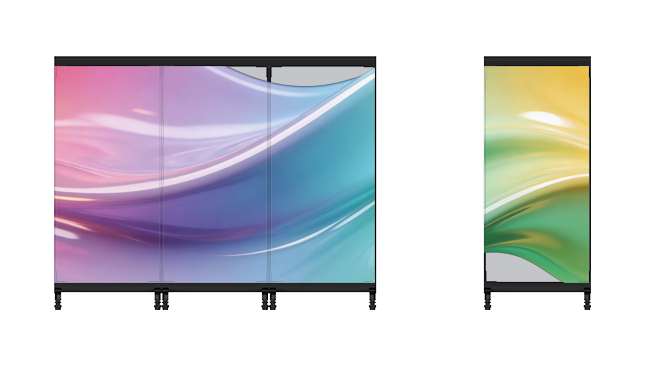

T Series Totem: Seamless and Versatile
The T Series offers a seamless visual experience, with multiple units cascading seamlessly to create one large display without visible gaps. Its flexible installation options, including hanging and mobile ground-based setups, make it perfect for any commercial environment, ensuring both easy setup and high-quality, consistent image performance.

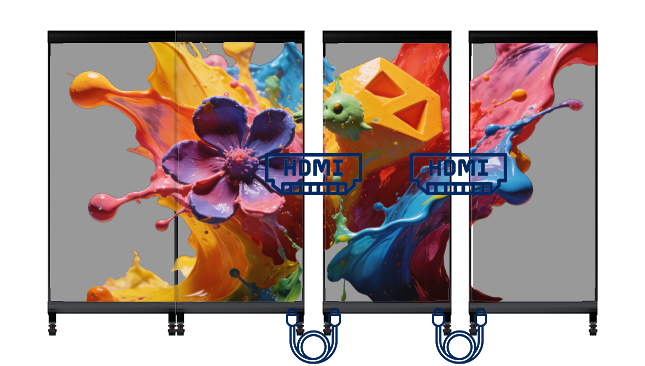

HDMI Plug-and-Play Operation
Direct HDMI input enables quick connection to media players, laptops, or PCs. The plug-and-play design simplifies setup, reduces installation time, and eliminates complicated configuration.
Customization Available
Supports customization of size, brightness, cabinet structure, and control systems to meet specific project requirements and diverse application scenarios.
Why Choose T Series?
-
Direct Factory Partnership
We offer a direct relationship with the manufacturer, ensuring streamlined communication, enhanced efficiency, and transparent pricing for all your projects. -
Tailored Solutions
Beyond standard sizes, we specialize in customizing cabinet dimensions, brightness, and control systems to meet the unique demands of each project, delivering a perfect fit for your environment. -
Rigorous Quality Control
Each display undergoes thorough testing for alignment, calibration, and operational performance, ensuring that only top-tier products reach your doorstep. -
International Standards Compliance
Our products are fully compliant with global certifications such as CE, FCC, ETL, and RoHS, guaranteeing reliability and safety for international markets. -
Comprehensive Long-Term Support
With clear warranty policies and dependable spare parts support, we are committed to protecting your investment long after installation.
InVisia T Series
| T Series (Integrated light drive) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model Size | T3 - 4 - 2 | T3 - 2 - 2 | T3L - 4 - 2 | T3L - 2 - 2 | ||||||||
| Pixel Pitch | 2.9 mm | 3.91 mm | 6.25 mm | 2.9 mm | 3.91 mm | 6.25 mm | 2.9 mm | 3.91 mm | 6.25 mm | 2.9 mm | 3.91 mm | 6.25 mm |
| Pixel Density | 112,896 dot/ m² | 65,536 dot/ m² | 25,600 dot/ m² | 112,896 dot/ m² | 65,536 dot/ m² | 25,600 dot/ m² | 112,896 dot/ m² | 65,536 dot/ m² | 25,600 dot/ m² | 112,896 dot/ m² | 65,536 dot/ m² | 25,600 dot/ m² |
| Visual Transparency | 80% | 90% | 80% | 90% | 80% | 90% | 80% | 90% | ||||

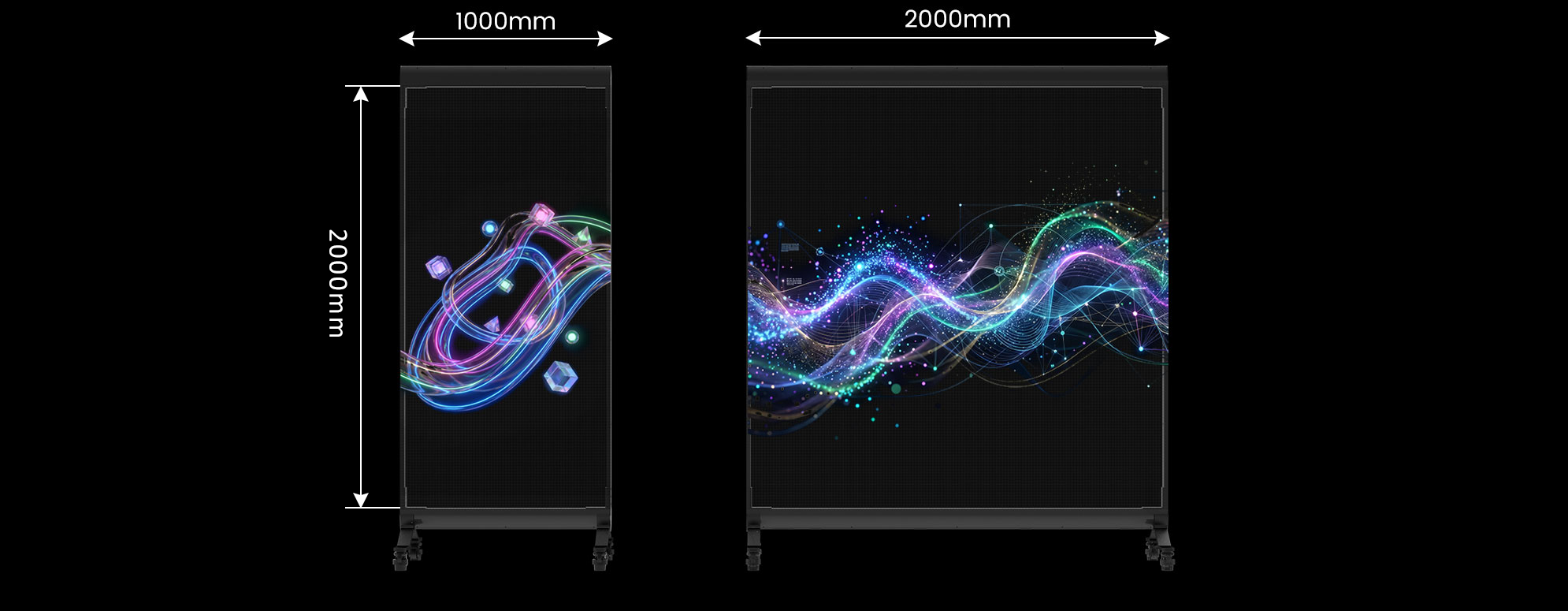

| Module Size | 2000 mm × 2000 mm | 1000 mm × 2000 mm | 2000 mm × 2000 mm | 1000 mm × 2000 mm | ||||||||
| Overall Module Size | 2000 mm × 2200 mm × 55 mm | 1000 mm × 2200 mm × 55 mm | 2000 mm × 2400 mm × 500 mm | 1000mm × 2400mm × 500 mm | ||||||||
| LED Type | 1818 | 2121 | 1818 | 2121 | 1818 | 2121 | 1818 | 2121 | ||||
| Weight | 33.44 kg | 31.84 kg | 31.2 kg | 20.82 kg | 19.92 kg | 19.59 kg | 43.44 kg | 41.84 kg | 41.2 kg | 26.82 kg | 25.92 kg | 25.59 kg |
| Resolution Ratio | 672 × 672 pix | 512 × 512 pix | 320 × 320 pix | 336 × 672 pix | 256 × 512 pix | 160 × 320 pix | 672 × 672 pix | 512 × 512 pix | 320 × 320 pix | 336 × 672 pix | 256 × 512 pix | 160 × 320 pix |
| LED Control System | Synchronous / Asynchronous | |||||||||||
| Brightness | 2500 nits | 4000 nits | 5000 nits | 2500 nits | 4000 nits | 5000 nits | 2500 nits | 4000 nits | 5000 nits | 2500 nits | 4000 nits | 5000 nits |
| Viewing Angle | Horizontal 160, Vertical 140 | |||||||||||
| Display Thickness | 1.5 mm | 1.8 mm | 1.5 mm | 1.8 mm | 1.5 mm | 1.8 mm | 1.5 mm | 1.8 mm | ||||
| Playback Control | NOVA T50 / Colorlight input: HDMI、WiFi、Bluetooth，Built-in Playback System，32GB of storage，Cloud Management | |||||||||||
| Resumable Transmission | √ | |||||||||||
| Average Lifespan | ≥ 100,000 hours | |||||||||||
| Gray Scale | ≥16 bit | |||||||||||
| White Field Color Temperature | 5500K-15000K (adjustable) | |||||||||||
| Atenuation Rate | 2 years below 0.05% | |||||||||||
| Average Fault-Free Working Time | ≥ 100,000 hours | |||||||||||
| Power Max/Average | 865 W/ m² / 340 W/ m² | 1200 W/ m² / 420 W/ m² | 1600 W/ m² / 640 W/ m² | 760 W/ m² / 270 W/ m² | 1200 W/ m² / 420 W/ m² | 1600 W/ m² / 640 W/ m² | 760 W/ m² / 270 W/ m² | 1200 W/ m² / 420 W/ m² | 1600 W/ m² / 640 W/ m² | 760 W/ m² / 270 W/ m² | 1200 W/ m² / 420 W/ m² | 1600 W/ m² / 640 W/ m² |
| Operation Temperature | -20℃～+50℃ | |||||||||||
| Working Humidity | 20% RH ~ 85% RH, no condensation | |||||||||||
| Storage Temperature | -20℃ ~+60℃ | |||||||||||
| Storage Humidity | 10%RH～85%RH，no condensation | |||||||||||
| Installation Method | Wall mount installation, glass adhesive, hanging, stacking, suitable for curved installations, supports cutting to any size | Vertical | ||||||||||
| Packaging Method | Cardboard Case/ Plywood Case / Flight Case | |||||||||||
| Certifications | CE, FCC, ETL, RoHS | |||||||||||
