SKYFLEX™ SERIES

Where Transparency Meets Performance

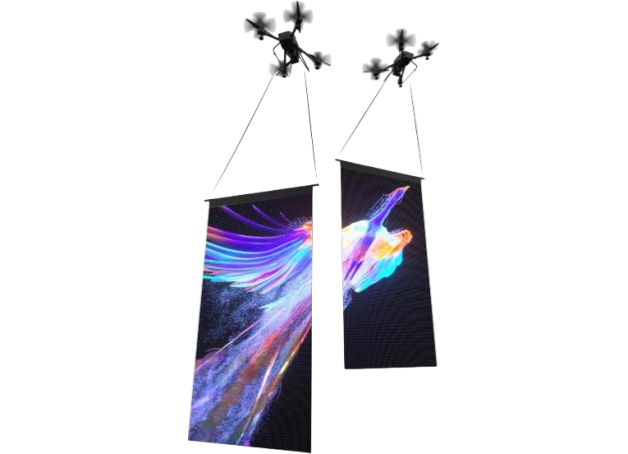

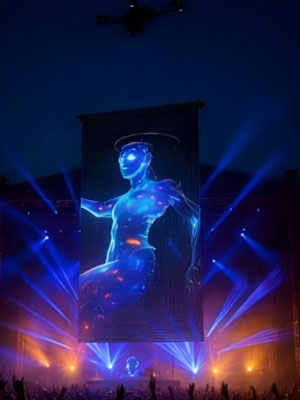

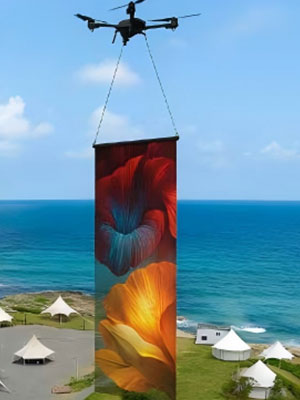

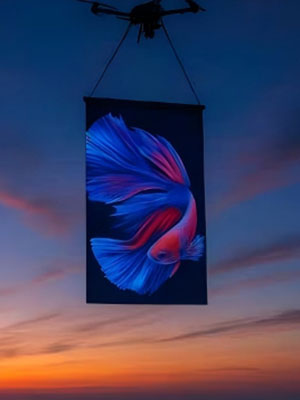

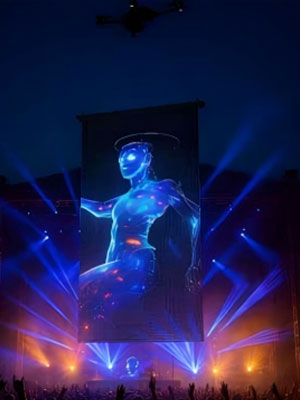

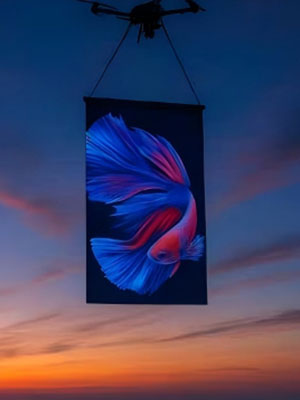

InVisia Displays SkyFlex is a flexible LED mesh display designed to be suspended in mid-air—most commonly by drones. Featuring a wind-permeable structure, SkyFlex delivers stable, eye-catching visuals in outdoor environments. It is ideal for drone light shows, artistic performances, aerial advertising, immersive brand activations, and cultural tourism events.

Key Features & Advantages

Super-lightweight design

Less than 1.2kg/ ㎡

Ultra-High Transparency

Up to 70% Transparency

Ultra-Thin

Less than 4mm

Drone Shows

Designed specifically for drone-mounted

Eco-friendly design

Perform responsibly

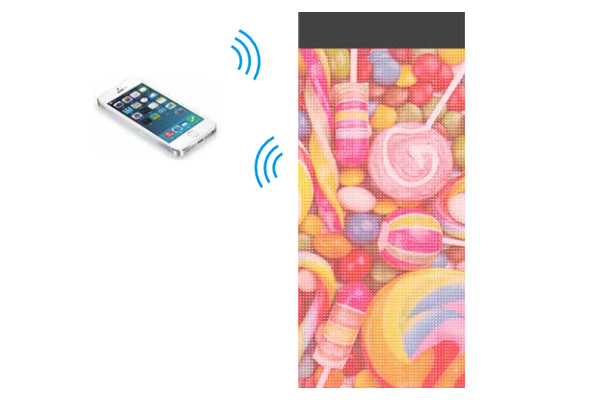

Smart Control

Supports APP/PC operation, WiFi+4G remote control, and single or multi-screen control.

Durable and Reliable

Mesh material, soft as cloth

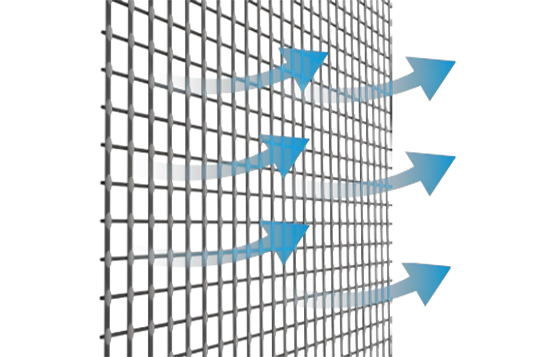

Wind Permeability

Up to 70% Transparency & Wind Permeability

Ultra-Light Flyable LED Display

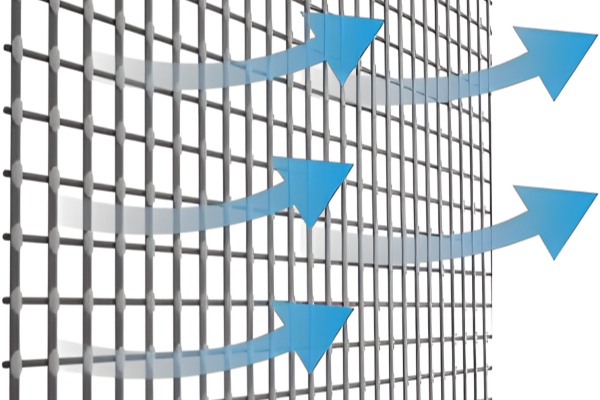

High Transparency & Wind Permeability

Up to 70% Transparency & Wind Permeability

Enjoy crystal-clear visuals with minimal wind resistance, perfect for low-altitude, outdoor drone performances.

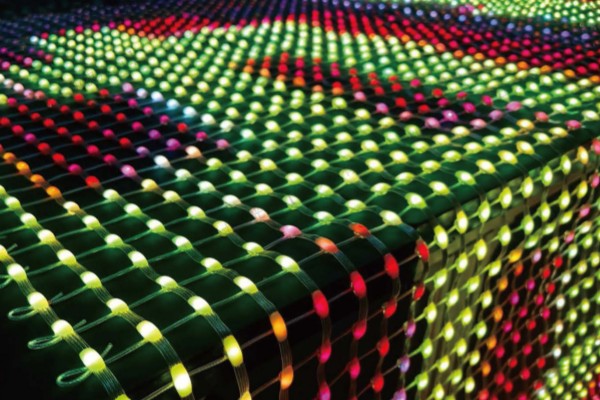

Durable and Reliable Performance

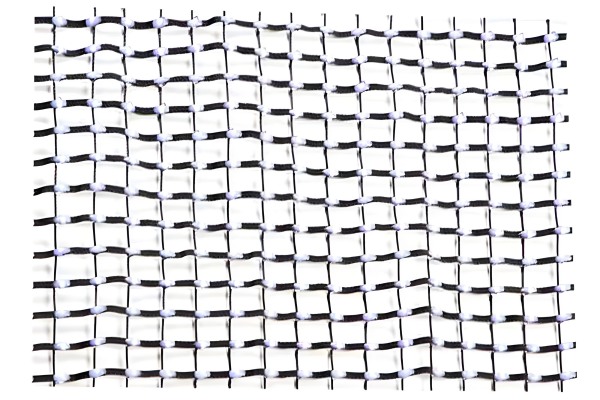

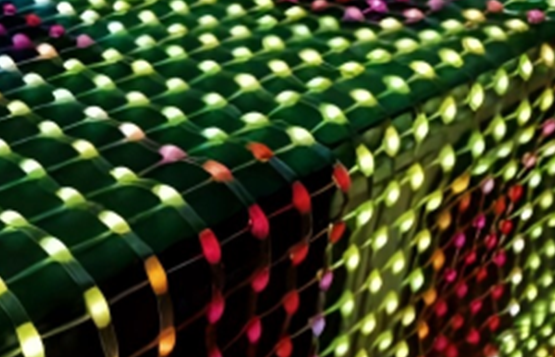

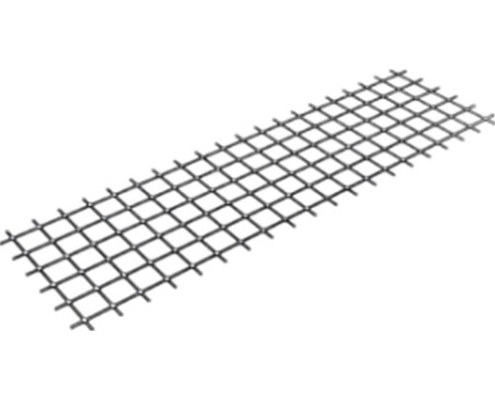

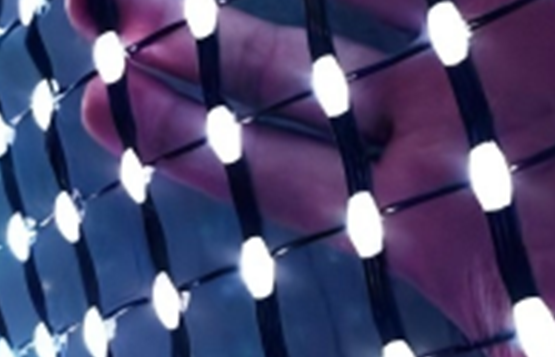

Made from high-transparency mesh material, soft as cloth, making it easy to transport and install.Patented alignment technology ensures uniform LED arrangement for Stability and high-quality visuals.

Ultra-Light and Ultra-Thin for Seamless Flight

Weight: Less than 1.2kg/ ㎡, significantly reducing drone load. Thickness: Less than 4mm, offering extreme thinness for versatile performances.

SkyFlex™ Brochure

SPECS

SKYFLEX™ SERIES SPECIFICATION

LED Screen on Drone Specification
Brightness	1,200 cd/m²	800 cd/m²	500 cd/m²
Pixel Pitch	P15	P20	P25
Pixel Density	4,356 dots/m²	2,500 dots/m²	1,600 dots/m²
Power consumption	100W/m²，30W/m²	60W/m²，24W/m²	40W/m²，20W/m²
Product form	Mesh weaving	Mesh weaving	Mesh weaving
Color	Full color	Full color	Full color
Grayscale adjustment level	65,536 levels (16bit)	65,536 levels (16bit)	65,536 levels (16bit)
Output voltage	DC5V (DC12V optional)	DC5V (DC12V optional)	DC5V (DC12V optional)
Supported video formats	MP4/MKV/AVI/MOV/3GP	MP4/MKV/AVI/MOV/3GP	MP4/MKV/AVI/MOV/3GP
Supported image formats	JPEG/GIF/ BMP/PNG	JPEG/GIF/ BMP/PNG	JPEG/GIF/ BMP/PNG
IP Level	IP54	IP54	IP54
Life Span	50,000 hours	50,000 hours	50,000 hours
Control system	Redfive/Novastar	Redfive/Novastar	Redfive/Novastar
Working Humidity	Relative humidity85%	Relative humidity85%	Relative humidity85%
Operating temperature	-20°℃~50°℃	-20°℃~50°℃	-20°℃~50°℃
Storage temperature	-40°℃~60°℃	-40°℃~60°℃	-40°℃~60°℃
Storage Humidity	Relative humidity85%	Relative humidity85%	Relative humidity85%
Usage environment	Indoor (Outdoor in the night)	Indoor (Outdoor in the night)	Indoor (Outdoor in the night)
Certificate	CE/RoHS/FCC	CE/RoHS/FCC	CE/RoHS/FCC

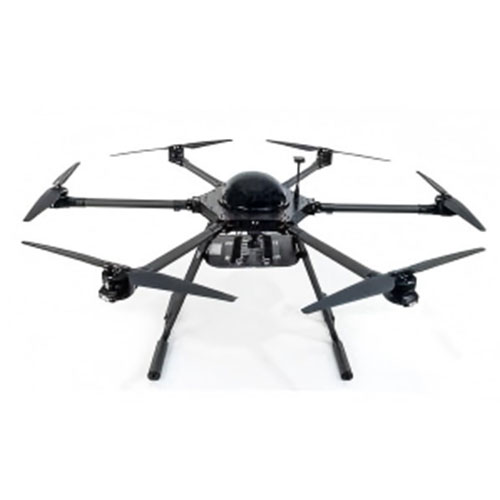

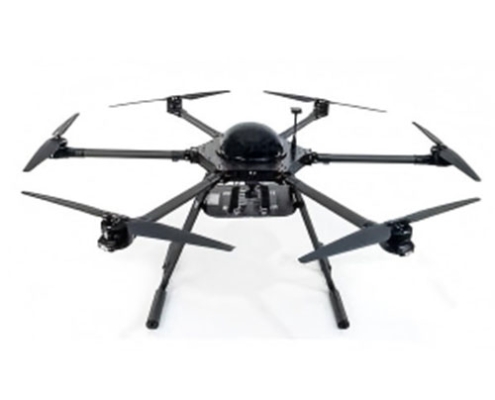

RF5 Drone Specification
Model	RF5 E10	RF5 E15	RF5 E25	RF5 E35	RF5 E50
No-load endurance	Max 40mins	Max 40mins	Max 40 mins	Max 40 mins	Max 40 mins
Load endurance	About 10-20mins	Abbut 10-20mins	About 10-20 mins	About 10-20 mins	About 10-20 mins
Flight speed	80km/hour	80km/hour100	100 km/hour	100 km/hour	100km/hour
Hovering accuracy	0.35m	0.35m	0.35 m	0.35 m	0.35m
			1,780×1,960×550mm	2,190×2,415×600mm	2,650×2,915×700mm
Folded size	400×400×450mm	450×450×500 mm	650×650×550 mm	750×750×600 mm	900×900×700 mm
			25 kg	35 kg	50 kg

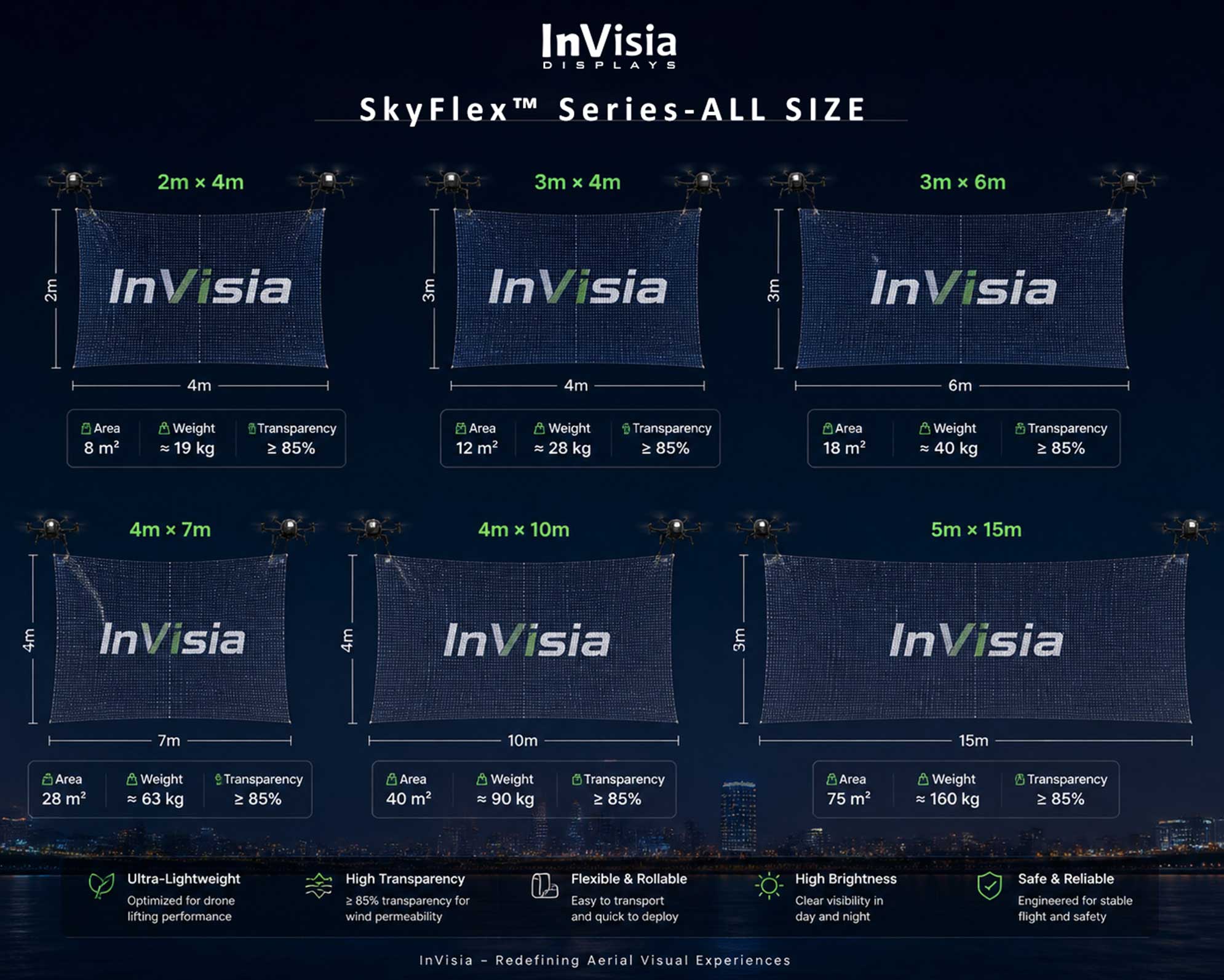

Suggested Magicsky size (H/V)	Popular size： 2×4m or less than 8sqm	Popular size： 3×4m or less than 12sqm	Popular size： 3×6m or less than 20sqm	Popular size： 4×8m or less than 32sqm	Popular size： 4×10m or less than 40sqm
Suggested pixel pitch	P15	P15	P20	P20	P20/P25

□ Add to compare □ Add to compare

All specifications are per panel and for reference only; actual values may vary. Max hanging/stacking capacities are valid only with official InVisia Displays hardware and proper ballast (for stacking), as detailed in manuals/reports. A safety factor of 8 applies. Climbing is permitted only as specified in the panel manual.
