Holographic Invisible LED Screen – T Series

  • Pixel Pitch: P2.9 / P3.9 / P6.25
  • Size: Customizable (standard options: 1*2 m, 1.5*2 m, 2*2 m(W*H))
  • Installation Methods: Standing, hanging
  • Seamless Splicing: Supports seamless connection between multiple units
  • Fire Safety: Zero fire risk with an exclusive circuit protection system
  • Industry-Leading Transparency & Brightness: Proprietary 4-layer PCB with 2oz copper and optimized mesh design delivers outstanding transparency and brightness.
  • 3D Visual Experience: Naked-eye 3D content help you to captivate audiences and win more projects.
  • Mobile Design with Caster Wheels: Each unit is equipped with four heavy-duty caster wheels, making it easy to move, position, or rearrange displays anytime—perfect for exhibitions, events, and retail spaces.
Inquiry Now

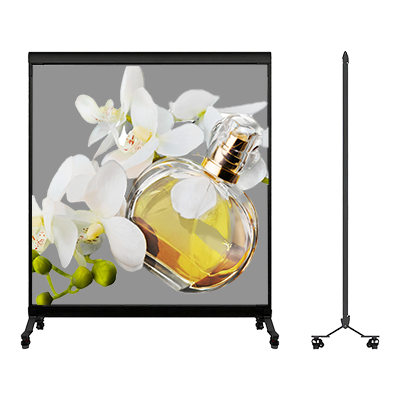

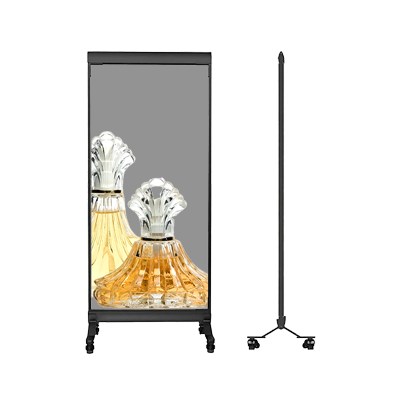

Innovative Structural Design for Any Installation

Whether standing on caster wheels for easy mobility or hanging for suspended presentation, InVisia transparent LED poster adapts to any environment with effortless setup.

T Series drawing

Never Catch Fire

InVisia’s advanced safety design completely eliminates fire risk, even in cases of module damage—a situation where common transparent LED displays often fail.

Our reinforced 4-layer PCB with 2oz copper, engineered for superior electrical stability and thermal management. Unlike standard 2-layer PCB that easily overheat at high brightness levels, InVisia’s design ensures cooler operation, longer lifespan, and guaranteed safety in every environment.

Get a Quote
T-Color characteristic

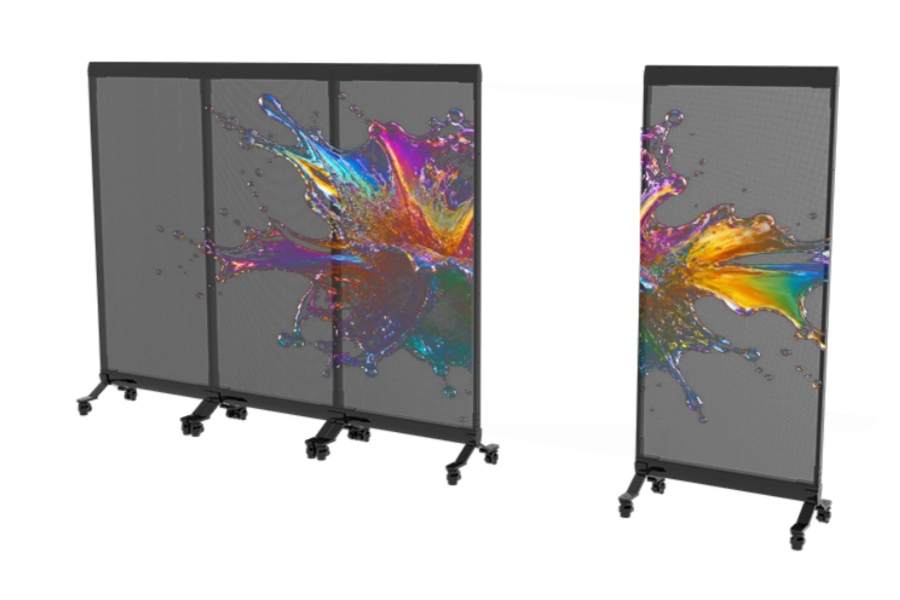

transparent LED poster t series

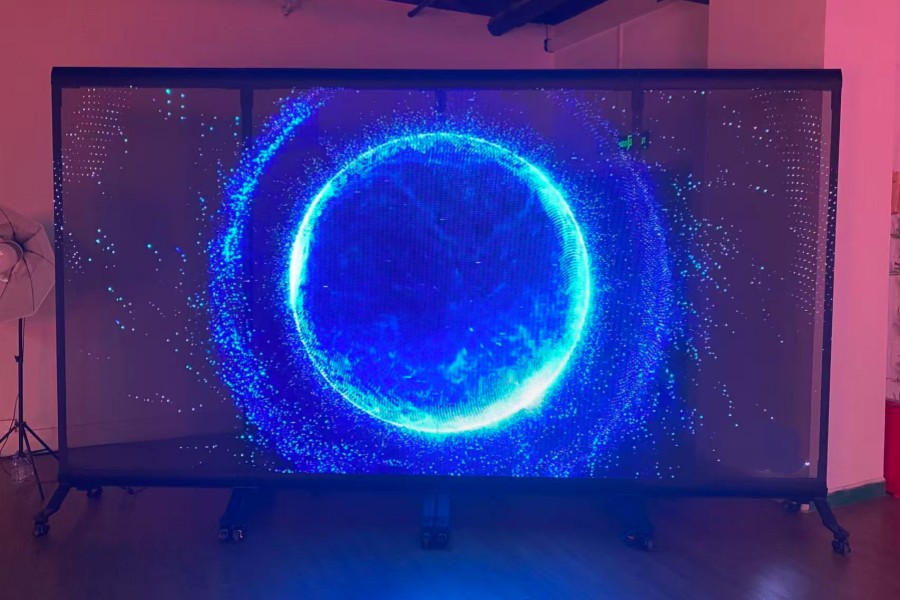

Seamless Splicing

T Series transparent LED poster has no limit on the number of units you can splice together. The maximum connection only depends on the controller box’s loading capacity, allowing you to create anything from a single-unit setup to a massive holographic video wall spanning dozens of screens. And the splicing is quick and effortless — simply connect, align, and power up.

Get a Quote

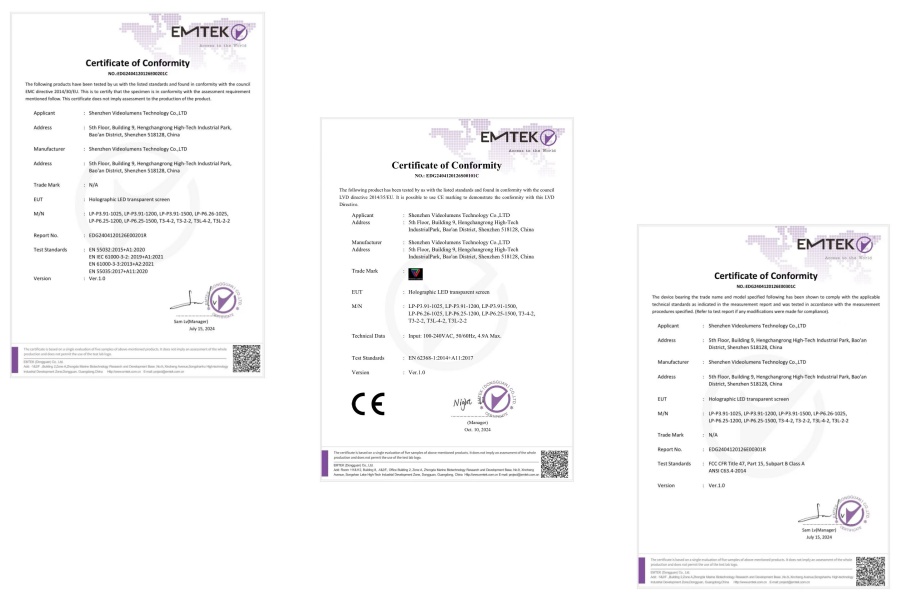

FCC & CE-EMC & ETL & RoHS Certificates

InVisia transparent LED screens are fully certified with CE, FCC, ETL, and RoHS. For LED display integrators and distributors, this means no certification barriers when delivering or installing in markets across Europe, North America, and beyond.

Certified displays also ensure a higher project acceptance rate, meeting the stringent standards of government, retail, and corporate clients.

InVisia-ETL-Certifacate
CE certificate
FCC certificate
EMC certificate

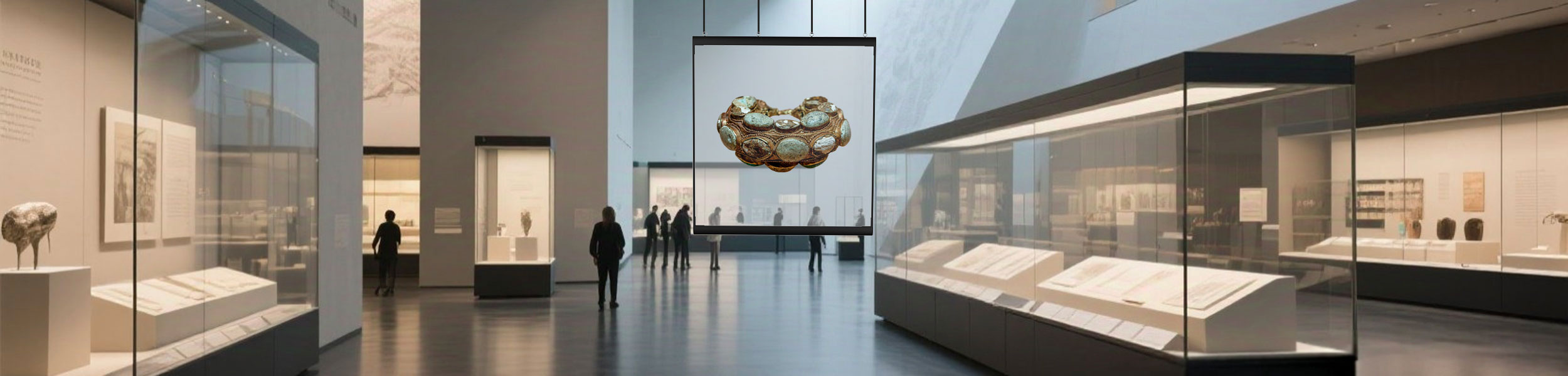

Wide Applications of Transparent LED Poster

T-Series holographic transparent LED poster delivers ultra-high transparency, ensuring an unobstructed view inside your store. With its exceptional brightness, the LED display remains vivid and sharp even under direct sunlight—capturing attention instantly and increasing dwell time.

It’s the perfect solution for retail stores, exhibitions, showrooms, and corporate spaces. Turn every glance into engagement. Contact us today to create a stunning visual experience that drives traffic and sales.

Get a Quote

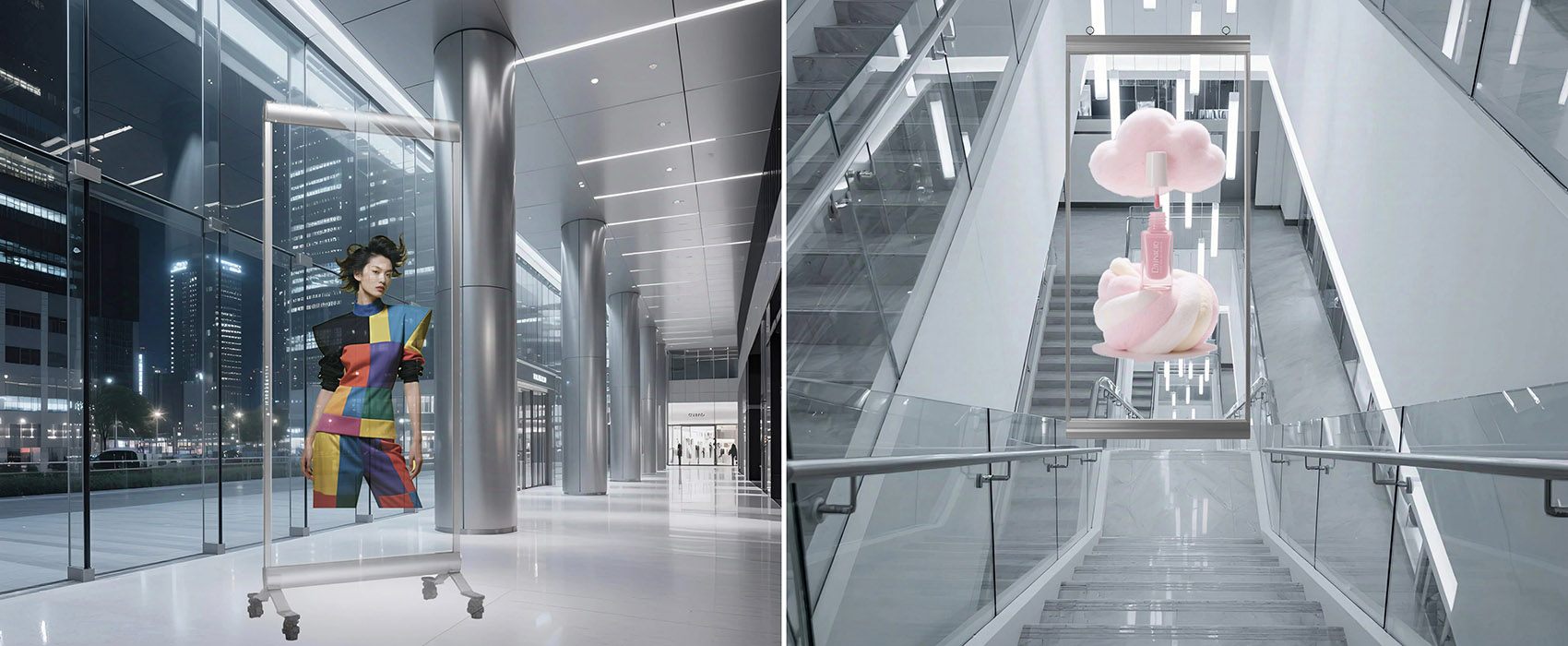

invisiadisplays join together

T Series (Integrated light drive)

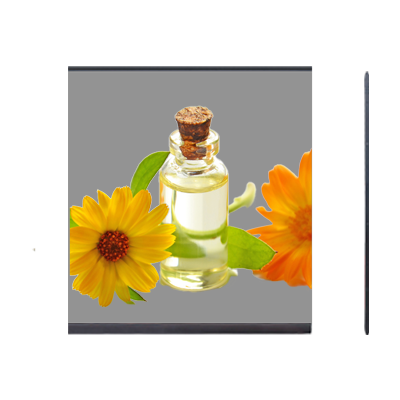

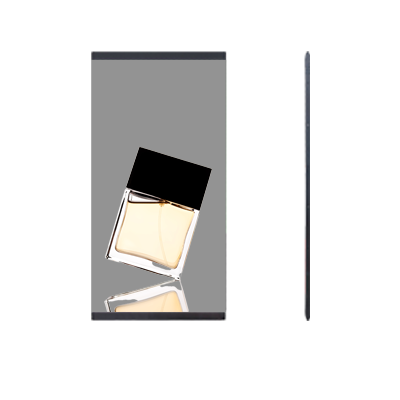

Model SizeT3 - 4 - 2T3 - 2 - 2
Pixel Pitch2.9 mm3.91 mm6.25 mm2.9 mm3.91 mm6.25 mm
Pixel Density112,896 dot/ m²65,536 dot/ m²25,600 dot/ m²112,896 dot/ m²65,536 dot/ m²25,600 dot/ m²
Visual Transparency75%80%90%75%80%90%
Display Size (W x H x D)2000 mm × 2200 mm × 55 mm1000 mm × 2200 mm × 55 mm
LED Type1818212118182121
Weight (Hanging / Floor standing）39.8 kg/49.84 kg31.84 kg/41.84 kg29 kg/39 kg23.92 kg/29.92 kg19.92 kg/25.92 kg17.5 kg/23.5 kg
Resolution Ratio672 × 672 pix512 × 512 pix320 × 320 pix336 × 672 pix256 × 512 pix160 × 320 pix
Control SystemSynchronous / Asynchronous
Brightness3500 nits4000 nits3500 nits4000 nits
Viewing AngleHorizontal 160, Vertical 140
Display Thickness1.5 mm1.8 mm1.5 mm1.8 mm
Playback ControlHDMI · WiFi · Bluetooth | Built-in Playback | 32GB Storage | Cloud Management
Resumable Transmission√
Average Lifespan≥ 100,000 hours
Gray Scale≥16 bit
White Field Color Temperature5500K – 15000K (Adjustable)
Atenuation Rate2 Years below 0.05%
Average Fault-Free Working Time≥ 100,000 hours
Power Max/Average( W/ m² )737 / 290772 / 2701600 / 640737 / 290772 / 2701600 / 640
Operation Temperature-20℃～+50℃
Working Humidity20% RH ~ 85% RH, no condensation
Storage Temperature-20℃ ~+60℃
Storage Humidity10%–85% RH (non-condensing)
Installation MethodWall mount installation, glass adhesive, hanging, stacking, suitable for curved installations, supports cutting to any size
Packaging MethodCardboard Case/ Plywood Case / Flight Case
CertificationsCE, FCC, ETL, RoHS

Transparent LED Screen Manufacturer

We offer flexible collaboration models tailored to partners, including distributors, integrators, and brand owners. Our full-cycle support covers customization, technical service, and after-sales. Meanwhile, our LED holographic displays support various business models, such as distribution, ODM/OEM, and project-based deployment.

2026 New LED Displays Price Check

Get a customized quote that fit your plan !

Send us mail

3 + 2 = ?

FAQ

There is no MOQ requirement for transparent LED displays.

Standard holographic screens are typically ready to ship within 7 working days after order confirmation.
For custom sizes or configurations, lead time may vary depending on project requirements.
Please contact our sales team for the latest production schedule.

All InVisia transparent LED displays come with a 2-year international warranty covering manufacturing defects.
We also provide lifetime technical support and fast replacement service for essential components to ensure long-term reliability.

We offer global shipping via air, sea, or express (DHL / SF Express).
Each LED display is professionally packed in shockproof and moisture-proof cases to guarantee safe arrival.

Absolutely. InVisia provides fully customizable options, including screen dimensions, frame materials, brightness levels, and pixel pitch.
Our sales engineers will recommend the best configuration based on your project’s space, design, and viewing requirements.
