ViTra Lite
Transparent LED for Flexible Installations & Light Rental

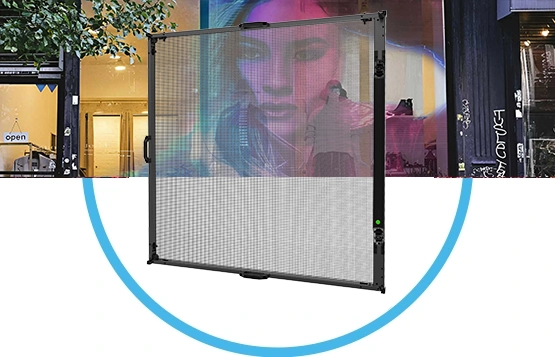

ViTra Lite is a 6.75 kg/cabinet lightweight transparent LED display. Designed for exhibitions, light rental, and permanent installations requiring greater screen height. ViTra Lite provides a practical transparent LED solution that is easy to transport, install, and maintain.
Key Features & Advantages
Curved Installation
Curve range: 0° / ±5° / ±10°
Ultra-High Transparency
P6.25: 95%Transparency; P3.9: 85%Transparency;
Flexible Rigging
Hang it. Stack it. Done.

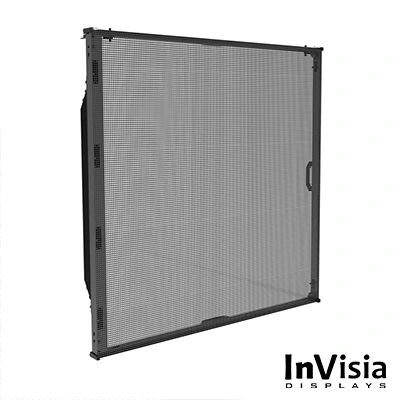

Ultra-Lightweight Cabinet
6.75 kg per 1 × 1 m cabinet

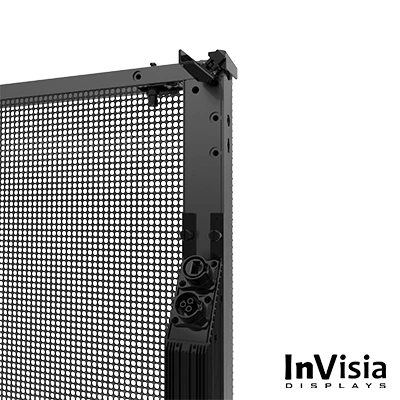

Corner Protector
Road-ready, every time
Exclusive Circuit Protection
Multiple protection design to ensure safe and stable operation
External Handles
Excellent grip for effortless handling
Modular Power Box
Swap. Done. Back on stage.
Transparent Mesh LED Displays
Ultra-Lightweight Cabinet
At 6.75 kg per 1 × 1 m cabinet, ViTra Lite is easy for crews to carry, install, dismantle, and transport. Less weight means easier handling and lower demands on transportation and rigging.
Easy Maintenance

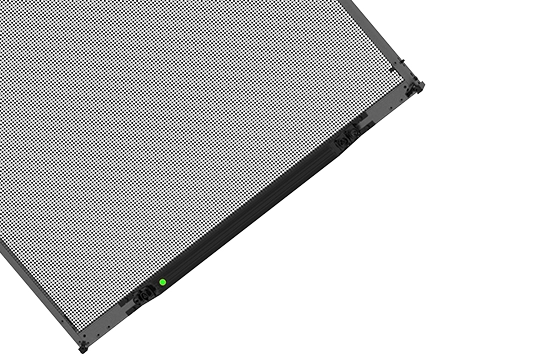

The detachable power box allows power supply and receiving cards to be accessed and replaced independently. This means simpler maintenance and less downtime when servicing equipment on site.
Built for Flexibility. Designed for Value.
The integrated hanging and ground-stacking structure supports multiple installation scenarios, from suspended stage backdrops to standing commercial displays.

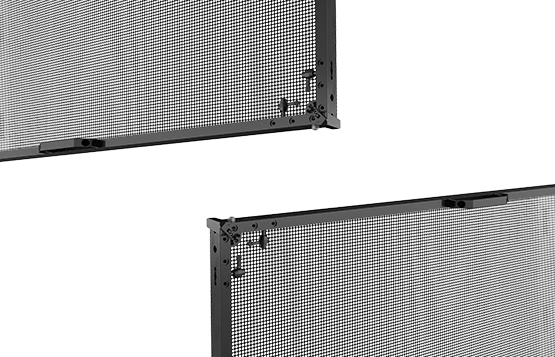

Corner protection reduce damage to LEDs caused by bumps during transportation and assembly, making this transparent LED rental solution reliable for long-term and repeated use.
VITRA SERIES SPECIFICATION
| Model | ViTra Lite 3.91 | ViTra Lite 6.25 |
|---|---|---|
| Pixel Pitch | 3.91 mm | 6.25 mm |
| Black LED Brightness | 2000-2500nits | 2000-2500nits |

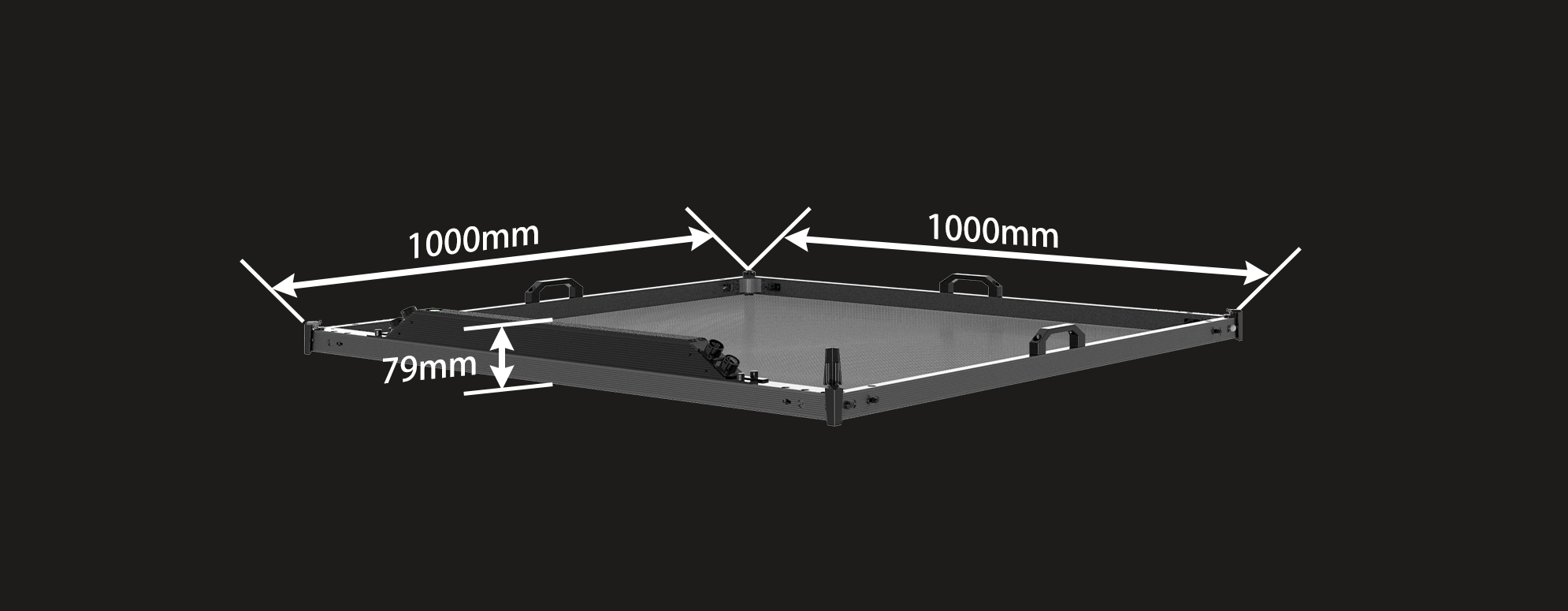

| Panel Dimension | 1000mm x 1000mm x 79mm 39.4” x 39.4” x 3.11” | 1000mm x 1000mm x 79mm 39.4” x 39.4” x 3.11” |
| Panel Resolution (H x V) | 256 x 256 | 160 x 160 |
| Weight Per Panel | 7.2kg | 15.87 lbs | 6.75kg | 14.33 lbs |
| Power Max. / Avg. (Watts / m2) | 550W / 220W | 504W / 168W |
| Transparency | 80% | 90% |
| Serviceability | Full panel service | Full panel service |
| Curving (Concave & Convex) | Concave 5° ~ Convex 5° | Concave 5° ~ Convex 5° |
| Viewing Angle | Horizontal 160, Vertical 140 | Horizontal 160, Vertical 140 |
| Gray Scale | 16bit | 16bit |
| Operational Temp/Humidity | '-20°C ~ 50°C, 10% ~ 90% RH -4°F ~ 122°F, 10% ~ 90% RH | '-20°C ~ 50°C, 10% ~ 90% RH -4°F ~ 122°F, 10% ~ 90% RH |
| Storage Temp/Humidity | '-40°C ~ 60°C, 10% ~ 90% RH -40°F ~ 140°F, 10% ~ 90% RH | '-40°C ~ 60°C, 10% ~ 90% RH -40°F ~ 140°F, 10% ~ 90% RH |
| IP Rating | IP30 | IP30 |
| Certifications | CE EMC RoHs ETL FCC | CE EMC RoHs ETL FCC |
| Display Thickness | 1.8mm | 1.8mm |
| Playback Control | NOVA T50/Colorlight input:HDMI、WiFi、Bluetooth，Built-in Playback System，32GB of storage，Cloud Management | NOVA T50/Colorlight input:HDMI、WiFi、Bluetooth，Built-in Playback System，32GB of storage，Cloud Management |
| Resumable Transmission | √ | √ |
| Average Lifespan | ≥ 100000 hours | ≥ 100000 hours |
| LED Type (Package) | SMD 1515 | SMD 2121 |
□ Add to compare □ Add to compare
All specification values given are per panel. The specifications are for reference only; actual values may vary. The max. The hanging amount is only valid when official InVisia Displays hardware parts are used. The safety factor is 8. Climbing is only allowed if stated in the panel manual and only following the rules given therein. The max. The stacking amount is only valid when official InVisia Displays hardware parts are used and when sufficient ballast is applied – following the rules as stated in the panel manual and/or structural report.
