MONOVIEW SERIES

See More. Spend Less.

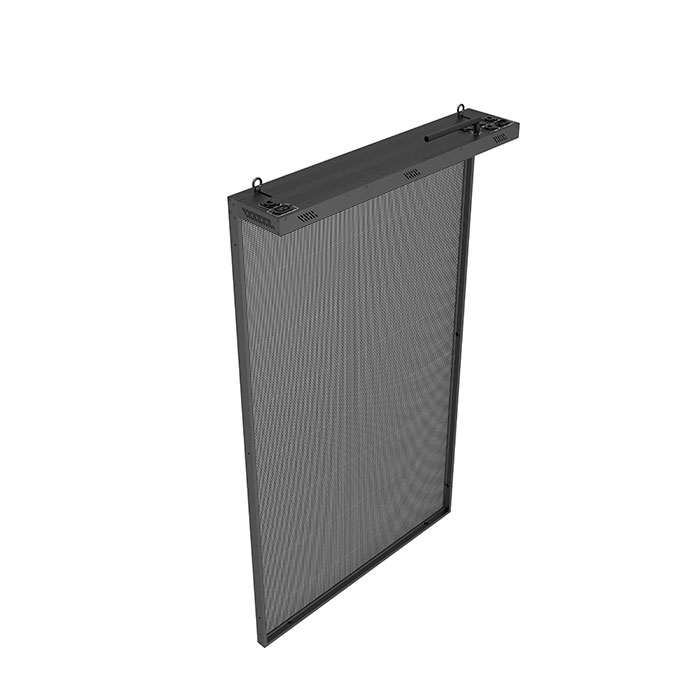

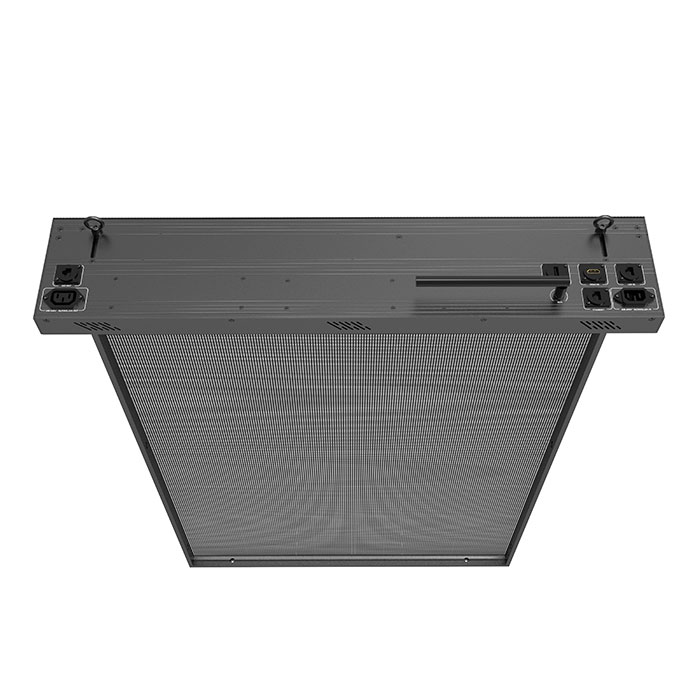

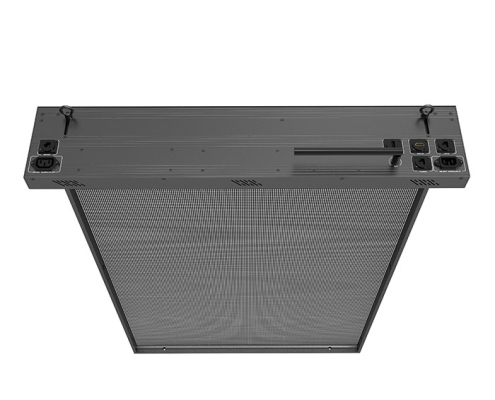

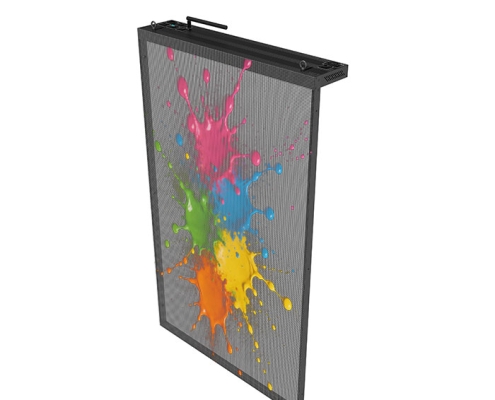

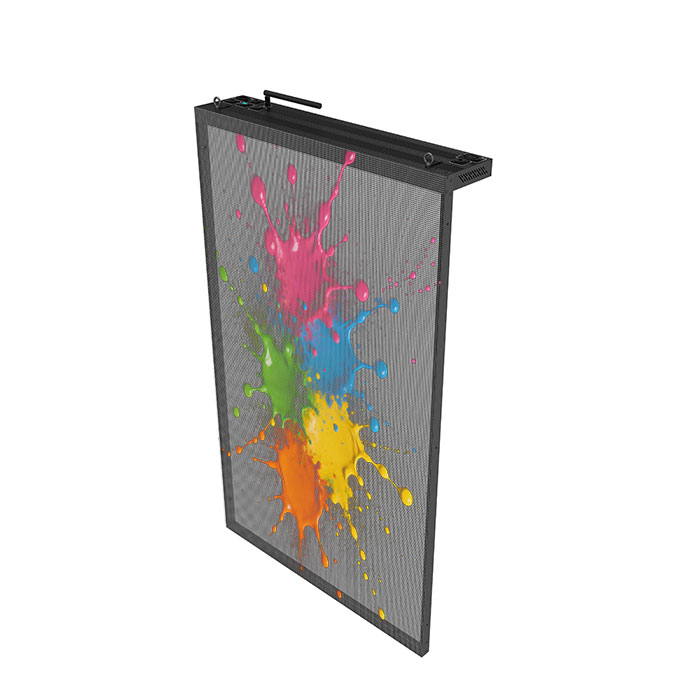

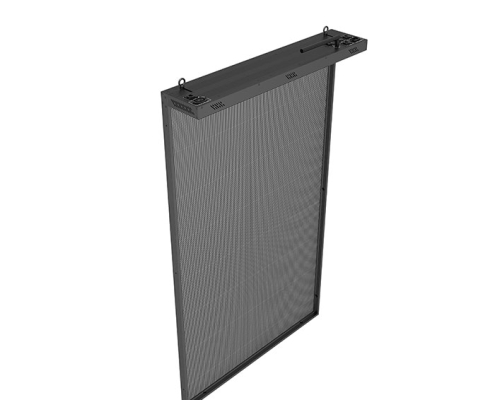

The MonoView Series Holographic Transparent LED Screen is a premium all-in-one digital signage solution, featuring a full-LEDs front surface and separated driver IC. It supports both suspended and freestanding installations.

Key Features & Advantages

Seamless Display Expansion

Seamless splicing for larger displays without visible gaps

All-in-One Design

Built-in media player. No external controller required, plug & play

Separated Driver lC

Driver lC on PCB, better heat dissipation, and lower cost

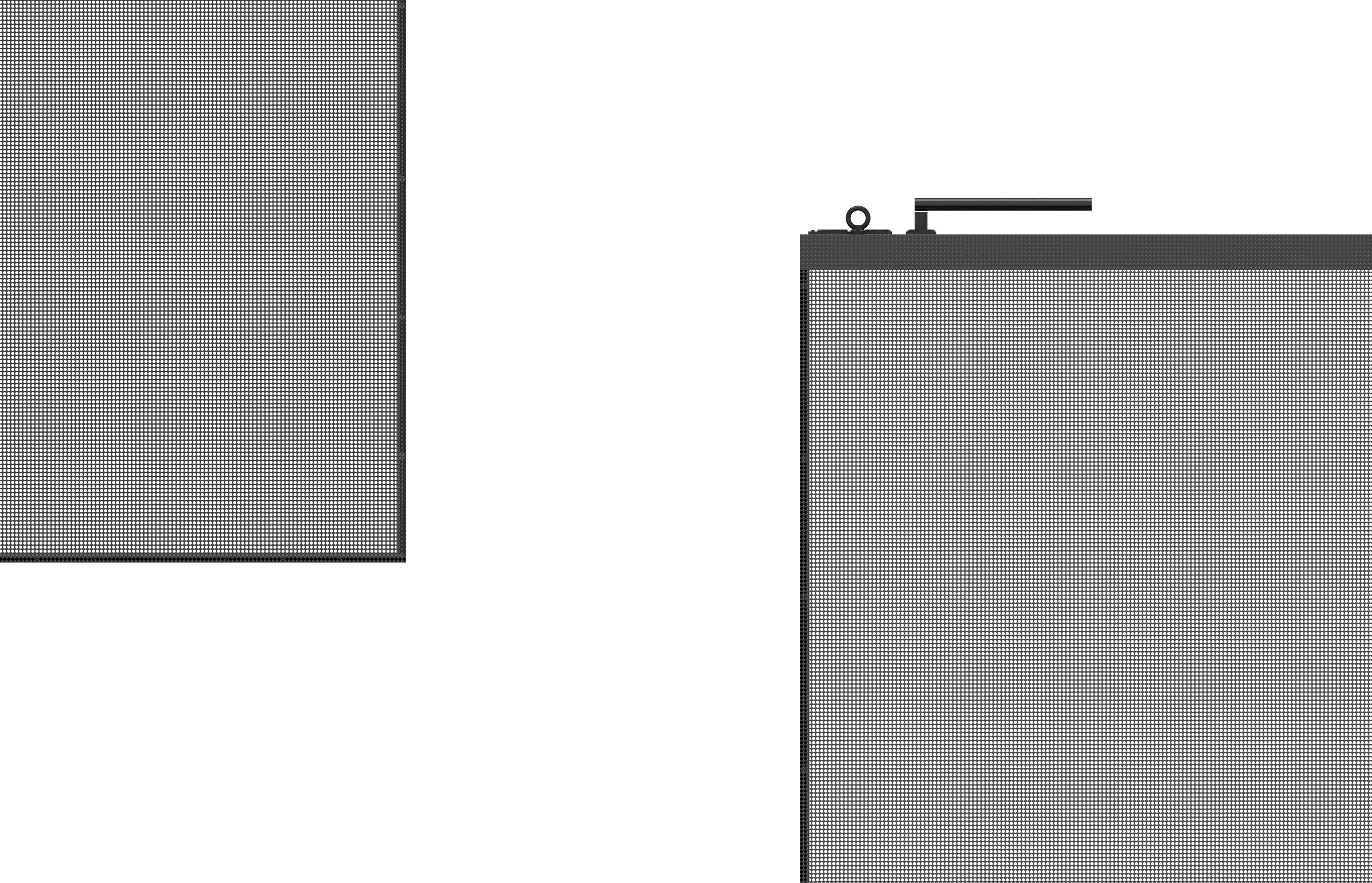

Full-LEDs Surface

Display every inch of the front area, Create a cleaner appearance

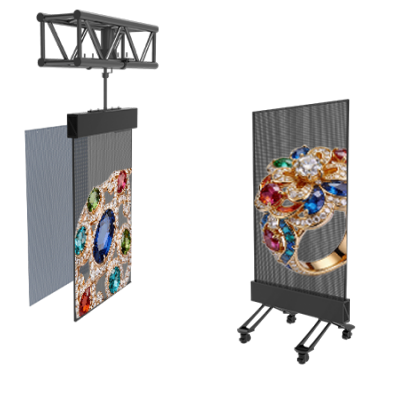

Optional Mobile Totem

Add wheels for easy mobility. ldeal for rental, promotions and temporary events

4-layer PCB & 2oz Copper

Stronger current-carrying capacity, effectively reducing voltage drop and heat generation

Exclusive Circuit Protection

Multiple protection design to ensure safe and stable operation

High-contrast display

High contrast with excellent transparency for stunning visual performance

Full-LEDs Transparent LED Display

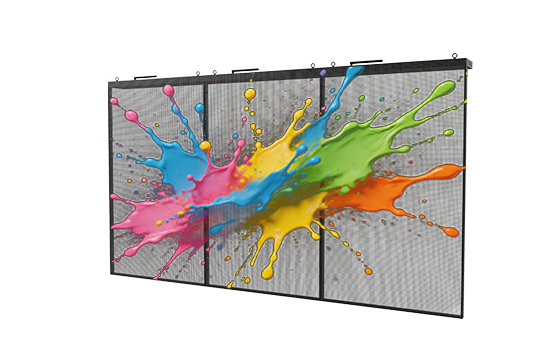

Create Larger Displays Without Visible Gaps

MonoView can be seamlessly combined to create wider video walls while maintaining a continuous image across multiple units. This allows you to scale your display to match virtually any commercial space.

Built-in-Media-Player-monoview-description

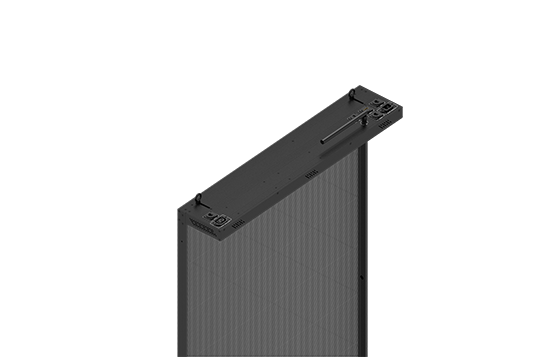

Built-in Controller for Plug-and-Play Deployment

MonoView features a fully integrated all-in-one design with a built-in NovaStar TB20 Plus controller. No external sending box is required, resulting in a cleaner installation and fewer external connections.

Borderless Front View for Maximum Visual Impact

MonoView features a full-surface LED design that maximizes the effective display area. Viewed from the front, the display presents a clean, nearly borderless appearance.

MonoView Brochure

Spes

MONOVIEW SERIES SPECIFICATION

Product Series	MonoView Series
Pixel Pitch	3.91
Pixel Density	65,536 dots/m²
Visual Transparency	70%
LED module size（mm）	250 x 1250

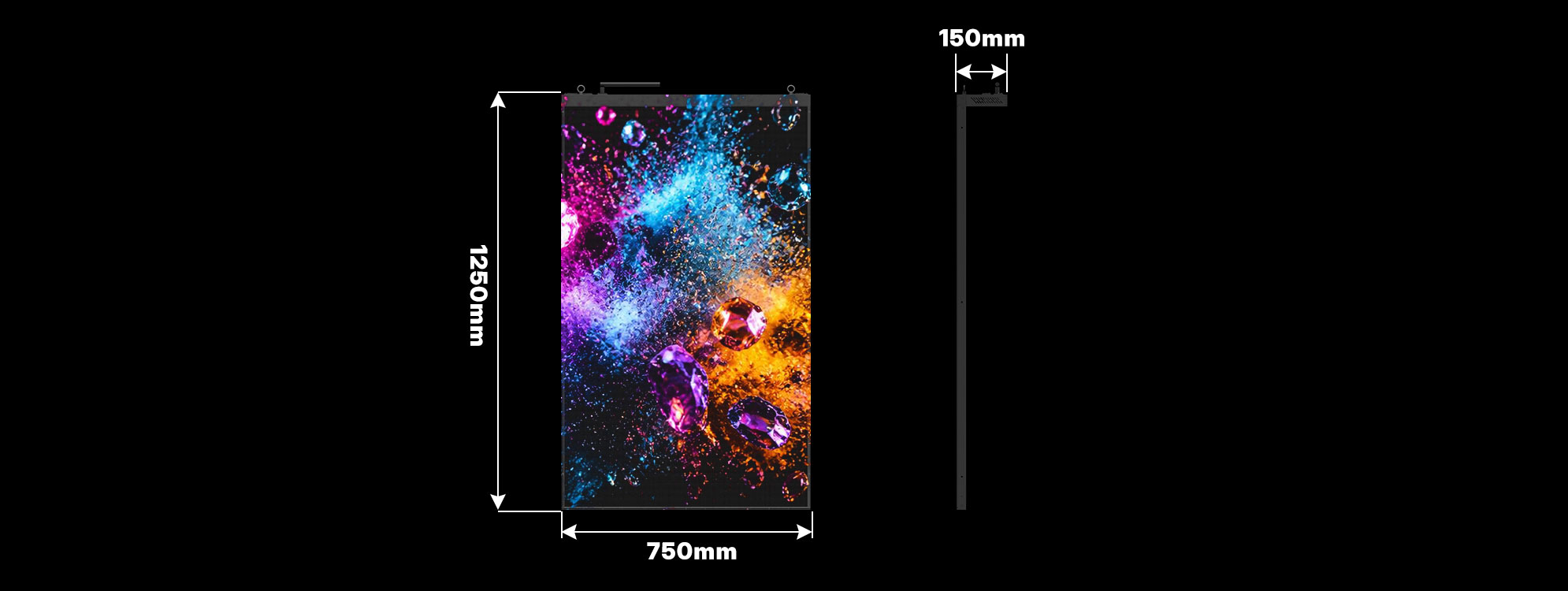

Cabinet Dimensions	750mm×1,250mm×154mm / 29.53" × 49.21" × 6.06"
LED Type	SMD 1415
Weight (Banner Type)	6.4 kg
	14.1 lb
Resolution (H x V)	192x320 pix
LED Control System	Synchronous / Asynchronous
Control System Compatibility	NovaStar
Brightness (Based on Black LED Standard)	3,500 nits
Viewing Angle	Horizontal: 160° / Vertical: 140°
LED Module Thickness (mm)	2.8
Refresh Rate	≥7,680 Hz
Frame Material	Aluminum Alloy

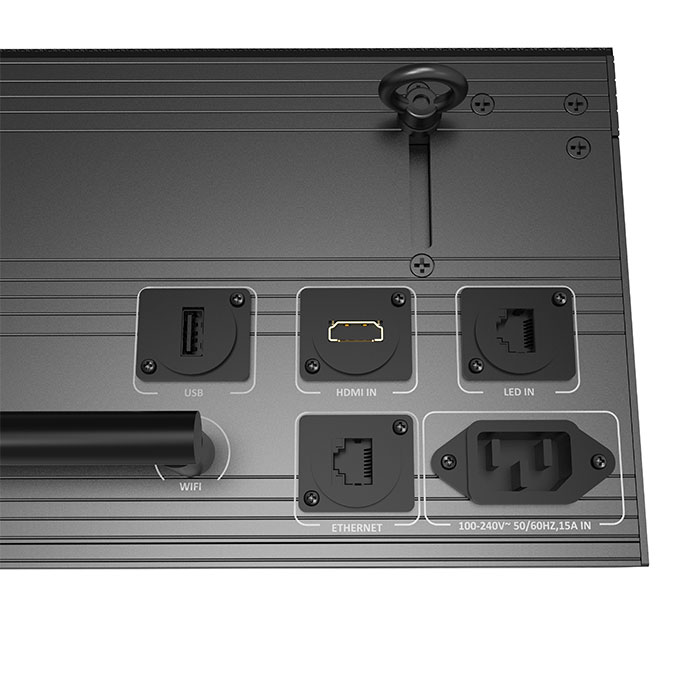

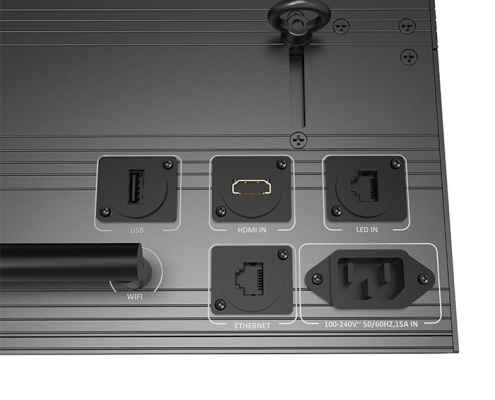

Playback Control	Control Inputs: HDMI, WiFi, Bluetooth; Built-in Media Player: 32GB storage; Cloud Management Supported
Average Lifespan	≥ 100,000 Hours
Gray Scale	≥16 Bit
White Field Color Temperature	5,500K-15,000K (Adjustable)
Atenuation Rate	2 Years below 0.05%
Power Max. / Avg. ( Watts / set )	452 / 151
Drive Mode	Dynamic Scan 1/16 Scan
Operation Temperature	-20°C to +50°C
Working Humidity	20%–85% RH (non-condensing)
Storage Temperature	-20°C to +60°C
Storage Humidity	20%–85% RH (non-condensing)
Installation Method	Hanging
Packaging Method	Cardboard Case/ Plywood Case
Certifications	CE, EMC, RoHs, ETL, FCC

□ Add to compare □ Add to compare

All specifications are per panel and for reference only; actual values may vary. Max hanging/stacking capacities are valid only with official InVisia Displays hardware and proper ballast (for stacking), as detailed in manuals/reports. A safety factor of 8 applies. Climbing is permitted only as specified in the panel manual.

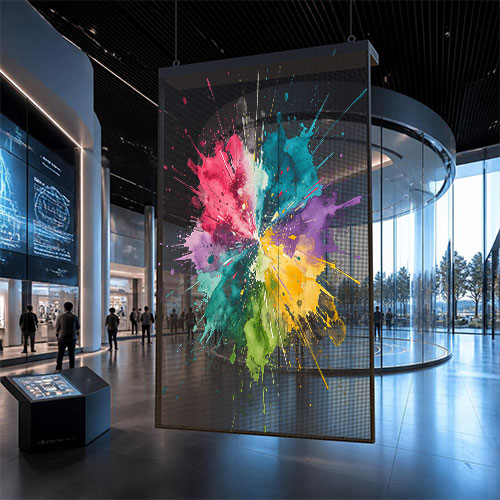

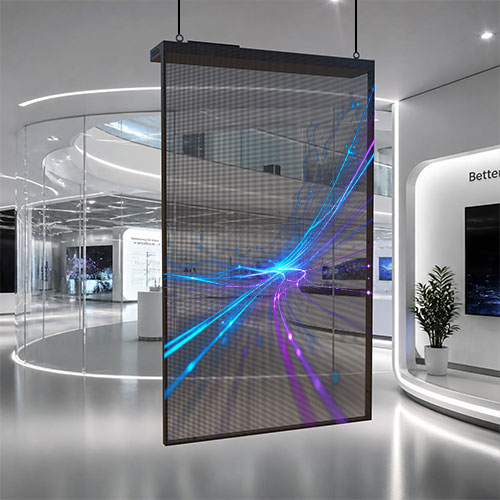

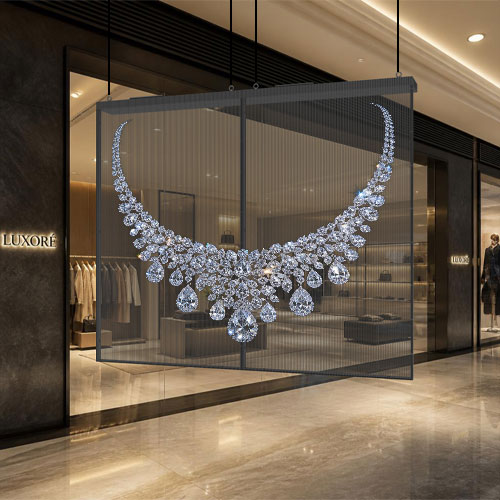

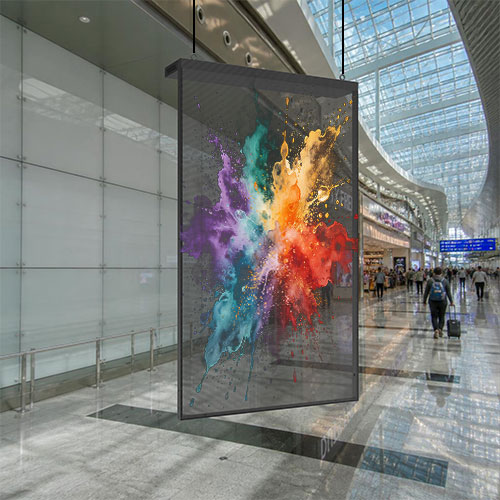

Applications

MonoView is specifically designed for single-sided commercial advertising. By adopting a separated driver IC architecture, MonoView reduces component costs while maintaining excellent display performance, making it a more cost-effective solution for many retail and commercial projects.
