Elevating Every Presentation
Built-in wheels allow effortless movement and flexible deployment.
Customizable socket system supports different country standards worldwide.
Standardized flexible modules enable seamless assembly and easy maintenance.
Adaptive lifting structure fits different stage and reception scenarios.
High-precision alignment ensures a smooth and professional display surface.
Modular architecture enables fast installation and efficient on-site setup.
Quick front access design simplifies repair and reduces downtime.
Designed for continuous operation in high-traffic corporate and event environments.

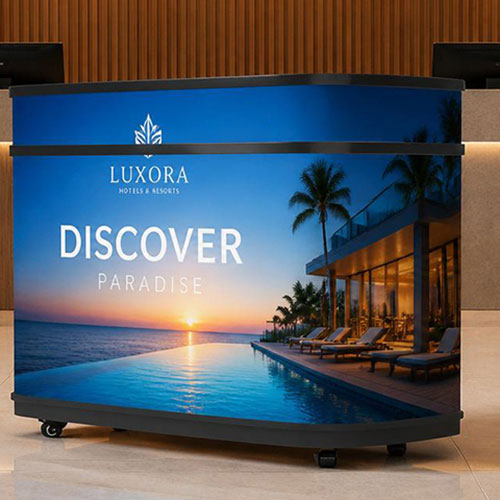

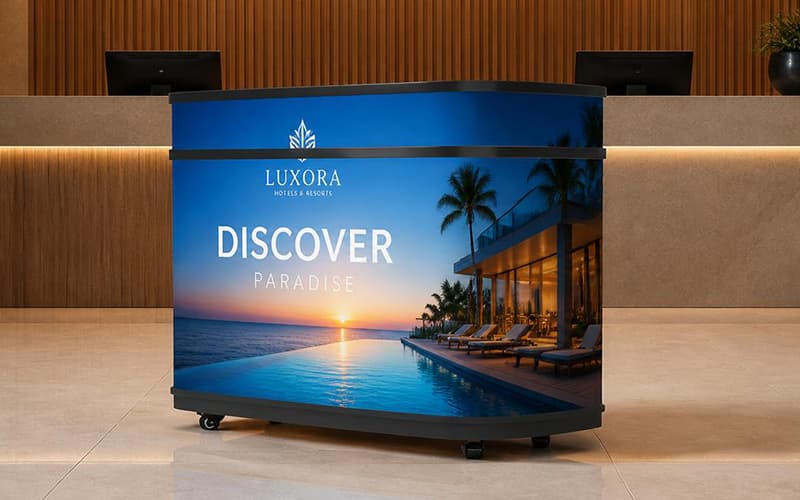

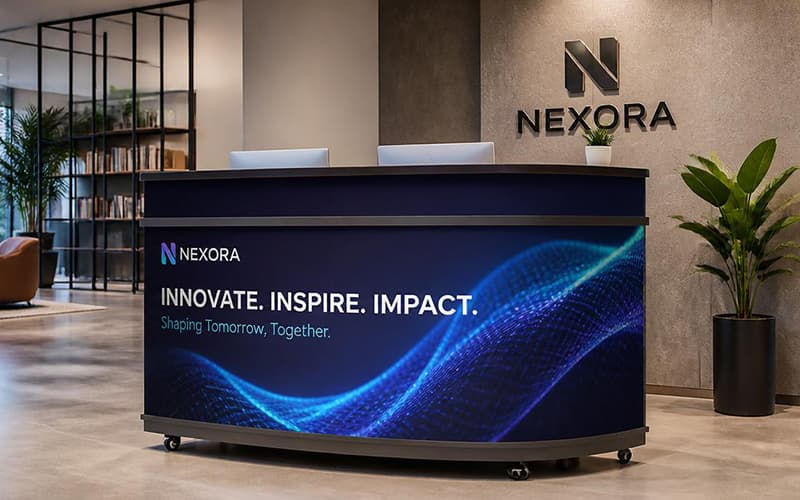

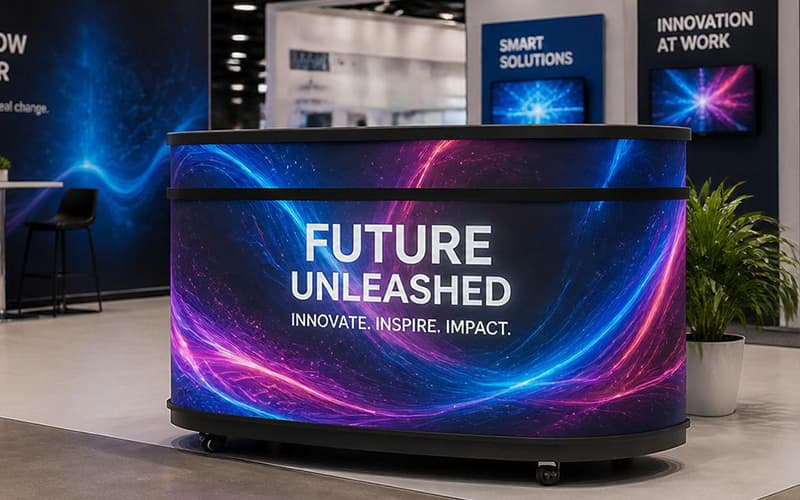

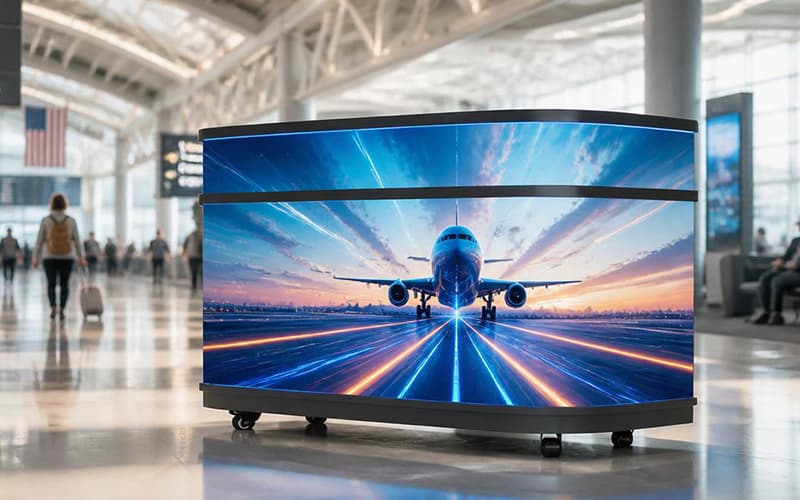

Counter LED Screen (Bar LED Screen) adds a modern and interactive experience to any space.

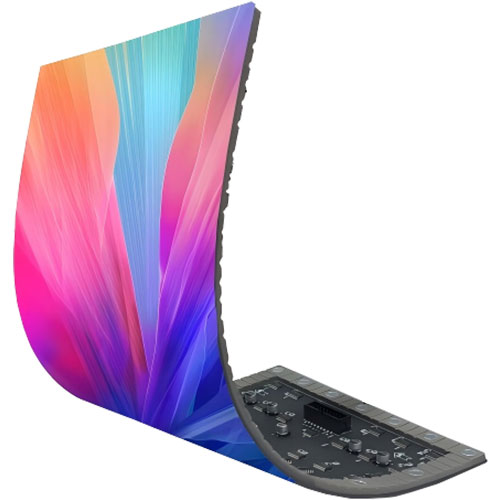

InVisia soft LED module delivers ultra-flexible, high-contrast visuals for curved, cylindrical, and creative LED displays. Designed for stages, exhibitions, retail environments, and conference backdrops, it combines bendable performance, low power consumption, and robust structural stability.
The bottom shell is made of premium silicone material, featuring excellent flexibility, high temperature resistance, low temperature protection, static elimination, and strong protective performance.
| Product Name | P1.25 | P1.538 | P1.568 | P1.667 | P1.86 | P2 | P2.5 | P3.076 | P4 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Product Name | Pixel configuration | 1R1G1B（Full color） | ||||||||
| LED packaging specifications | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2121 | ||||
| Pixel density (dots/m²) | 640000 | 422500 | 406406 | 360000 | 288906 | 250000 | 160000 | 105625 | 62500 | |
| Module dimensions (mm) | 320x160x5.25（Length x Height x Thickness） | |||||||||
| Module resolution | 256x128 | 208x104 | 204x102 | 192x96 | 172x86 | 160x80 | 128x64 | 104x52 | 80x40 | |
| Scanning method | 1/64 | 1/52 | 1/51 | 1/48 | 1/43 | 1/40 | 1/32 | 1/26 | 1/20 | |
| Refresh rate (Hz) | ≥3000-3840 | ≥1920 | ||||||||
| Frame rate (Hz) | 50&60 | |||||||||
| Gray level (bit) | 12-16 Adjustable | |||||||||
| Signal interface method | HUB75 | |||||||||
| Module base shell material | Silicone soft bottom case | |||||||||
| Module weight (kg/piece) | 0.334 | 0.33 | 0.325 | 0.318 | 0.316 | 0.315 | 0.269 | 0.252 | 0.23 | |
| Enclosure dimensions | Can be customized according to the module size | |||||||||
| Box material | Sheet metal sandblasted iron box | |||||||||
| Box flatness (mm) | ≤ 0.3 | |||||||||
| Protection level | IP45 | |||||||||
| Installation/Maintenance Method | Support front and rear installation & front and rear maintenance | |||||||||
| Optical properties | Brightness (nits) | 650-800cd | ||||||||
| Color temperature (K) | 3000—10000 Adjustable | |||||||||
| Brightness uniformity | ≥97% | |||||||||
| Horizontal/vertical viewing angle | ≥160°/≥140° | |||||||||
| Contrast | 5000:01:00 | |||||||||
| Electrical parameters | Module power supply voltage DC (V) | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Maximum current of the module DC (A) | 5 | 5 | 5 | 5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | |
| Maximum power consumption of the module (w/piece) | 25 | 25 | 25 | 25 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | |
| Working input voltage AC (V) | 110-220 Customizable | |||||||||
| Module peak power consumption (W/m²) | 490 | 490 | 490 | 490 | 440 | 440 | 440 | 440 | 440 | |
| Module average power consumption (W/m²) | 165 | 165 | 165 | 165 | 150 | 150 | 150 | 150 | 150 | |
| Electrical parameters | Typical lifetime (hrs) | 100,000 | ||||||||
| Operating temperature range (°C) | -10—50 | |||||||||
| Storage temperature range (°C) | -20—60 | |||||||||
| Operating humidity range (RH) | 20—85%（Without condensation） | |||||||||
| Storage humidity range (RH) | 20—80%（Without condensation） | |||||||||
□ Add to compare □ Add to compare
All specifications are per panel and for reference only; actual values may vary. Max hanging/stacking capacities are valid only with official InVisia Displays hardware and proper ballast (for stacking), as detailed in manuals/reports. A safety factor of 8 applies. Climbing is permitted only as specified in the panel manual.
