A Complete Guide to InVisia Holographic Screen

As a leading holographic screen manufacturer from China, InVisia Displays has developed multiple structural designs to meet the needs of high-end retail stores, glass facades, stages, exhibitions, and creative commercial spaces.

Our goal is simple: provide the right holographic display solution for every installation scenario.

InVisia holographic LED portfolio currently includes:

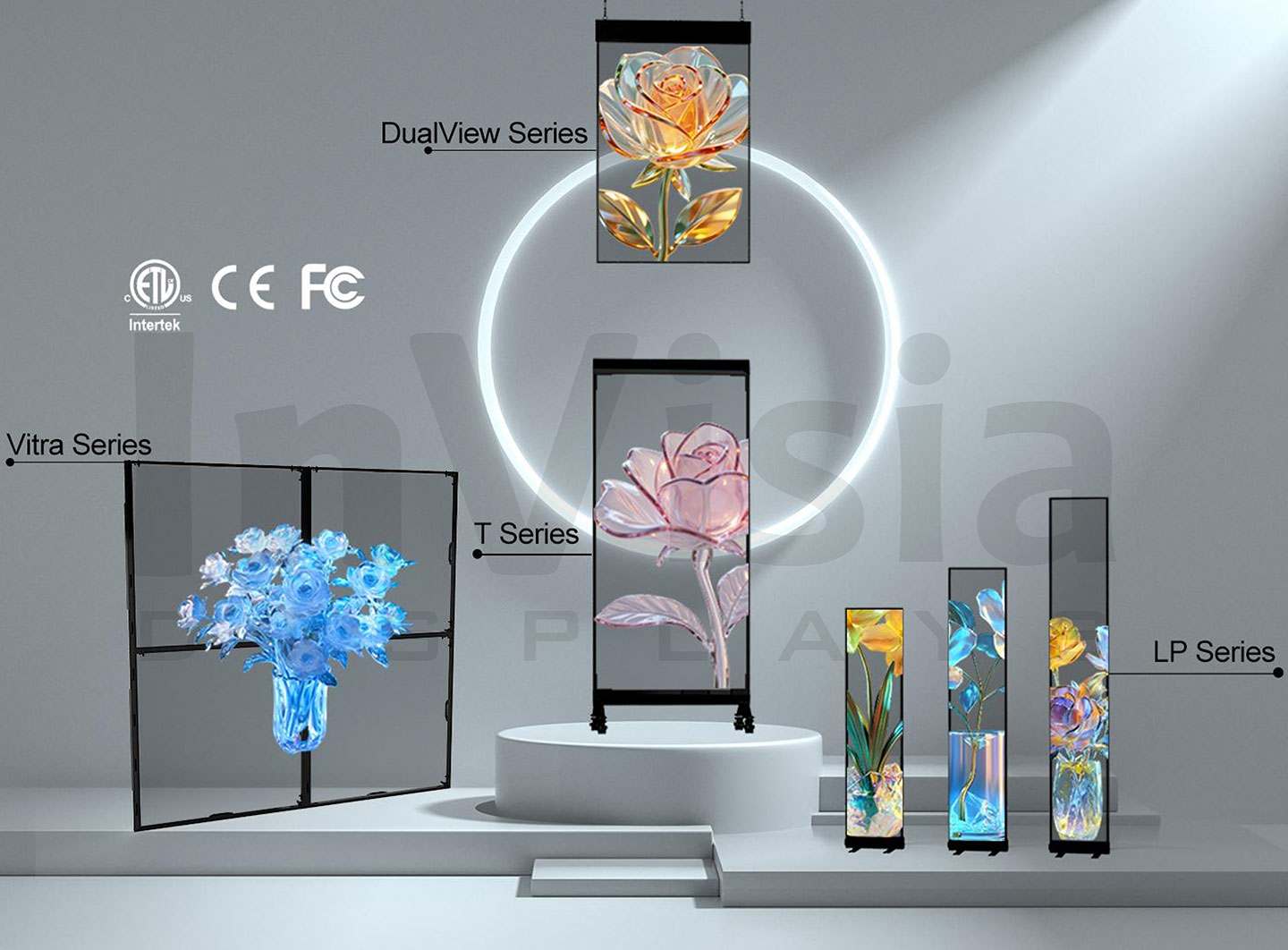

InVisia Holographic Displays CE FCC ETLEach series is designed with a different application logic and installation method in mind. This article helps clients clearly understand the differences and choose the most suitable holographic LED solution.

Our current pixel pitch options include P2.9, P3.9, and P6.25, with P2.0 coming soon to unlock even more possibilities for ultra-high-resolution transparent display applications.

InVisia Holographic LED Product Lines

  1. LP Series — Best Choice for Glass & Curved Installations

The LP Series is designed specifically for glass-mounted and curved surface installations.

  • Mesh panels without rigid structural components make glass mounting cleaner and easier
  • Ideal for curved projects thanks to flexible panel design
  • 4-layer PCB with 2oz copper thickness ensures excellent heat dissipation, even when directly attached to glass
  • Vertical curvature up to 30°, unlimited horizontal flexibility
  • 80%–90% transparency, allowing natural daylight through the glass when the screen is off
  • The maximum brightness can reach 7,500 nits, and it remains clearly visible even when installed in a window exposed to direct sunlight

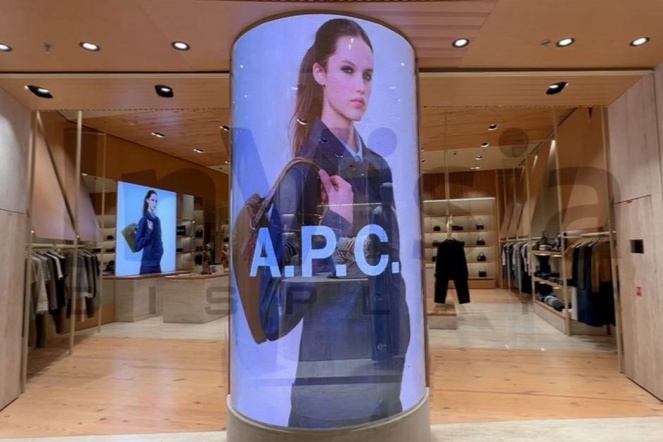

InVisia holographic LED displays case

Perfect for storefront windows, glass curtain walls, and creative architectural displays

  1. T Series — Ideal for Retail Stores & Exhibitions

The T Series is built for mobility, flexibility, and fast deployment.

  • Detachable wheels for easy movement and placement
  • Can be used as a standing display or suspended installation
  • Supports multi-screen splicing to create larger holographic LED walls
  • Maximum height up to 4.8 meters
  • Strong frame structure protects the screen from accidental impact
  • Ready to use right out of the flight case — truly plug-and-play

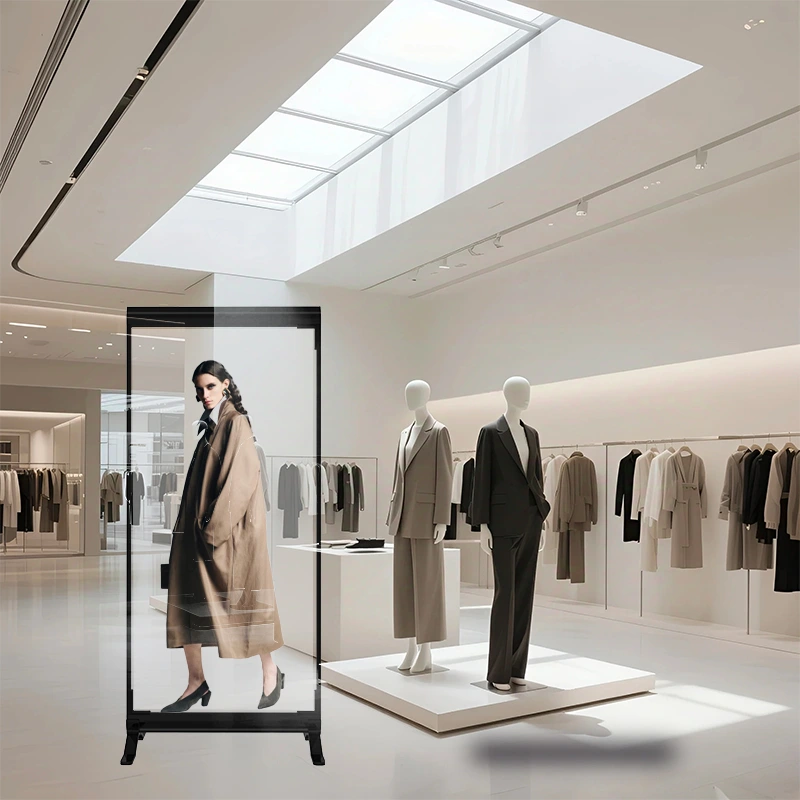

T series holographic LED poster

A preferred solution for retail advertising, shopping malls, showrooms, and exhibition booths.

  1. DualView Series — Double-Sided Display for Maximum Advertising Efficiency

The Dualview Series is designed for locations where floor space is limited but advertising efficiency must be maximized.

  • Double-sided display dramatically improves advertising efficiency
  • Integrated all-in-one design with built-in sending card — plug and play
  • No complicated setup required for fast deployment of vivid LED banners
  • The all-in-one machine also supports customization of single-sided LED banners
  • Add reinforced steel mesh, effectively protecting the LED panel from bending
  • Recommended golden ratio sizes: 55″, 65″, 70″, with flexible size combinations available

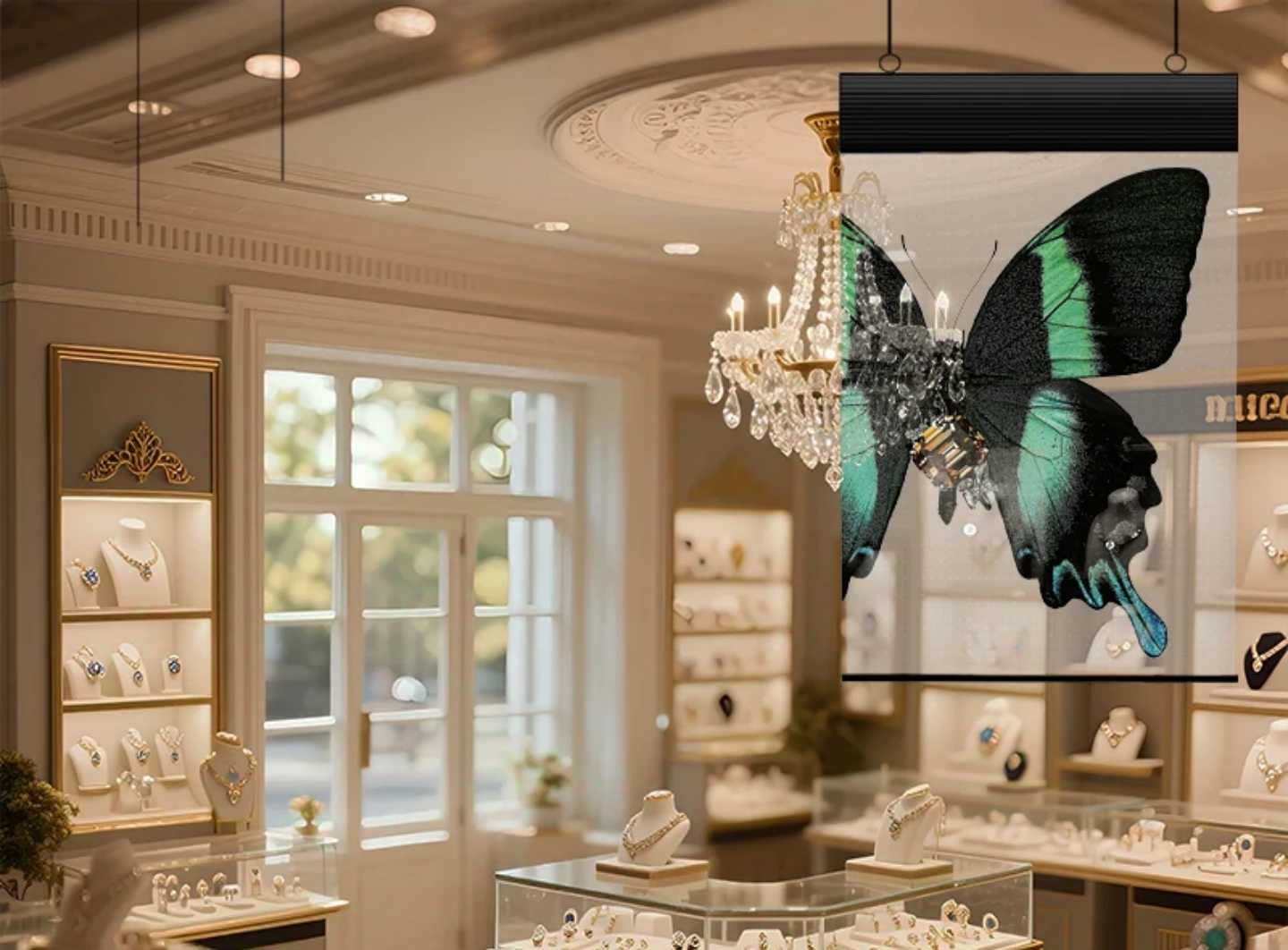

DualView Series

Ideal for perfume stores, luxury stores, jewelry stores, airports, and commercial halls.

  1. Vitra Series — The Ultimate Holographic Rental LED Screen for Touring

The Vitra Series is engineered for frequent installation and dismantling, making it perfect for concerts and touring events.

  • Modular control box integrating power supply, HUB board, and receiving card
  • Faulty components can be replaced quickly on site without waiting for technicians
  • Seamless splicing on all four sides, like traditional rental LED screens
  • Lightweight structure with strong 3D holographic visual effect

InVisia holographic LED rental displays

Designed for high-demand stage and live event applications

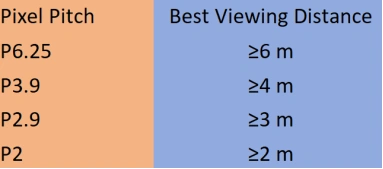

Pixel Pitch Options for Different Viewing Distances

InVisia pixel pitch option

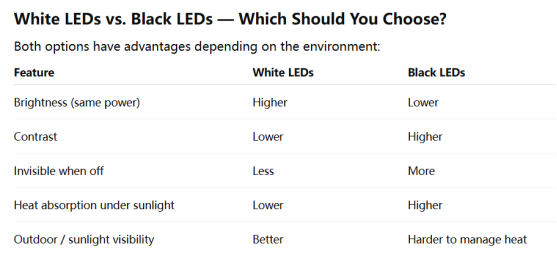

White LEDs vs. Black LEDs: Which Should You Choose?

White LEDs are brighter than black LEDs under the same power consumption. In terms of contrast, white LEDs are inferior to black LEDs. In the screen-off state, white LEDs are not as invisible as black LEDs. However, when exposed to direct sunlight, a higher brightness is required to see the screen clearly. Moreover, black absorbs heat and increases the difficulty of heat dissipation. We would recommend choosing white LEDs more.

  • For projects under direct sunlight where higher brightness and easier heat management are required, white LEDs are recommended.
  • For projects prioritizing contrast and visual invisibility when powered off, black LEDs may be preferred.

The choice ultimately depends on client preference.

White LEDs vs. Black LEDs

Built with Premium PCB for Long-Term Stability

All InVisia holographic LED displays are manufactured with 4-layer PCB and 2oz copper thickness.

This ensures:

  • Superior electrical performance
  • Excellent heat management
  • Stable image quality
  • Longer lifespan
  • High brightness and contrast
  • Exceptional safety performance (no fire risk)

All holographic screens are certified with CE, EMC, FCC, and ETL, allowing global integrators and partners to deploy projects without regulatory concerns.

Continuous Innovation Driven by Market Needs

At InVisia, product development never stops. We continuously introduce new designs and finer pixel pitches based on customer feedback, market trends, and emerging creative applications.

With the upcoming P2.0 holographic transparent LED display, we are expanding the boundaries of ultra-high-definition transparent visualization for premium retail and architectural media.

Choose the Right Holographic LED Solution with InVisia

Whether your project involves glass installation, retail advertising, double-sided visibility, or touring stage performance, InVisia offers a dedicated holographic LED structure designed specifically for that scenario.

InVisia Displays — redefining transparent digital space with professional holographic LED technology.
