Vitra Series

Where Transparency Meets Performance

Designed for professional rental applications, the VITRA transparent LED display delivers over 85% visual transparency while maintaining high brightness and contrast through black LED technology.

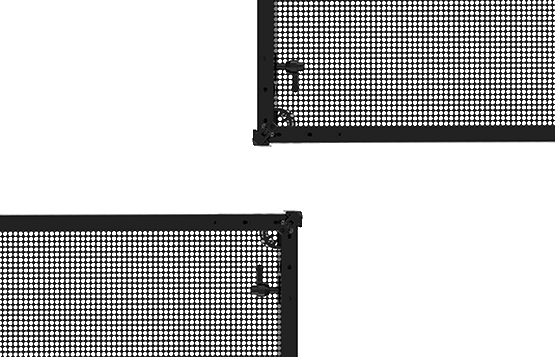

Each 1×1m lightweight panel weighs only 8kg/㎡, featuring a modular power box for fast maintenance and reinforced corner protection for safer transportation and installation.
With static scanning, ultra-high refresh rates, and a dual-purpose hanging & stacking structure, VITRA ensures stable performance across concerts, exhibitions, and commercial displays—while supporting a low-carbon, energy-efficient design for sustainable deployment.

Contact Us

Key Features

invisia-vitra-key-features

Optimal Transparency

High Transparency Display

Up to 85%+ transparency delivers clear sightlines while maintaining vivid visuals, making this transparent LED rental screen ideal for concerts, retail promotions, exhibitions, and event stages.
The open structure preserves architectural visibility and lighting effects, creating immersive visual layers without blocking the space.

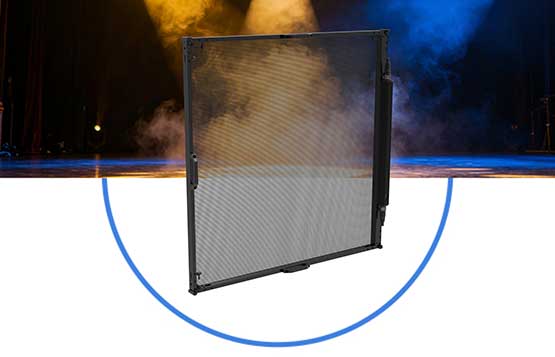

invisia-vitra-01

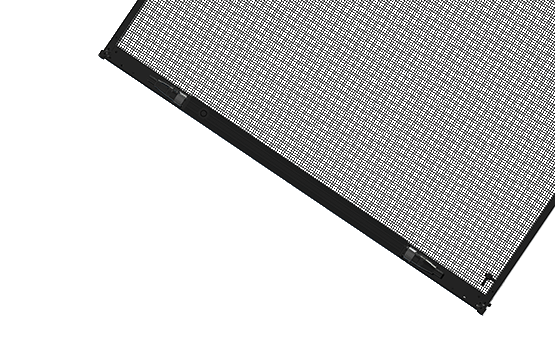

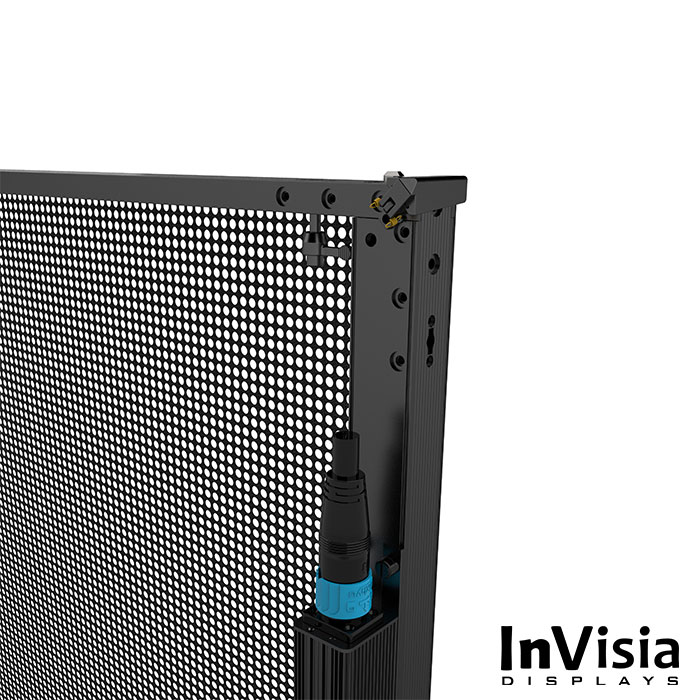

invisia-vitra-power-box

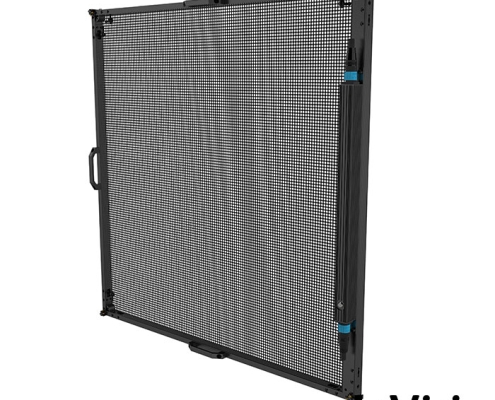

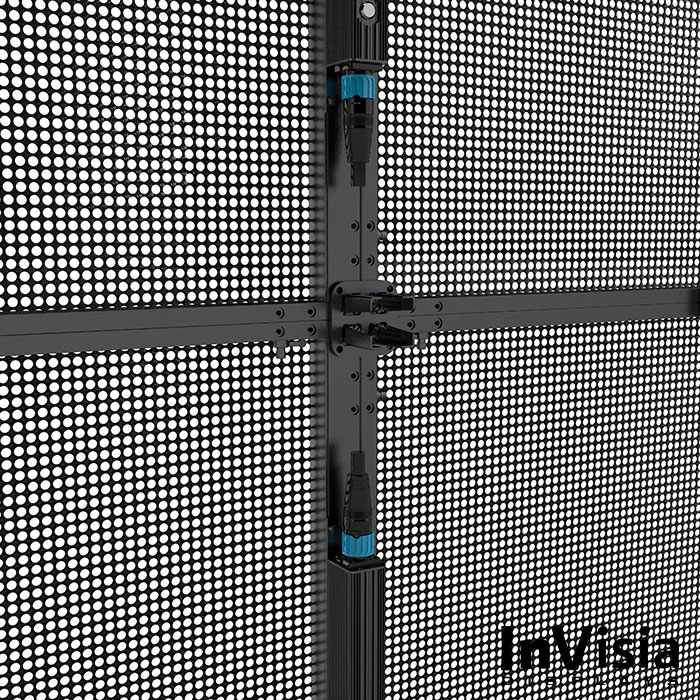

Lightweight Modular Panels

Each 1×1m rental LED panel weighs only 7kg/㎡, allowing quick assembly, dismantling, and transportation.
The modular design enables flexible screen sizes such as 2×2m, 3×4m, reducing labor cost and setup time for rental companies.

Flexible Rental Design

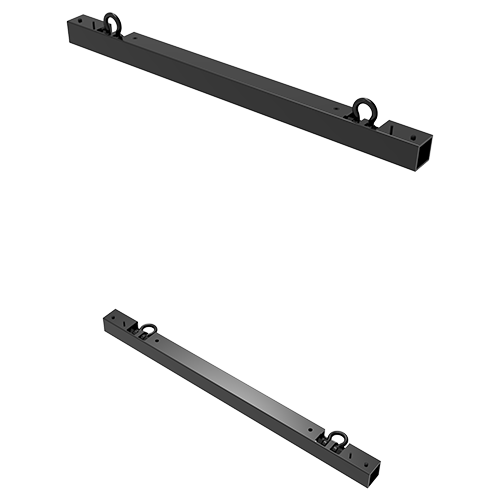

The integrated hanging and ground-stacking structure supports multiple installation scenarios, from suspended stage backdrops to freestanding commercial displays.
Energy-efficient components and a low-carbon design reduce power consumption, making this transparent LED rental solution reliable for long-term and repeated use.

Vitra Brochure
Vitra Series Specification

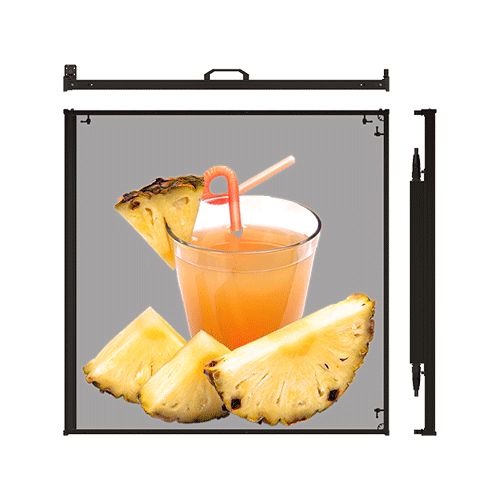

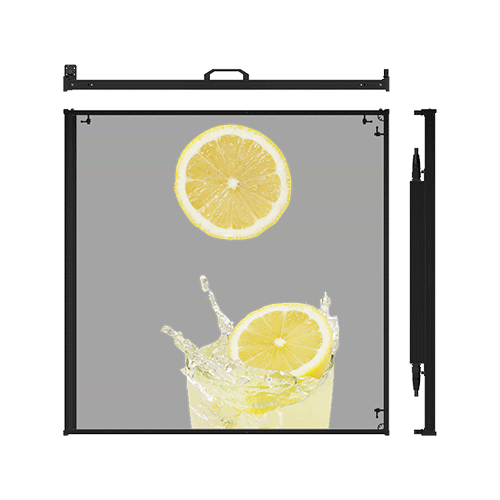

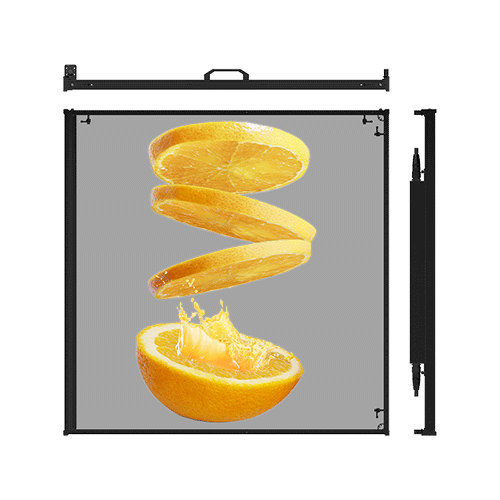

Modelinvisia-vitra-tab1invisia-vitra-tab2invisia-vitra-tab3
Module
Pixel PitchHorizontal:2.0mm/Vertical: 2.0mmHorizontal:2.9mm/Vertical: 2.9mmHorizontal:3.9mm/Vertical: 3.9mmHorizontal:6.25mm/Vertical: 6.25mm
Pixel Density250000dot/ m²112896dot/ m²65536dot/ m²25600dot/ m²
Visual Transparency70%80%90%
Module Size1000mm*1000mm
Overall Module Size1000mm*1000mm*79mm
LED Type1010 (Integrated light drive)1818 (Integrated light drive)2121 (Integrated light drive)
Weight14kg11kg9kg7kg
Resolution Ratio500*500pix336*336pix256*256pix160*160pix
LED Control SystemSynchronous/Asynchronous
BrightnessWhite balance brightness ≥2000cd/㎡; Automatically adjust and manually adjust according to ambient brightnessWhite balance brightness ≥2500cd/㎡; Automatically adjust and manually adjust according to ambient brightnessWhite balance brightness ≥4000cd/㎡; Automatically adjust and manually adjust according to ambient brightnessWhite balance brightness ≥5000cd/㎡; Automatically adjust and manually adjust according to ambient brightness
Viewing AngleHorizontal 160, Vertical 140
Display Thickness1.3mm1.5mm1.8mm
Playback ControlNOVA T50 input:HDMI、WiFi、Bluetooth，Built-in Playback System，32GB of storage，Cloud Management
Resumable Transmission√
Average Lifespan≥ 100000 hours
Gray Scale≥16(bit)
White Field Color Temperature5500K-15000K (adjustable)
Drive ModeStatic
Atenuation Rate2 years below 0.05%
Average Fault-Free Working Time≥ 10000 hours
Maximum Power Consumption760W/ m²865w/㎡1292W/ m²1600W/ m²
Average Power270W/ m²340w/㎡323W/ m²640W/ m²
Power Supply Requirements100Vacto200Vac 5V-70A
200Vacto240Vac 5V-100A AC50HZ~60HZ, CE UL		110V ~ 220V±10%; AC50HZ, three-phase five-wire
Operation Temperature0℃～+60℃-20℃～+50℃
Working Humidity20% RH ~ 85% RH, no condensation
Storage Temperature-20℃ ~+60℃
Storage Humidity10%RH～85%RH，no condensation
Installation MethodWall mount installation, glass adhesive, hanging, stacking

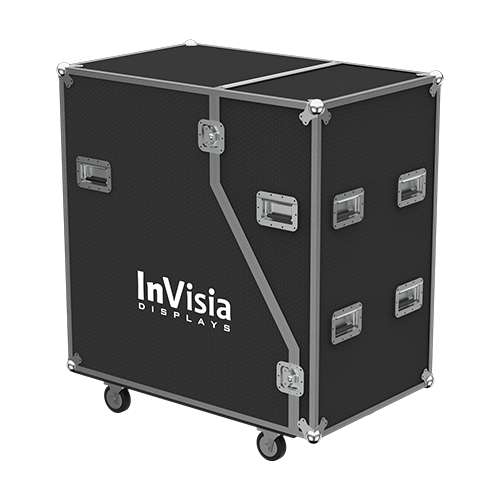

Packaging MethodCardboard Case/ Plywood Case / Flight Case

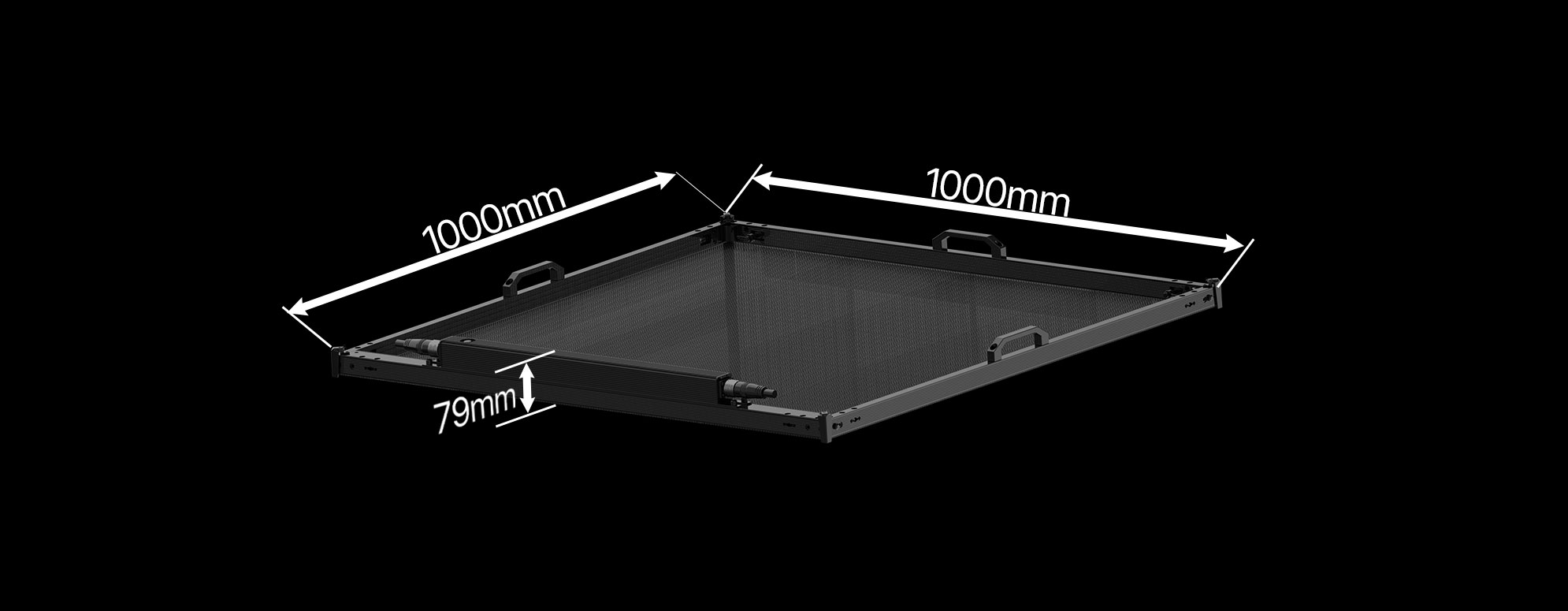

invisia-vitra-size

Applications

A realistic live event scene featuring a transparent holographic LED rental screen used across multiple applications such as music festivals, concerts, theater performances and public holiday events. The screen is constructed from 1×1 meter modular rental panels and integrated into professional stage or event structures. It displays subtle motion visuals while remaining transparent, allowing stage depth, performers, lighting and background to remain visible. The environment includes real truss systems, stage lighting, speakers and an audience, with natural lighting and true-to-life proportions. Documentary-style event photography, realistic installation, no CGI look, no illustration, no concept art.

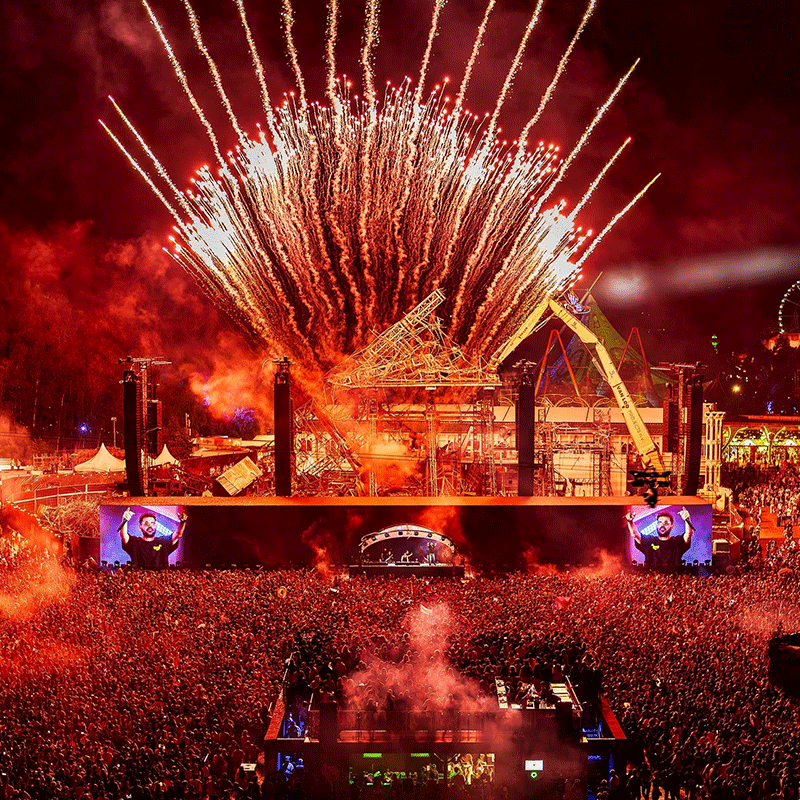

Concert

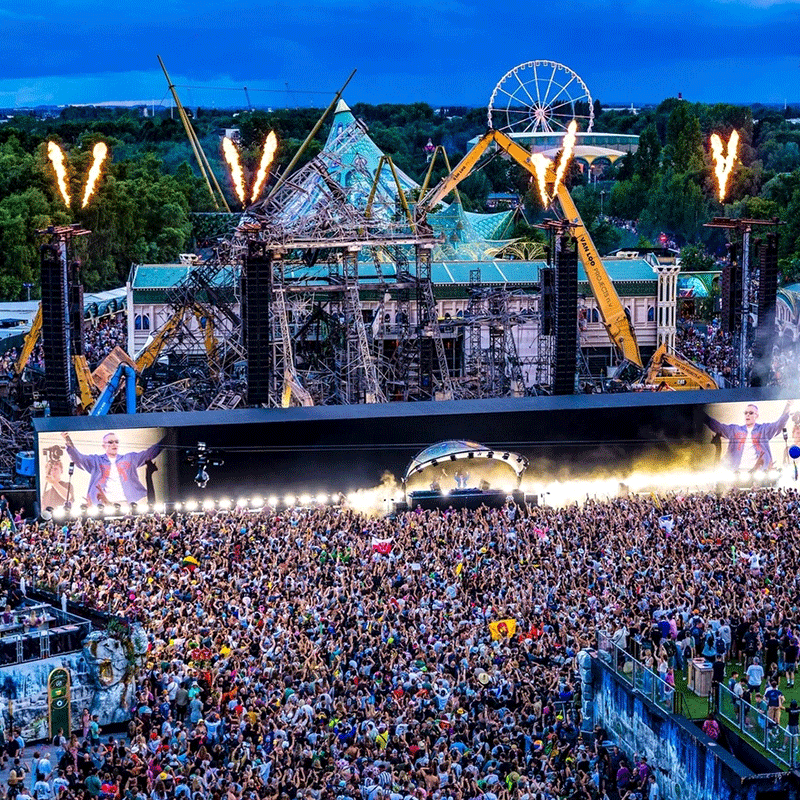

Roadshow

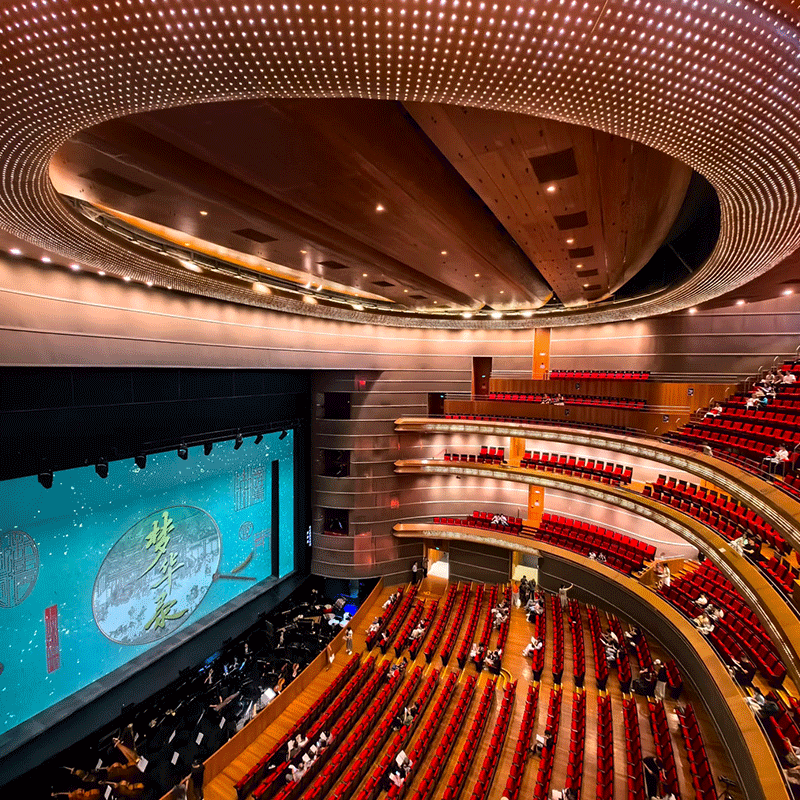

Theater

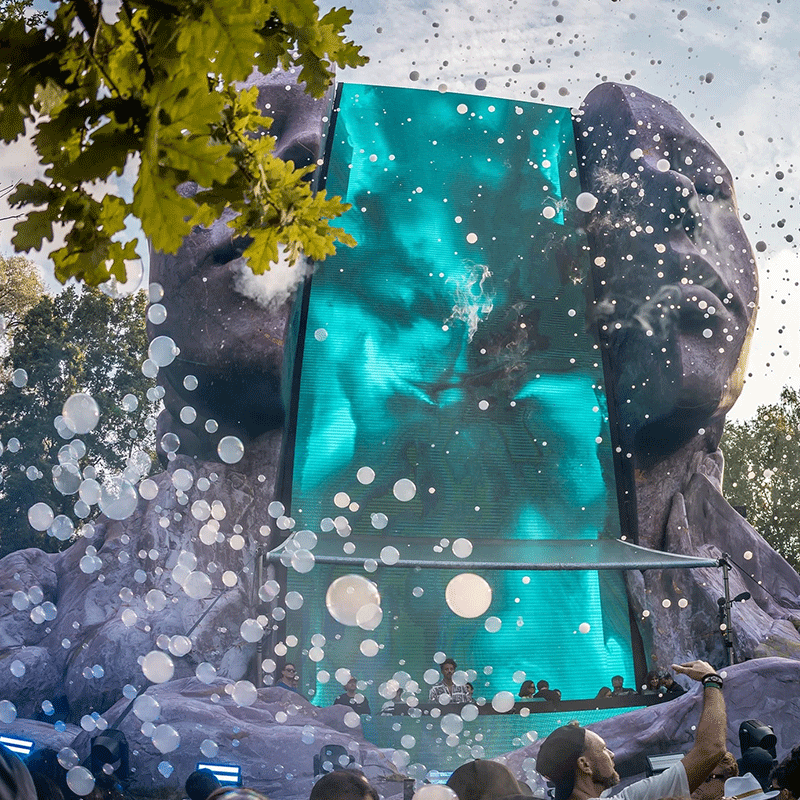

Theme Park
