T Series Holographic Invisible LED Screen
T Series Holographic Invisible LED Screen
T Series Holographic Invisible LED Screen
T Series Holographic Invisible
T Series Holographic Invisible
T Series Holographic
T Series Holographic

Holographic Invisible LED Screen – T Series

  • Pixel Pitch: P2.9 / P3.9 / P6.25
  • Size: Customizable (standard options: 1*2 m, 1.5*2 m, 2*2 m(W*H))
  • Installation Methods: Standing, hanging
  • Seamless Splicing: Supports seamless connection between multiple units
  • Fire Safety: Zero fire risk with advanced 4-layer PCB and 2oz copper thickness
  • 3D Visual Experience: Naked-eye 3D content help you to captivate audiences and win more projects.
  • Flexible Expansion: Unlimited width expansion, with a maximum height of 3 meters

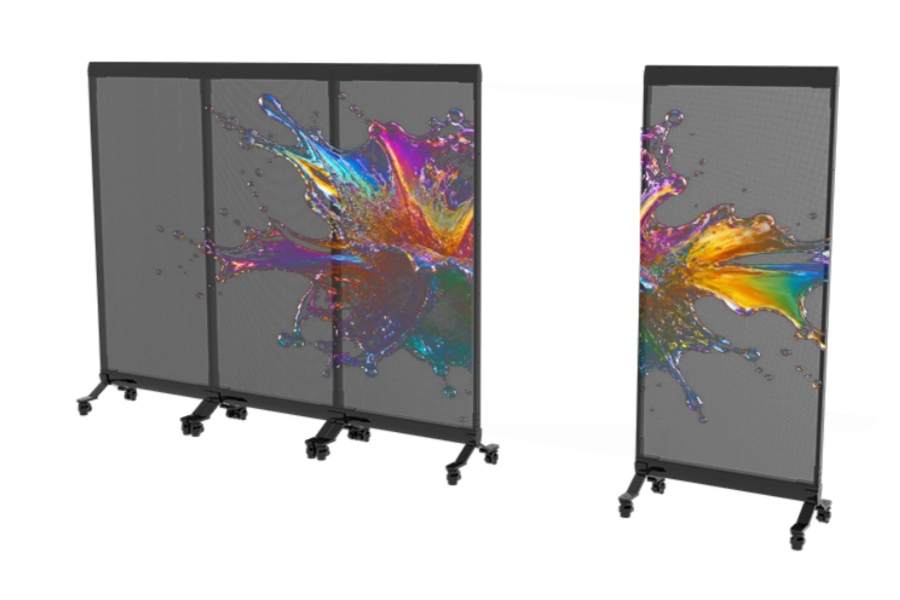

  • Mobile Design with Caster Wheels: Each unit is equipped with four heavy-duty caster wheels, making it easy to move, position, or rearrange displays anytime—perfect for exhibitions, events, and retail spaces.
Inquiry Now

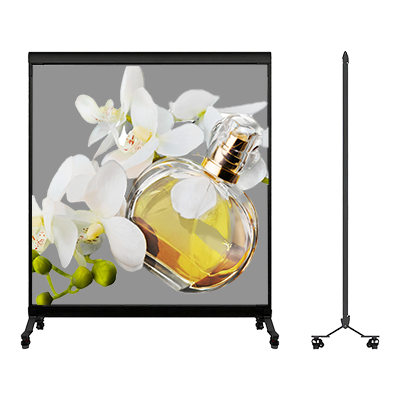

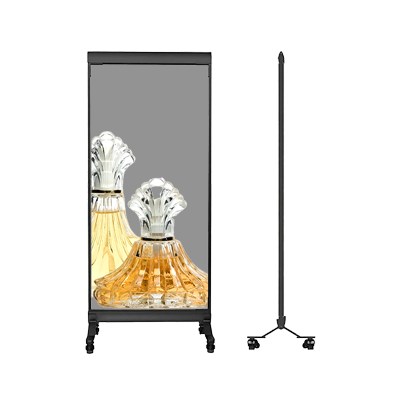

Innovative Structural Design for Any Installation

Whether standing on caster wheels for easy mobility or hanging for suspended presentation, our transparent LED display adapts to any environment with effortless setup.

T Series drawing

Never catch Fire

InVisia’s advanced safety design completely eliminates fire risk, even in cases of module damage—a situation where common transparent LED displays often fail.
This unmatched reliability stems from our reinforced 4-layer PCB structure, engineered for superior electrical stability and thermal management. Unlike standard 2-layer boards that easily overheat at high brightness levels, InVisia’s design ensures cooler operation, longer lifespan, and guaranteed safety in every environment.

Get a Quote
T-Color characteristic

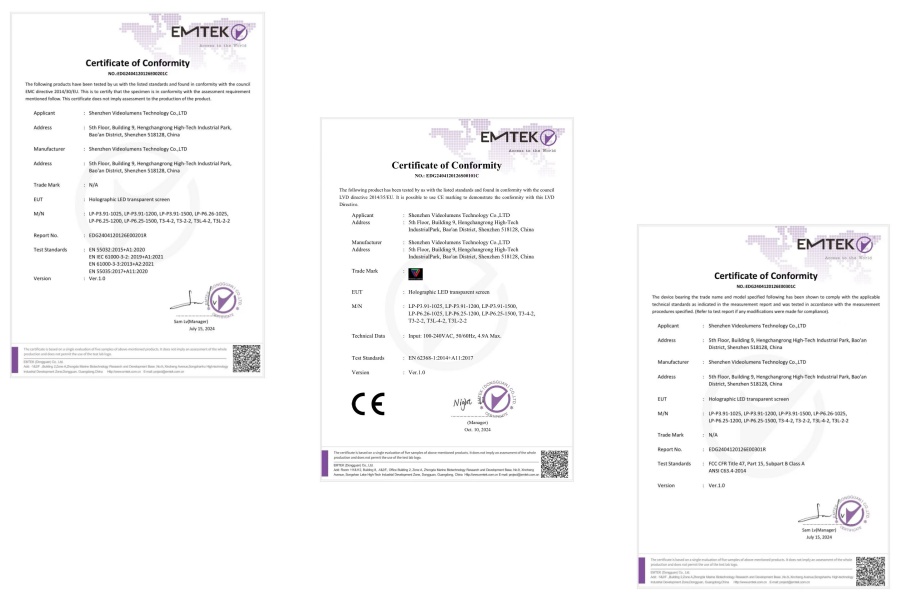

CE FCC EMC certificate

FCC & CE-EMC & ETL Certificates

InVisia transparent holographic displays are fully certified with CE, FCC, and ETL standards. For LED display integrators and distributors, this means no certification barriers when delivering or installing in markets across Europe, North America, and beyond. Certified displays also ensure a higher project acceptance rate, meeting the stringent standards of government, retail, and corporate clients.

Get a Quote

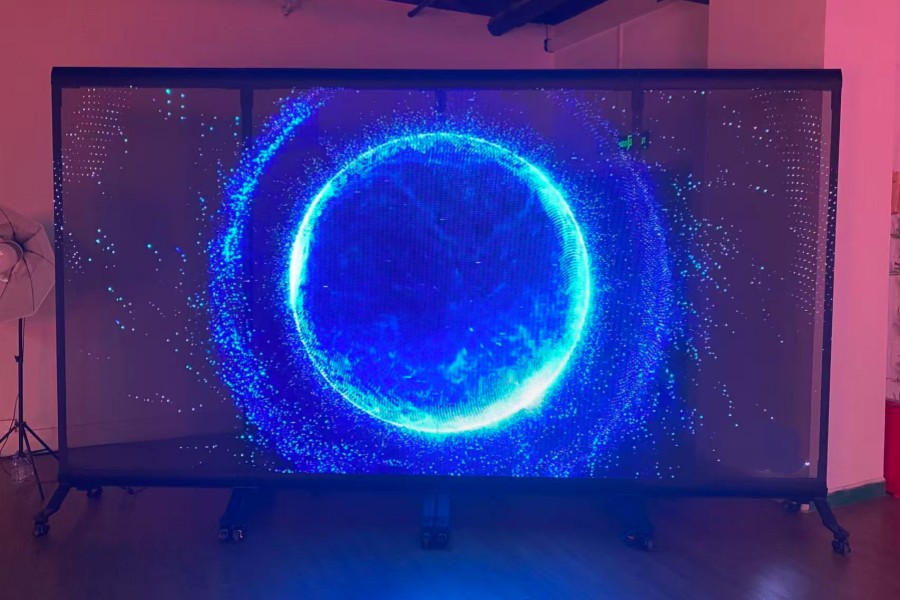

Tseries LED displays

Seamless Splicing

T Series transparent LED display has no limit on the number of units you can splice together. The maximum connection only depends on the controller box’s loading capacity, allowing you to create anything from a single-unit setup to a massive holographic video wall spanning dozens of screens.

Thanks to its modular design, splicing is quick and effortless — simply connect, align, and power up.

Get a Quote

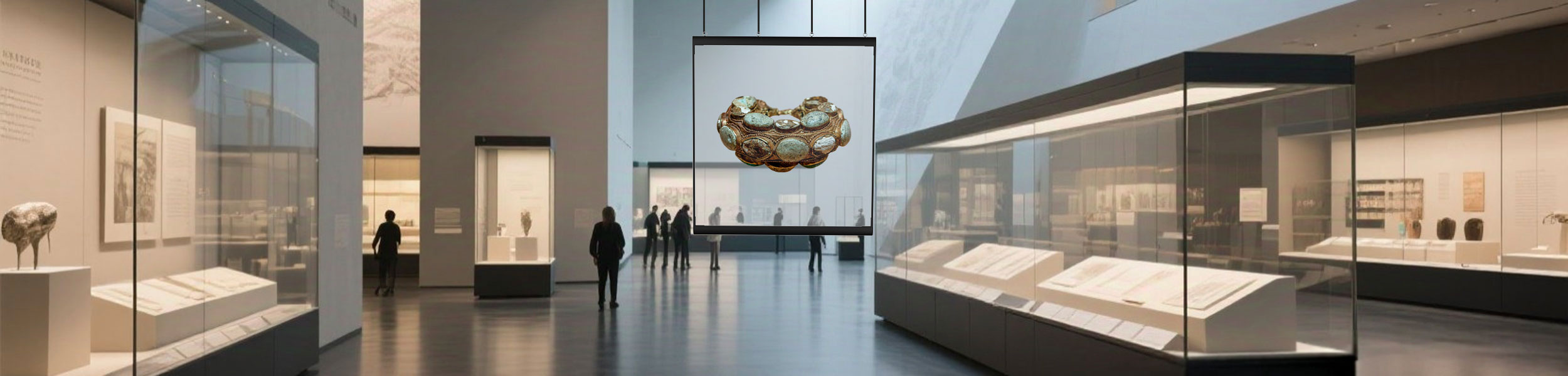

Wide Applications

T-Series holographic transparent display delivers ultra-high transparency, ensuring an unobstructed view inside your store. With its exceptional brightness, the LED display remains vivid and sharp even under direct sunlight—capturing attention instantly and increasing dwell time.

Enhance your showcase with customized naked-eye 3D content, designed to turn every glance into engagement. Contact us today to create a stunning visual experience that drives traffic and sales.

Get a Quote

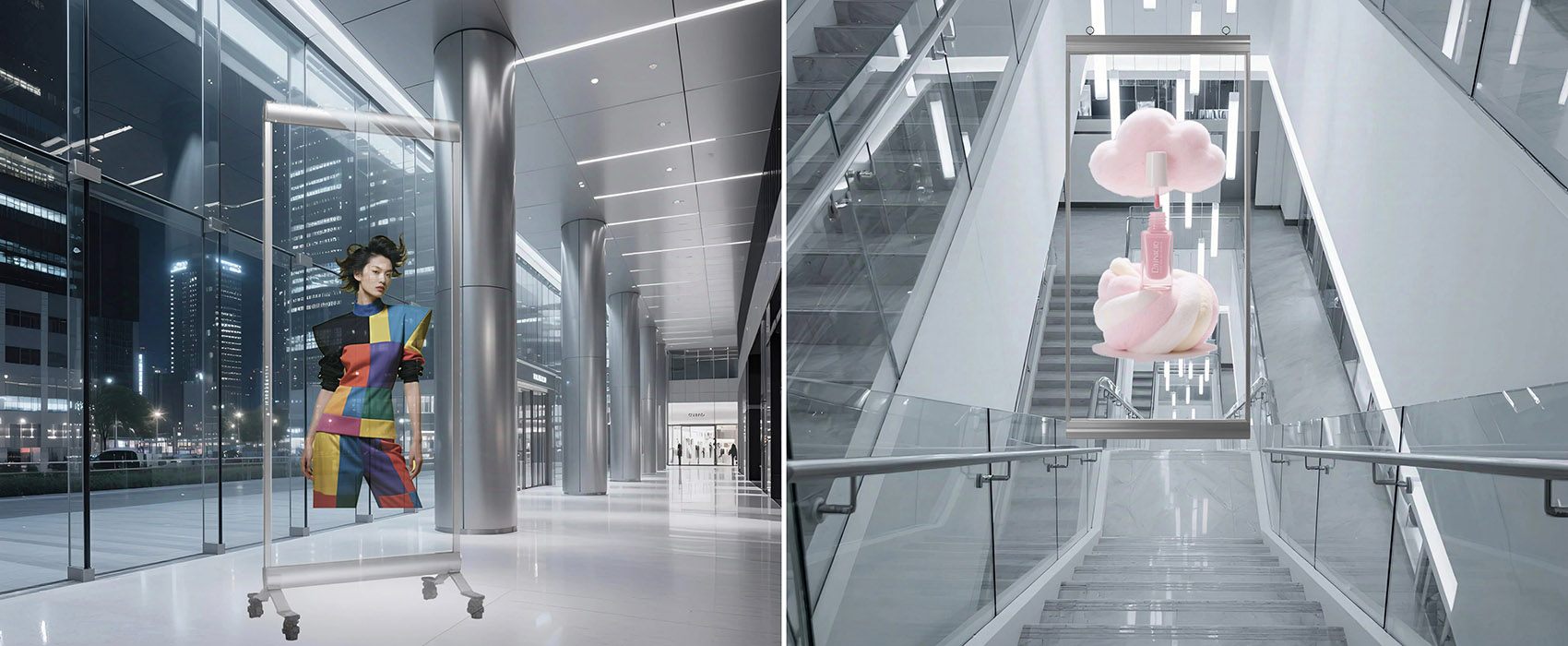

invisiadisplays join together
ModelT3-4-2T3-2-2T3L-4-2T3L-2-2

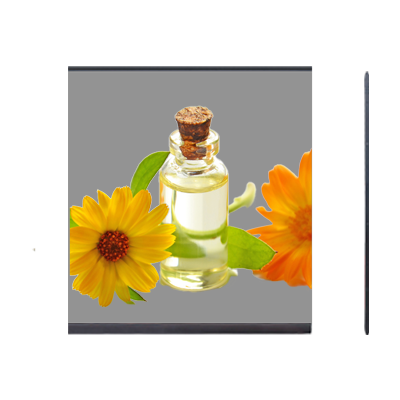

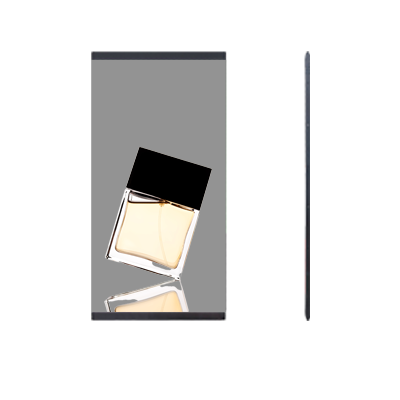

ModuleT322T312T3L22T3L
Pixel PitchHorizontal: 3.91mm/Vertical: 3.91mm
Pixel Density65536dot/ m²25600dot/ m²
Visual Transparency＞80%
Module Size2000mm*2200mm1000mm*2200mm2000mm*2200mm1000mm*2200mm
Overall Module Size2000mm*2200mm*55mm1000mm*2200mm*55mm2000mm*2200mm*500mm1000mm*2200mm*500mm
LED Type2121 (Integrated light drive)
Weight31.84kg15.92kg41.84kg25.92kg
Resolution Ratio512x512pix256x512pix512x512pix256x512pix
LED Control SystemSynchronous/Asynchronous
BrightnessWhite balance brightness3000cd/㎡; Automatically adjust and manually adjust according to ambient brightness
Viewing AngleHorizontal 160, Vertical 140
Display Thickness1.8mm
Resumable TransmissionSupported
Average Lifespan≥ 100000 hours
Gray Scale≥16(bit)
White Field Color Temperature5500K-15000K (adjustable)
Drive ModeStatic
Atenuation Rate2 years below 0.05%
Lifespan≥100,000.00 hours
Maximum Power Consumption1200W/ m²
Average Power Consumption450W/ m²
Power Supply Requirements110V ~ 220V±10%; AC50HZ, three-phase five-wire
Operation Temperature-20℃～+50℃
Working Humidity20% RH ~ 85% RH, no condensation
Storage Temperature-20℃ ~+60℃
Storage Humidity10%RH～85%RH，no condensation
Installation MethodWall mount installation, glass adhesive, hanging, stacking, suitable for curved installations, supports cutting to any size
Packaging MethodCardboard Case/ Plywood Case / Flight Case
Download
Declaration: The relevant parameters in the table are updated in real time, and the data is for reference only. No further notice will be given if there are any upgrades.

Transparent LED Display Manufacturer

T-Series holographic transparent LED display offers custom sizes and flexible installation options, making it easy to adapt to any environment. Designed for seamless integration and scalable applications, it’s the perfect solution for retail stores, exhibitions, showrooms, and corporate spaces.

Contact us today for expert support and tailored recommendations.

2025 New Led Displays Price Check

Get a customized quote that fit your plan !

Send us mail

2 + 3 = ?

FAQ

There is no MOQ requirement for transparent LED displays.

Standard holographic screens are typically ready to ship within 7 working days after order confirmation.
For custom sizes or configurations, lead time may vary depending on project requirements.
Please contact our sales team for the latest production schedule.

All InVisia transparent LED displays come with a 2-year international warranty covering manufacturing defects.
We also provide lifetime technical support and fast replacement service for essential components to ensure long-term reliability.

We offer global shipping via air, sea, or express (DHL / SF Express).
Each LED display is professionally packed in shockproof and moisture-proof cases to guarantee safe arrival.

Absolutely. InVisia provides fully customizable options, including screen dimensions, frame materials, brightness levels, and pixel pitch.
Our sales engineers will recommend the best configuration based on your project’s space, design, and viewing requirements.
