P Series Photoelectric Glass LED

  1. Thickness can be customized according to the project; Transparent, over 96% transparency rate.
  2. It can be installed on the wall, affixed to the glass, hoisted, stacked, and can be made curved surface.
  3. Floating images, 3D holographic and spatial suspension display.
  4. Integrated lamp driving and static scanning for stable image; Equal pixel pitch for image quality; 16-bit grayscale level for rich and delicate colors.
  5. It is moisture-proof, dust-proof, and impact-proof, while also providing high definition, high refresh rate, and high color reproduction.
Inquiry Now

Product Feature:

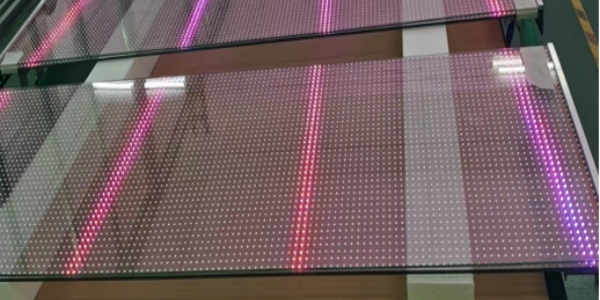

Photoelectric glass is one of the transparent screen subdivision products. It is an LED display with LED lamp beads built in between double layers of glass, using glass conductive coating technology and a control system to present photoelectric display effects and multiple scalability. The screen body is designed with tempered glass, which is transparent, riot-proof, waterproof, and UV-proof, and can be integrated into the building without affecting the line of sight and building lighting. The products have the main advantages of high transparency, high brightness, environmental protection and energy saving; they can be used in building glass curtain walls, night scene lighting applications, transportation hub applications, container transformation, canopy sunrooms, overpass guardrails, retail store windows, etc.

P Series Photoelectric Glass LED Display

High brightness, high color gamut, and controllable color temperature allow you to experience transparent colors.

cases invisia

Superb Transparency

Photoelectric Glass LED is an LED display with LED lamp beads built in between double layers of glass, using glass conductive coating technology and a control system to present photoelectric display effects and multiple scalability. Uses specially designed transparent LED display elements so that light can penetrate the display screen without causing obvious obstruction to the background. This display element combines LED technology and optical principles to achieve a balance between transparency and display effects by controlling the propagation path and reflection of light.

mall screen display

Feature of Product

Photoelectric glass is one of the transparent screen subdivision products. It is an LED display with LED lamp beads built in between double layers of glass, using glass conductive coating technology and a control system to present photoelectric display effects and multiple scalability.Product shape, thickness, weight can be customized according to the needs of the project, can be used as a surface.

led screen p5
P Series Photoelectric Glass LED Display

High Transparency High Brightness Environmental Protection and Energy Saving

White balance brightness 4000-5000cd/㎡; Automatic adjustment and manual adjustment according to the ambient brightness. The permeability of the front and back can reach more than 96%. Thickness can be customized according to the project. Nanomaterial, high temperature resistance, oxidation resistance, acid and alkali resistance special dry process adhesive, hardness 5 times that of tempered glass, high safety factor

Outstanding Performance

Photoelectric glass can be customized in various ways and is the perfect combination of architectural functions and media playback. Which is transparent, riot-proof, waterproof, and UV-proof. It is moisture-proof, dust-proof, and impact-proof, while also providing high definition, high refresh rate, and high color reproduction. It is the first choice for attracting attention from brands and consumers product.

led screen p20

Easy to Install

According to the demand to produce the plan, to provide the perfect installation method

Easy to Install

According to the demand to produce the plan, to provide the perfect installation method

LED screen
ModelP5P6.25P7.8125P10P15.625P20
Module
Pixel PitchL(5mm)W(5mm)L(6.25mm)W(6.25mm)L(7.8125mm)W(7.8125mm)L(10mm)W(10mm)L(15.625mm)W(15.625mm)L(20mm)W(20mm)
Pixel Density40,000dots/sqm25,600dots/sqm16,384dots/sqm10,000dots/sqm4,096dots/sqm2,500dots/sqm
Visual Transparency＞90%＞94%＞96%＞94%＞94%＞95%
Module Size800mm*450mm1000mm*400mm1000mm*500mm1000mm*500mm1000mm*500mm1000mm*500mm
LED Type1515（Integrated lamp driving）2121（Integrated lamp driving）
WeightCustomized According to Project
Resolution Ratio160x80 pixels160x80 pixels128x64 pixels100x50 pixels64x32 pixels50x25 pixels
LED Control SystemSynchronous/Asynchronous
BrightnessWhite balance brightness 4000-5000cd/sqm; Automatically adjust according to environmental brightness andWhite balance brightness 4000-5000cd/sqm; Automatically adjust according to environmental brightness andWhite balance brightness 4000-5000cd/sqm; Automatically adjust according to environmental brightness andWhite balance brightness 4000cd/sqm; Automatically adjust according to environmental brightness and manual adjustmentWhite balance brightness 4000cd/sqm; Automatically adjust according to environmental brightness and manual adjustmentWhite balance brightness 3000cd/sqm; Automatically adjust according to environmental brightness and manual adjustment
Viewing AngleHorizontal 160, Vertical 140
Display ThicknessCustomized According to Project
Resumable TransmissionSupported
Average Lifespan≥ 100000 hours
Gray Scale≥16(bit)
White Field Color Temperature5500K-15000K (adjustable)
Drive ModeStatic
Attenuation Rate2 years below 0.05%
Average Fault-Free Working Time
≥10,000hours
Maximum Power Consumption600W/ m²
Average Power Consumption200W/ m²
Power Supply Requirements110V ~ 220V±10%; AC50HZ, three-phase five-wire
Operation Temperature-20℃～+50℃
Working Humidity20% RH ~ 85% RH, no condensation
Storage Temperature-20℃ ~+60℃
Storage Humidity10%RH～85%RH，no condensation
Installation MethodWall mount installation, glass adhesive, hanging, stacking, suitable for curved installations, supports cutting to any size
Packaging MethodCardboard Case/ Plywood Case / Flight Case
Download
Declaration: The relevant parameters in the table are updated in real time, and the data is for reference only. No further notice will be given if there are any upgrades.
