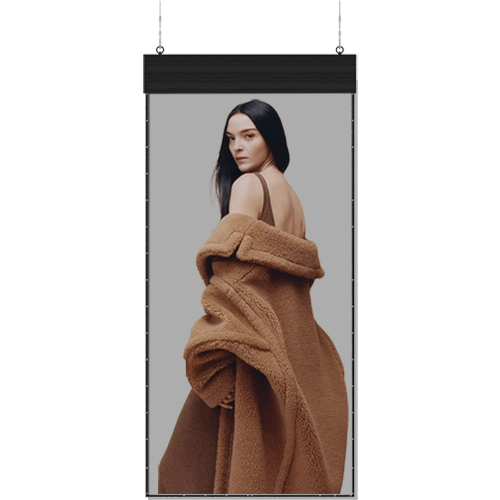

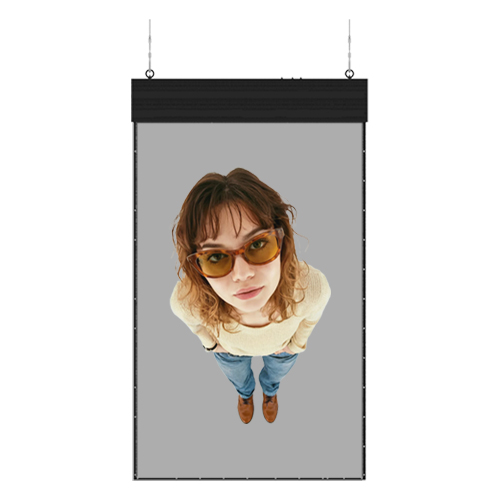

DualView Series

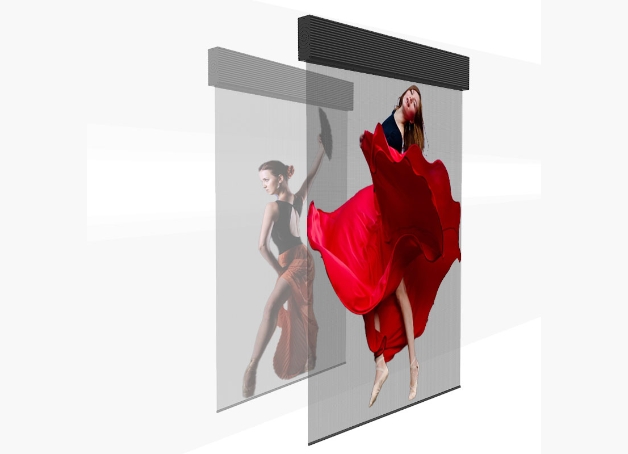

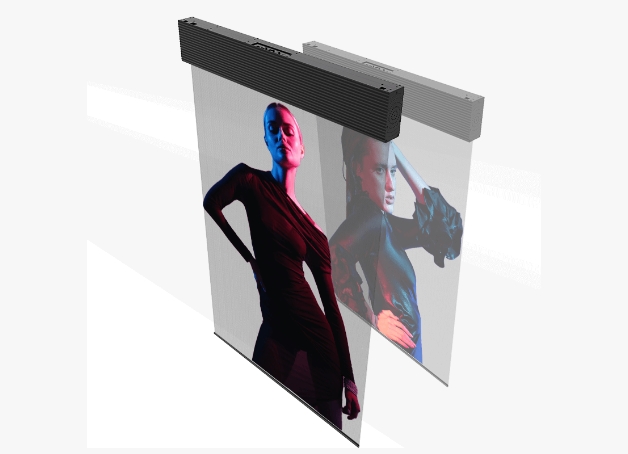

DualView Series is the latest evolution in InVisia’s transparent holographic display lineup, featuring a dual-view design that delivers content on both sides — maximizing visibility.

Built on our signature 4-layer PCB and 2oz copper construction, DualView ensures zero fire risk, enhanced heat dissipation, and long-term durability.

  • Pixel Pitch: P2.9 / P3.9 / P6.25
  • Size: Customizable (standard options: 750*1200 , 750*1500, 1000*1500 mm(W*H))
  • Fire Safety: Zero fire risk with advanced 4-layer PCB and 2oz copper thickness
  • 3D Visual Experience: Naked-eye 3D content help you to captivate audiences and win more projects.
  • Installation Method: Hanging
  • Plug & Play: Built-in sending card, supports WiFi / USB / HDMI / LAN for instant content delivery.
Inquiry Now

FCC & CE-EMC & ETL Certificates

CE certificate
FCC certificate
EMC certificate

DualView Series Video

  • Energy-Efficient & Lightweight: Designed for low power consumption and easy installation, reducing operational costs.
  • Superior Visuals: 3500 nits high brightness, high contrast, over 80% transparency.
  • Smart Brightness Control: Adapts automatically to ambient light for energy savings and eye comfort.
  • Custom Sizes Available: In addition to our standard models, InVisia DualView Series supports full size customization to perfectly match your project requirements. Whether you need a compact display for retail windows or a large-scale installation for exhibitions, we provide tailor-made transparent holographic screens that fit your exact dimensions and specifications.

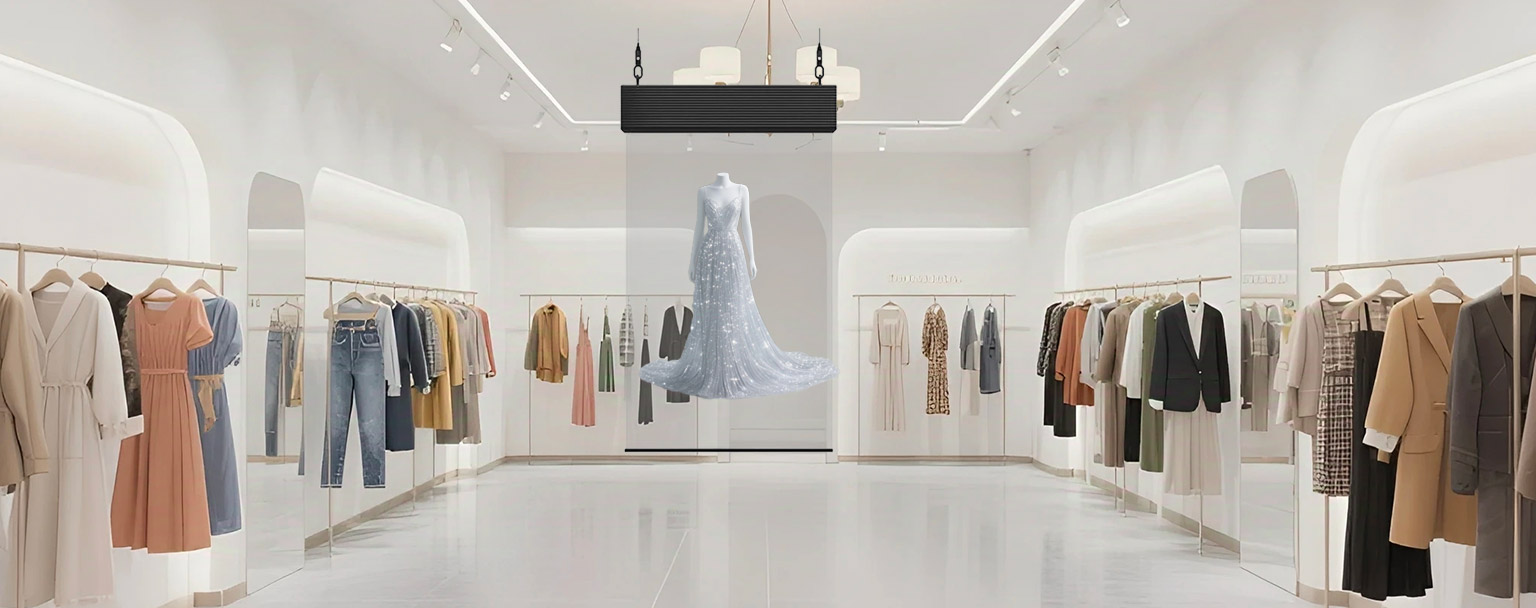

  • Wide Applications: Double-sided holographic screens are ideal for retail Stores, shopping malls, exhibitions, museums, hotels, and airports stations

Built-in Sending Card — True All-in-One Design

The DualView Series comes with a built-in sending card(NovaStar or Colorlight Sending Card), creating a fully integrated, plug-and-play solution. Simply power it on — no external media player required. As an industry-first innovation, this all-in-one design simplifies setup, enhances stability.

Get a Quote

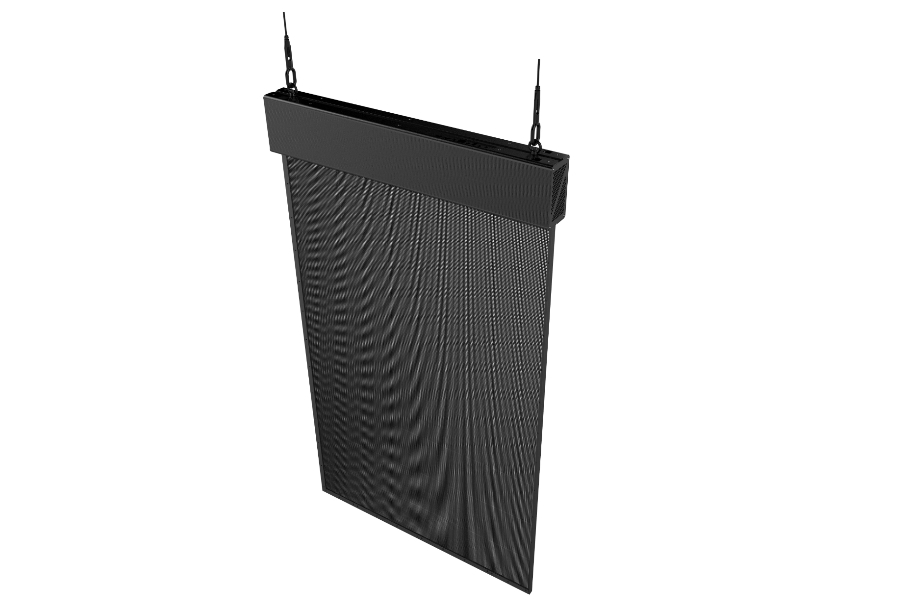

dualview-top

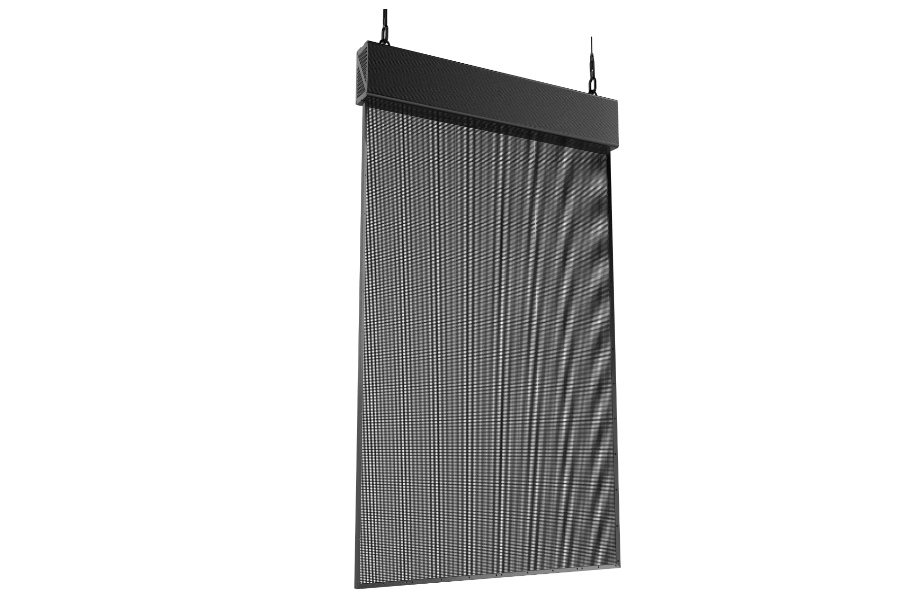

dualview-side

Reinforced Frame with Steel Mesh Protection

The transparent LED displays of Dualview series is surrounded by a robust metal frame and reinforced steel mesh, effectively protecting the LED panel from impact or bending. This durable construction not only prevents breakage but also ensures safe handling, long-term reliability, and peace of mind during installation and transport.

Get a Quote

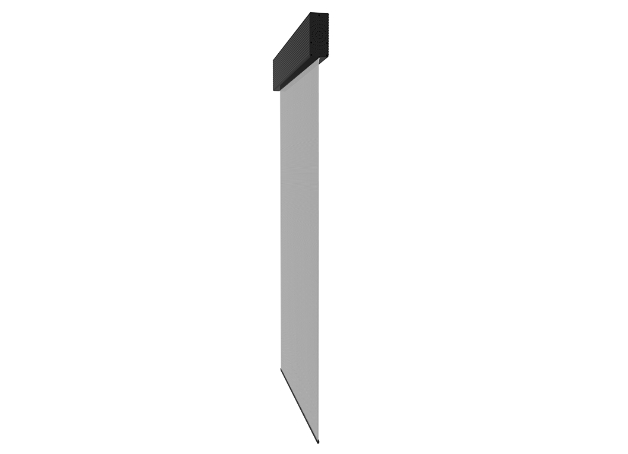

Ultra-Slim and Lightweight Design

Despite its solid construction, DualView Series remains remarkably lightweight.

750 × 1200 mm: 11.5 kg

1000 × 1500 mm: 18 kg

750 × 1500 mm: 14.5 kg

Its slim profile and low weight make it easier to install, suspend, or move. — ideal for retail, exhibitions, and brand showcases where elegance and practicality matter.

Get a Quote
side-dualview
Module
Pixel PitchHorizontal:2.9mm/Vertical: 2.9mmHorizontal:3.91mm/Vertical: 3.91mmHorizontal:2.9mm/Vertical: 2.9mmHorizontal: 3.91mm/Vertical: 3.91mmHorizontal:2.9mm/Vertical: 2.9mmHorizontal: 3.91mm/Vertical: 3.91mm
Pixel Density112896dot/ m²65536dot/ m²112896dot/ m²65536dot/ m²112896dot/ m²65536dot/ m²
Visual Transparency＞80%
Module Size750mm×1200mm1000mm×1500mm750mm×1500mm
Overall Module Size783mm×1329.01mm×77.9mm1033mm×1629mm×77.9mm783mm×1629mm×77.9mm
LED Type1818 (Integrated light drive)2121 (Integrated light drive)1818 (Integrated light drive)2121 (Integrated light drive)1818 (Integrated light drive)2121 (Integrated light drive)
Resolution Ratio252×392pix192×300pix336×492pix256×376pix252×492pix192×376pix
LED Control SystemSynchronous/Asynchronous
BrightnessWhite balance brightness ≥2000cd/㎡; Automatically adjust and manually adjust according to ambient brightnessWhite balance brightness ≥3500cd/㎡; Automatically adjust and manually adjust according to ambient brightnessWhite balance brightness ≥2000cd/㎡; Automatically adjust and manually adjust according to ambient brightnessWhite balance brightness ≥3500cd/㎡; Automatically adjust and manually adjust according to ambient brightnessWhite balance brightness ≥2000cd/㎡; Automatically adjust and manually adjust according to ambient brightnessWhite balance brightness ≥3500cd/㎡; Automatically adjust and manually adjust according to ambient brightness
Viewing AngleHorizontal 160, Vertical 140
Display Thickness3mm3.6mm3mm3.6mm3mm3.6mm
Resumable TransmissionSupported
Average Lifespan≥ 100000 hours
Gray Scale≥16(bit)
White Field Color Temperature5500K-15000K (adjustable)
Drive ModeStatic
Atenuation Rate2 years below 0.05%
Average Fault-Free Working Time≥ 10000 hours
Maximum Power Consumption865w/㎡1292W/ m²865w/㎡1152W/ m²865w/㎡1152W/ m²
Average Power340w/㎡323W/ m²340w/㎡288W/ m²340w/㎡288W/ m²
Power Supply Requirements110V ~ 220V±10%; AC50HZ, three-phase five-wire
Operation Temperature-20℃～+50℃
Working Humidity20% RH ~ 85% RH, no condensation
Storage Temperature-20℃ ~+60℃
Storage Humidity10%RH～85%RH，no condensation
Installation MethodVertical
Packaging MethodCardboard Case/ Plywood Case / Flight Case

2025 New Led Displays Price Check

Get a customized quote that fit your plan !

Send us mail

7 + 0 = ?

FAQ

There is no MOQ requirement for transparent LED displays.

Standard holographic screens are typically ready to ship within 7 working days after order confirmation.
For custom sizes or configurations, lead time may vary depending on project requirements.
Please contact our sales team for the latest production schedule.

All InVisia transparent LED displays come with a 2-year international warranty covering manufacturing defects.
We also provide lifetime technical support and fast replacement service for essential components to ensure long-term reliability.

We offer global shipping via air, sea, or express (DHL / SF Express).
Each LED display is professionally packed in shockproof and moisture-proof cases to guarantee safe arrival.

Absolutely. InVisia provides fully customizable options, including screen dimensions, frame materials, brightness levels, and pixel pitch.
Our sales engineers will recommend the best configuration based on your project’s space, design, and viewing requirements.
