Product model: LP Series

Holographic LED Mesh Panel Parameters

  1. Pixel Pitch: P3.91/P6.25
  2. Panel Size: 250x1025mm/250x1200mm/250x1500mm
  3. Installation Method: support standing & hanging& glass adhesive
  4. Application: window shop, luxury store, retail store, restaurant, exhibition……
Inquiry Now
Inquiry Now

Mesh Panel Feature

  • Multiple pixel pitch and sizes,meet various needs
  • Ultra-light, ultra-thin, soft and bendable
  • Single module sample support,reduce initial purchase costs

Holographic Invisible LED Screen

High brightness, high color gamut, and controllable color temperature allow you to experience transparent colors.

Superb Transparency

The Holographic Transparent LED Display features a grid-like structure with transparent modules that let light pass through, minimizing background obstruction. It ensures clear visuals while maintaining space openness and depth.

Feature of Mesh Panel

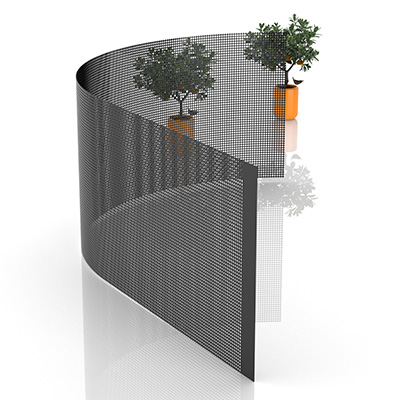

Bendable and Cuttable, designed for flexibility, our displays can be bent and cut to fit any space, offering endless design possibilities.

Ultra-Light & Super Thin

  • Thickness:1.8mm
  • Single Module Weight: 1.04kg/㎡
  • Bendable and Cuttable: applicable to curved glass/heterosexual screens

High Brightness & High Fresh Rate

  • Brightness: 5000-6000 nits
  • Drive Mode: Static Scan with FHD Display Effect, Integrated lamp driver
  • High Fresh Rate: 7680 Hz
  • Contrast Ratio:9000:1

Multiple Installation Method

Supports standing, hanging, and glass adhesive installation. Flexible installation options allow easy integration into any space.

Multiple Installation Method

Supports standing, hanging, and glass adhesive installation. Flexible installation options allow easy integration into any space.

ModelLP-P3.91-1025LP-P3.91-1200LP-P3.91-1500LP-P6.25-1025LP-P6.25-1200LP-P6.25-1500
Module
Pixel PitchHorizontal: 3.91mm/Vertical: 3.91mmHorizontal: 6.25mm/Vertical: 6.25mm
Pixel Density65536dot/ m²25600dot/ m²
Visual Transparency＞90%＞80%>80%＞80%＞90%＞90%
Module Size1025mm*250mm1200mm*250mm1500mm*250mm1025mm*250mm1200mm*250mm1500mm*250mm
Overall Module Size1045mm*250mm*72mm1220mm*250mm*72mm1520mm*250mm*72mm1045mm*250mm*72mm1220mm*250mm*72mm1520mm*250mm*72mm
LED Type2121 (Integrated light drive)
Weight1.04kg1.11kg1.21kg1.07kg1.11kg1.21kg
Resolution Ratio256x64pix300x64pix372x64pix160x40pix188x40pix232x40pix
LED Control SystemSynchronous/Asynchronous
BrightnessWhite balance brightness 3500cd/㎡; Automatically adjust and manually adjust according to ambient brightnessWhite balance brightness3000cd/㎡; Automatically adjust and manually adjust according to ambient brightnessWhite balance brightness 2500cd/㎡; Automatically adjust and manually adjust according to ambient brightnessWhite balance brightness 3500cd/㎡; Automatically adjust and manually adjust according to ambient brightnessWhite balance brightness 3000cd/㎡; Automatically adjust and manually adjust according to ambient brightnessWhite balance brightness 3000cd/㎡; Automatically adjust and manually adjust according to ambient brightness
Viewing AngleHorizontal 160, Vertical 140
Display Thickness1.8mm
Resumable TransmissionSupported
Average Lifespan≥ 100000 hours
Gray Scale≥16(bit)
White Field Color Temperature5500K-15000K (adjustable)
Drive ModeStatic
Atenuation Rate2 years below 0.05%
Lifespan≥100,000.00 hours
Maximum Power Consumption1200W/ m²
Average Power Consumption450W/ m²
Power Supply Requirements110V ~ 220V±10%; AC50HZ, three-phase five-wire
Operation Temperature-20℃～+50℃
Working Humidity20% RH ~ 85% RH, no condensation
Storage Temperature-20℃ ~+60℃
Storage Humidity10%RH～85%RH，no condensation
Installation MethodWall mount installation, glass adhesive, hanging, stacking, suitable for curved installations, supports cutting to any size
Packaging MethodCardboard Case/ Plywood Case / Flight Case
Download
Declaration: The relevant parameters in the table are updated in real time, and the data is for reference only. No further notice will be given if there are any upgrades.
