Product model: DP Series
Plug & Play Dual-sided Mesh Digital Signage
- Pixel Pitch: P3.91 / P6.25
- Standard Size Options: 750 × 1200 mm / 1000 × 1500 mm (W × H)
- Installation Method: Hanging
- Applications: Shop windows, luxury boutiques, retail stores, clothing stores, restaurants, exhibitions, and more
Product Features
- Industry’s First Ultra-Thin Holographic LED Display
Only 3.6 mm thick, setting a new benchmark for lightweight, transparent displays.
- High Brightness & High Transparency
Delivers 3,500 nits of brightness with over 80% transparency for stunning, vivid visuals.
- Double-Sided Exposure
Maximizes visibility and enhances advertising ROI by reaching audiences on both sides.

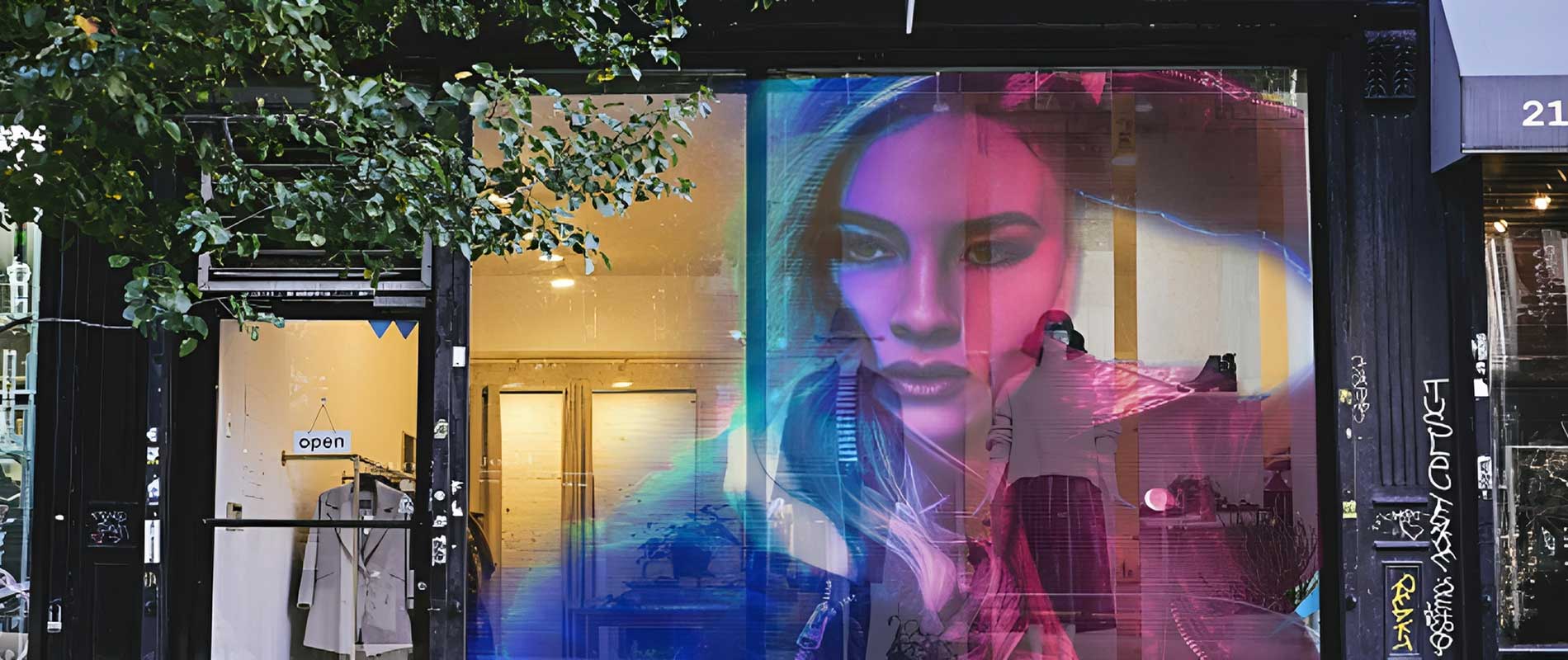

- A New Choice for Fashion Window Displays
Revolutionizing retail spaces with modern, eye-catching holographic solutions.
Holographic Invisible LED Screen
High brightness, high color gamut, and controllable color temperature allow you to experience transparent colors.
Superb Transparency
The holographic transparent LED display utilizes a grid-like structure with highly transparent modules, allowing over 80% of natural light to pass through. This design minimizes background obstruction, delivering vivid visuals while preserving spatial openness and depth.
Features of Product
- Module No.: LP-P3.91-1200 / LP-P3.91-1500
- Module Size: 250 × 1200 mm / 250 × 1500 mm
- Module Resolution: 64 (W) × 300 (H) pixels / 64 (W) × 376 (H) pixels
- Screen Resolution:
750 × 1200 mm: 192 (W) × 300 (H) pixels per side
1000 × 1500 mm: 256 (W) × 376 (H) pixels per side
Innovative Design Highlights
- Ultra-Thin Design (Only 3.6mm): Sleek and streamlined profile, offering a modern and unobtrusive visual experience.
- Dual-Sided Display: Maximizes exposure and audience engagement with content visible from both sides.
- Transparent Visuals: Maintains over 80% transparency for bright, open, and immersive display effects.
- Energy-Efficient & Lightweight: Designed for low power consumption and easy installation, reducing operational costs.
Explore More Details
- Standard Integrated Display: Built-in T50 sending card for true plug-and-play operation, ensuring quick and easy setup.
- Bottom Straight Bar Design: Engineered for enhanced wind resistance, providing greater stability in various environments
Standard Hanging Installation
Equipped with standardized hanging components, enabling fast, secure, and effortless installation across a wide range of environments.
Standard Hanging Installation
Equipped with standardized hanging components, enabling fast, secure, and effortless installation across a wide range of environments.
Technical Parameters:
| Model | DP-750W-1200H | LP-1000W-1500H |
| Module |  |  |
| Pixel Pitch | Horizontal: 3.91mm/Vertical: 3.91mm | |
| Pixel Density | 65536dot/ m² | |
| Visual Transparency | ＞80% | |
| Module Size | 750mm*1208mm | 1000mm*1508mm |
| Overall Module Size | 765mm*1350mm*74mm | 1065mm*1650mm*74mm |
| LED Type | 2121 (Integrated light drive) | |
| Resolution Ratio | 192x300pix | 256x376pix |
| LED Control System | Synchronous/Asynchronous | |
| Brightness | White balance brightness 3500cd/㎡; Automatically adjust and manually adjust according to ambient brightness | White balance brightness3000cd/㎡; Automatically adjust and manually adjust according to ambient brightness |
| Viewing Angle | Horizontal 160, Vertical 140 | |
| Display Thickness | 3.6mm | |
| Resumable Transmission | Supported | |
| Average Lifespan | ≥ 100000 hours | |
| Gray Scale | ≥16(bit) | |
| White Field Color Temperature | 5500K-15000K (adjustable) | |
| Drive Mode | Static | |
| Atenuation Rate | 2 years below 0.05% | |
| Lifespan | ≥100,000.00 hours | |
| Maximum Power Consumption | 1335W/ m² | 1068W/ m² |
| Average Power Consumption | 450W/ m² | |
| Power Supply Requirements | 110V ~ 220V±10%; AC50HZ, three-phase five-wire | |
| Operation Temperature | -20℃～+50℃ | |
| Working Humidity | 20% RH ~ 85% RH, no condensation | |
| Storage Temperature | -20℃ ~+60℃ | |
| Storage Humidity | 10%RH～85%RH，no condensation | |
| Installation Method | Hanging | |
| Packaging Method | Cardboard Case/ Plywood Case / Flight Case | |
| Download | ||
| Declaration: The relevant parameters in the table are updated in real time, and the data is for reference only. No further notice will be given if there are any upgrades. | ||
Product Categories
There are various types of products, which can be framed, wall-mounted/glass adhesive, hanging, stacking, and can be made into curved installations.
