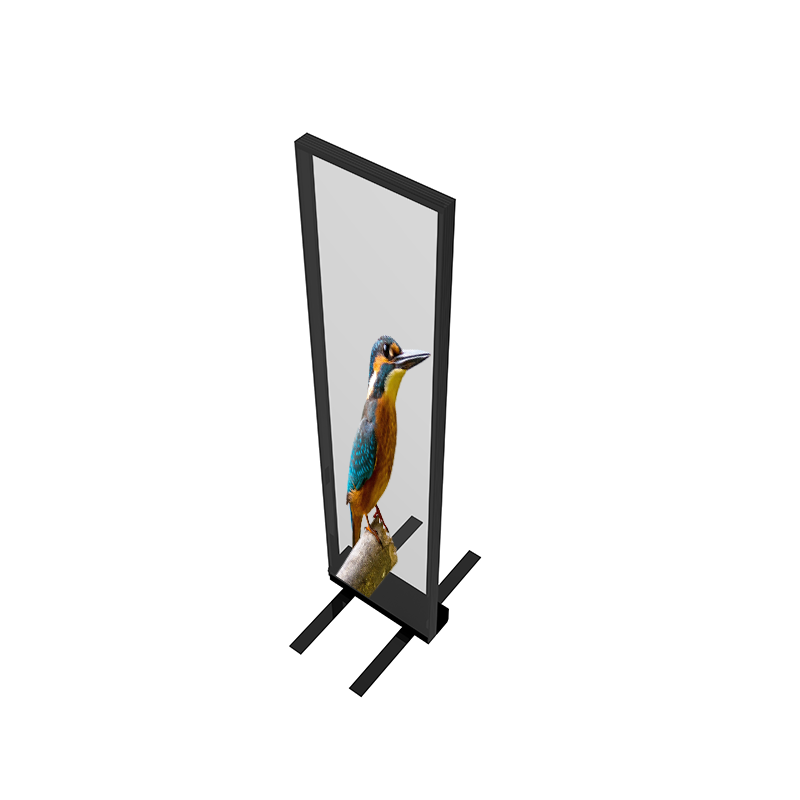

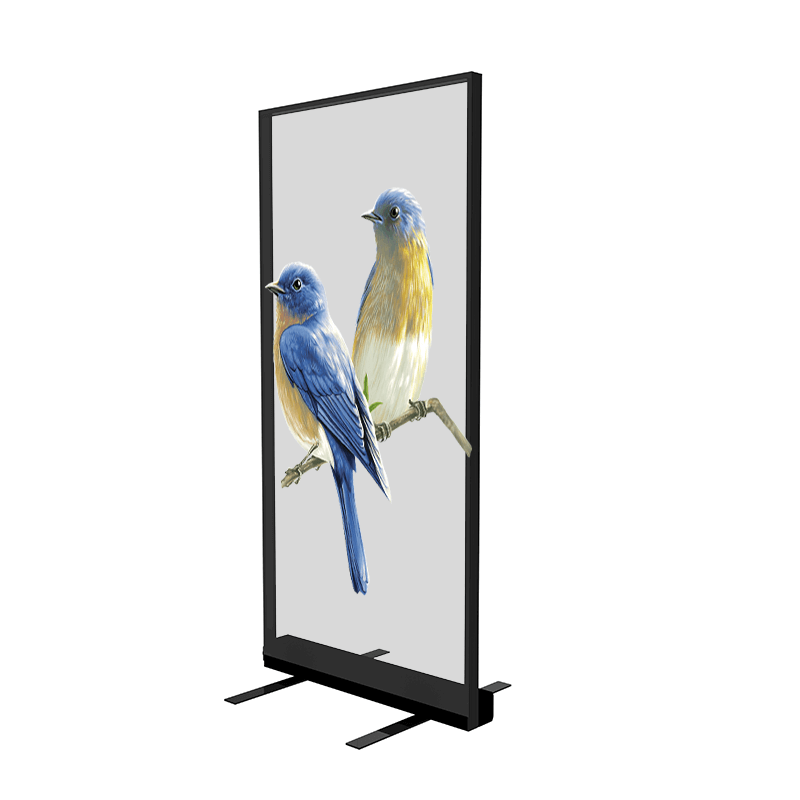

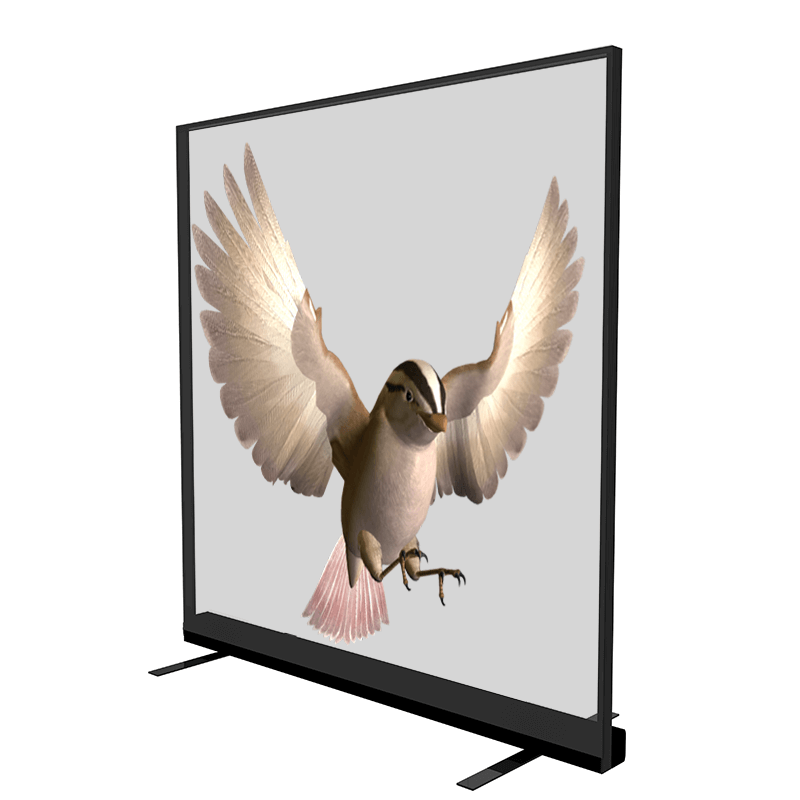

LP – Framed Series
- Lightweight,its single model is only 1.04kg/sqm ; Thin, only 1.8mm thickness; Transparent, over 90% transparency rate.
- Soft and adaptable to curvature, which can bend, cut, suitable for curved glass/irregular screens.
- Floating images, 3D holographic and spatial suspension display.
- Integrated lamp driving and static scanning for stable image; Equal pixel pitch for image quality; 16-bit grayscale level for rich and delicate colors.
- 9000:1 High contrast，5000cd/sqm Ultra-high brightness, dazzling and eye-catching.
Product Feature:
The holographic invisible LED screen is in a grid shape and uses specially designed transparent LED display elements so that light can penetrate the display screen without causing obvious obstruction to the background. This display element combines LED technology and optical principles to achieve a balance between transparency and display effects by controlling the propagation path and reflection of light.

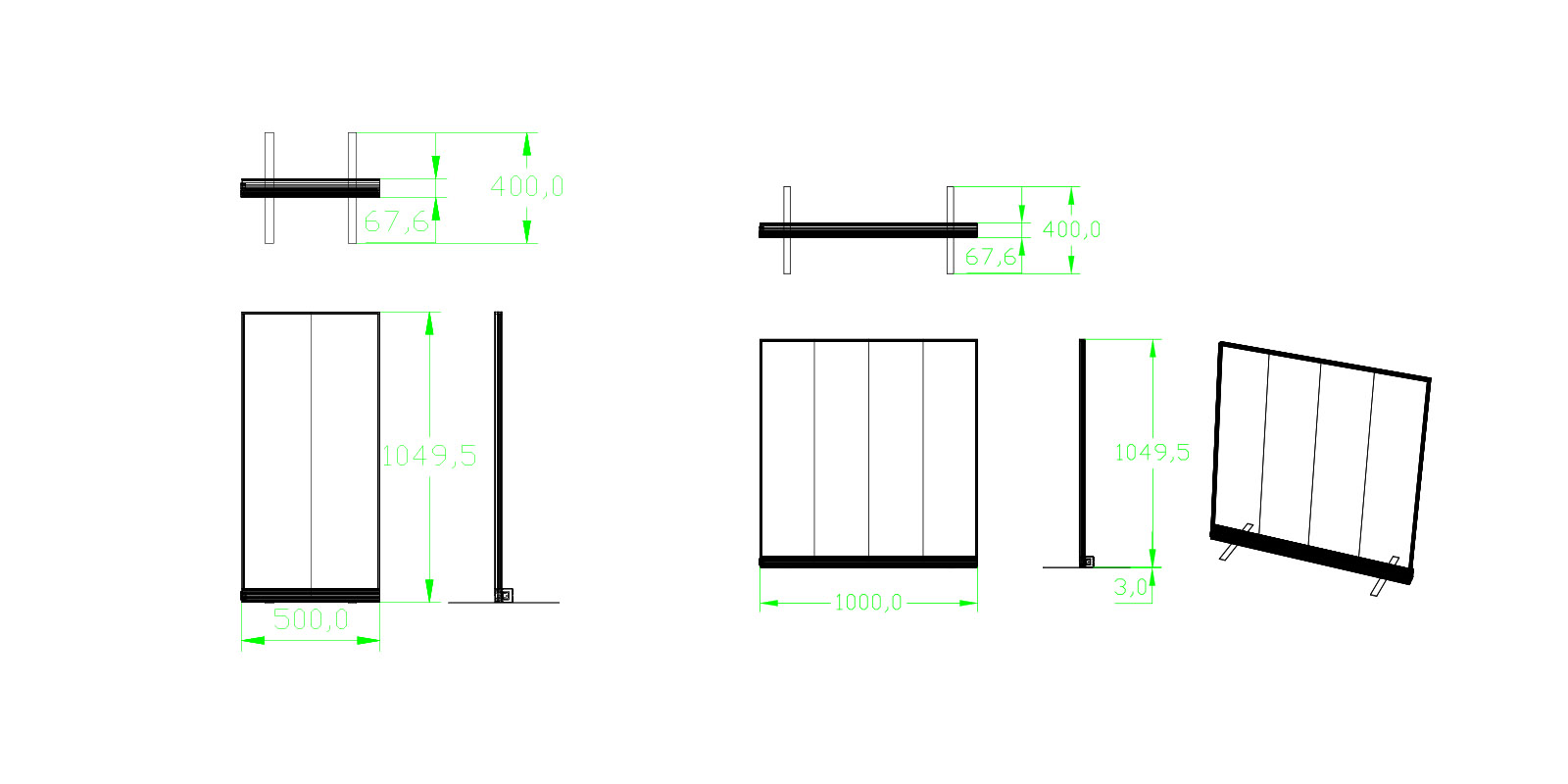

LP – Framed Series Dimensional Drawing
LP – Framed Series the length options are 250mm, 500mm, 750mm, and 1000mm, while the height options are 1000mm, 1200mm, and 1500mm.

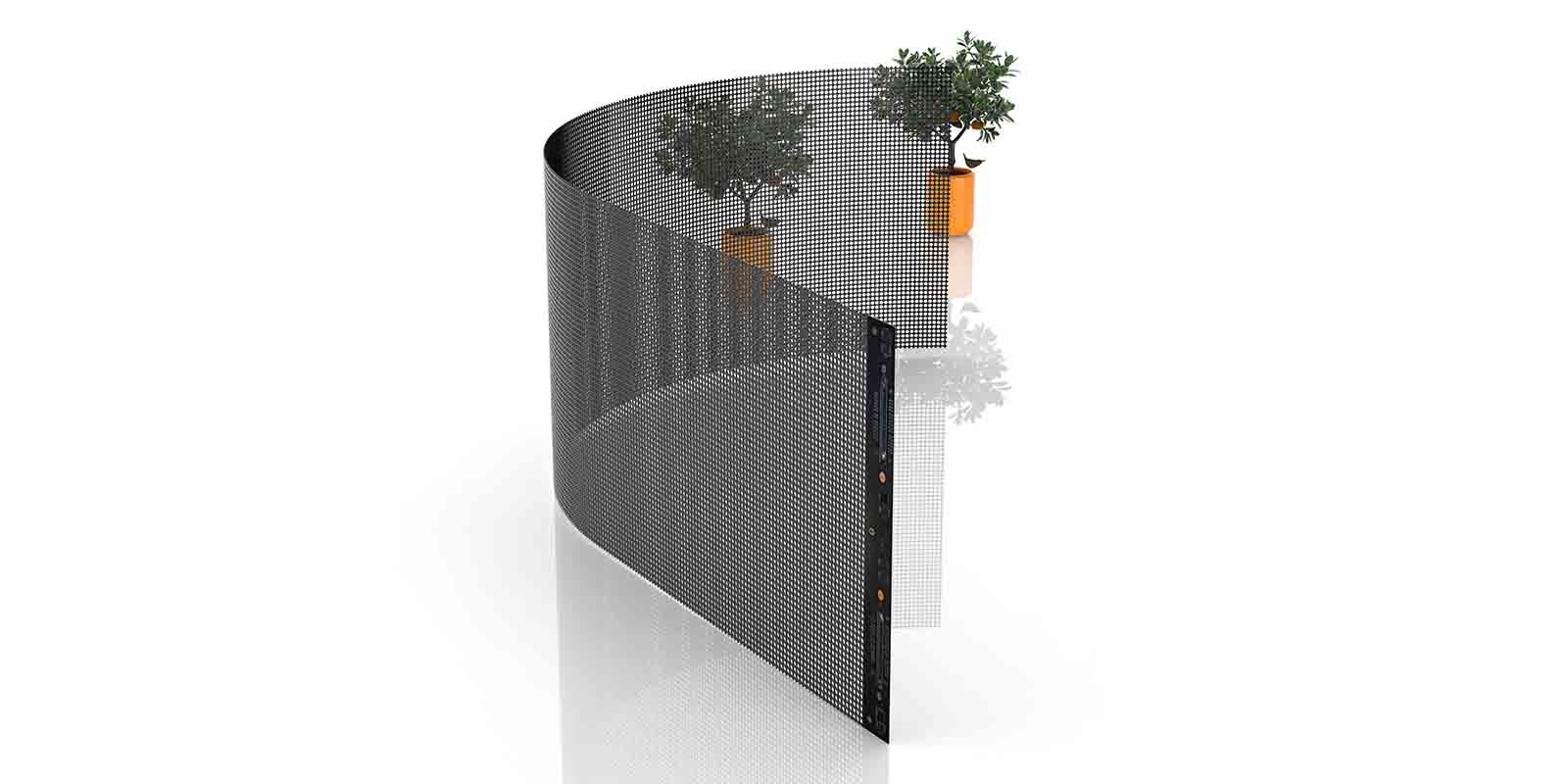

Superb Transparency
The holographic transparent LED display utilizes a grid-like structure with highly transparent modules, allowing over 80% of natural light to pass through. This design minimizes background obstruction, delivering vivid visuals while preserving spatial openness and depth.

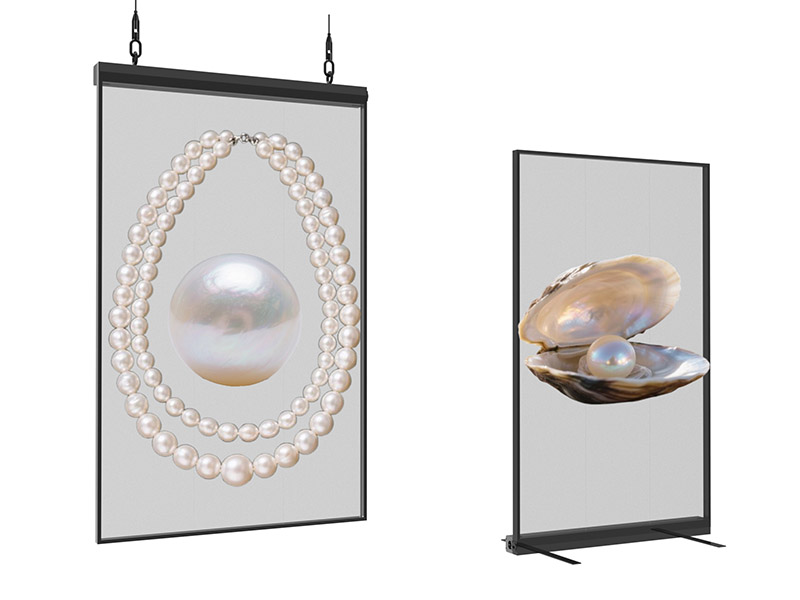

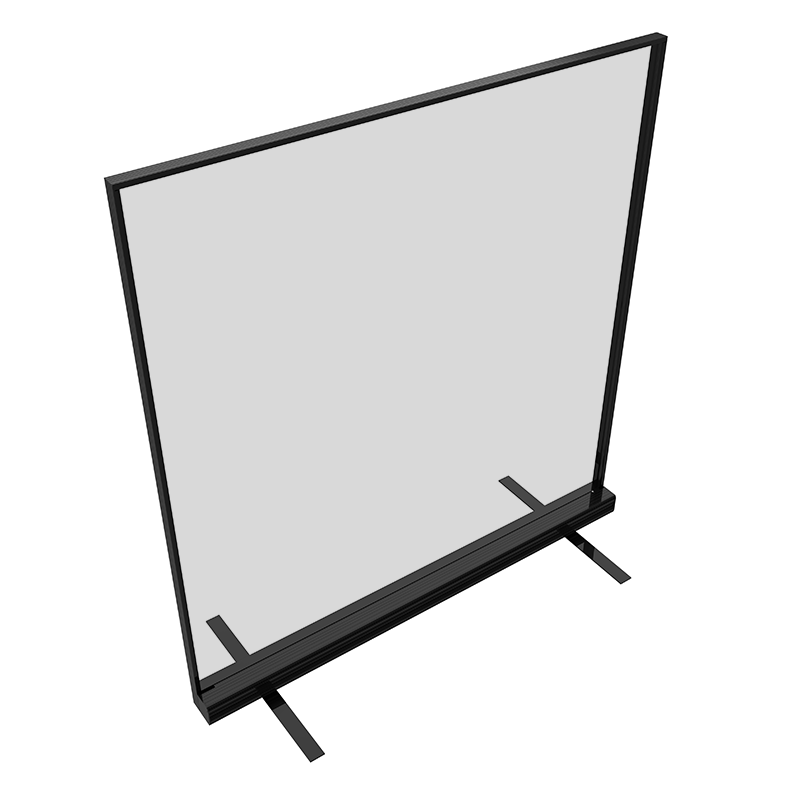

Suspended or Standing
A sample can be used vertically or suspended to meet different usage scenarios
Show it to the Customers Anytime and Anywhere
The small prototype, exquisite and portable packaging, allows you to take it anywhere and show it to your customers anytime, anywhere.

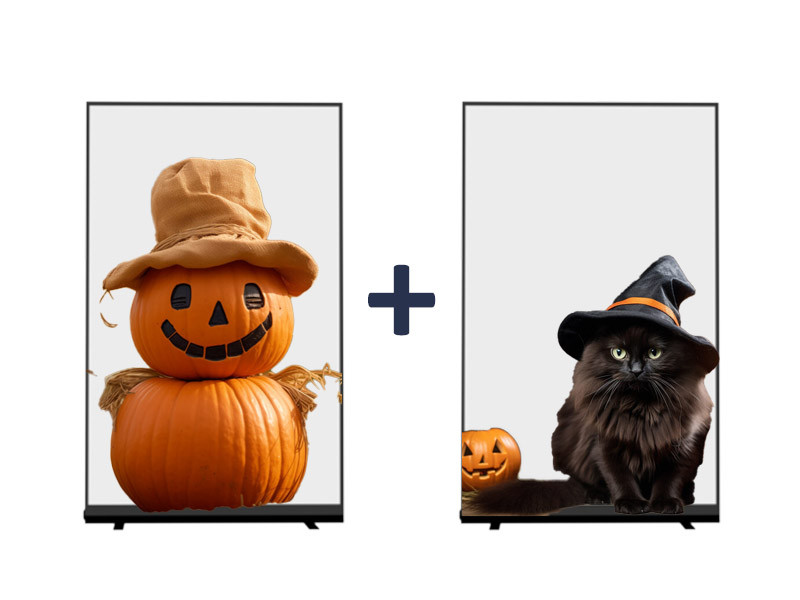

Multiple Units Can Be Spliced Together
The frames of the LP framed series are designed with splicing holes, you can splice them horizontally or vertically if you need.
Easy to Install
The lamp beads are tightly arranged and distributed, and the installation is extremely simple. Compared with various film screen products in the market, the holographic invisible LED screen has higher brightness, durability and stability without yellowing, no frame and keel, and higher proportional pixel quality.
Easy to Install
The lamp beads are tightly arranged and distributed, and the installation is extremely simple. Compared with various film screen products in the market, the holographic invisible LED screen has higher brightness, durability and stability without yellowing, no frame and keel, and higher proportional pixel quality.
Technical Parameters:
| Model | LPF3.91-1025×250 | LPF3.91-1025×500 | LPF3.91-1025×750 | LPF3.91-1025×1000 | LPF3.91-1200×250 | LPF3.91-1200×500 | LPF3.91-1200×750 | LPF3.91-1200×1000 | LPF3.91-1500×250 | LPF3.91-1500×500 | LPF3.91-1500×750 | LPF3.91-1500×1000 |
| Module |  |  |  |  |  |  |  |  |  |  |  |  |
| Pixel Pitch | Horizontal: 3.91mm/Vertical: 3.91mm | |||||||||||
| Pixel Density | 65536dot/ m² | |||||||||||
| Visual Transparency | ＞80% | |||||||||||
| Module Size | 1025mm × 250mm | |||||||||||
| Overall Module Size | 1025mm×250mm×67mm | 1025mm×500mm×67mm | 1025mm×750mm×67mm | 1025mm×1000mm×67mm | 1200mm×250mm×67mm | 1200mm×500mm×67mm | 1200mm×750mm×67mm | 1200mm×1000mm×67mm | 1500mm×250mm×67mm | 1500mm×500mm×67mm | 1500mm×750mm×67mm | 1500mm×1000mm×67mm |
| LED Type | 2121 (Integrated light drive) | |||||||||||
| Weight | 2.05kg | 3.45kg | 4.8kg | 6.25kg | 2.3kg | 3.9kg | 5.55kg | 7.2kg | 2.6kg | 4.35kg | 6.15kg | 7.95kg |
| Resolution Ratio | 256 × 64pix | 256 × 128pix | 256 × 192pix | 256 × 256pix | 300 × 64pix | 300 × 128pix | 300 × 192pix | 300 × 256pix | 376 × 64pix | 376 × 128pix | 376 × 192pix | 376 × 256pix |
| LED Control System | Synchronous/Asynchronous | |||||||||||
| Brightness | White balance brightness 4000cd/㎡; Automatically adjust and manually adjust according to ambient brightness | White balance brightness 3000cd/㎡; Automatically adjust and manually adjust according to ambient brightness | ||||||||||
| Viewing Angle | Horizontal 160, Vertical 140 | |||||||||||
| Display Thickness | 1.8mm | |||||||||||
| Resumable Transmission | Supported | |||||||||||
| Average Lifespan | ≥ 100000 hours | |||||||||||
| Gray Scale | ≥16(bit) | |||||||||||
| White Field Color Temperature | 5500K-15000K (adjustable) | |||||||||||
| Drive Mode | Static | |||||||||||
| Atenuation Rate | 2 years below 0.05% | |||||||||||
| Lifespan | ≥100,000.00 hours | |||||||||||
| Maximum Power Consumption | 1200W/ m² | 960W/ m² | ||||||||||
| Average Power Consumption | 420W/ m² | 336W/ m² | ||||||||||
| Power Supply Requirements | 110V ~ 220V±10%; AC50HZ, three-phase five-wire | |||||||||||
| Operation Temperature | -20℃～+50℃ | |||||||||||
| Working Humidity | 20% RH ~ 85% RH, no condensation | |||||||||||
| Storage Temperature | -20℃ ~+60℃ | |||||||||||
| Storage Humidity | 10%RH～85%RH，no condensation | |||||||||||
| Installation Method | Wall mount installation, glass adhesive, hanging, stacking, suitable for curved installations, supports cutting to any size | |||||||||||
| Packaging Method | Cardboard Case/ Plywood Case / Flight Case | |||||||||||
| Download | ||||||||||||
| Declaration: The relevant parameters in the table are updated in real time, and the data is for reference only. No further notice will be given if there are any upgrades. | ||||||||||||
