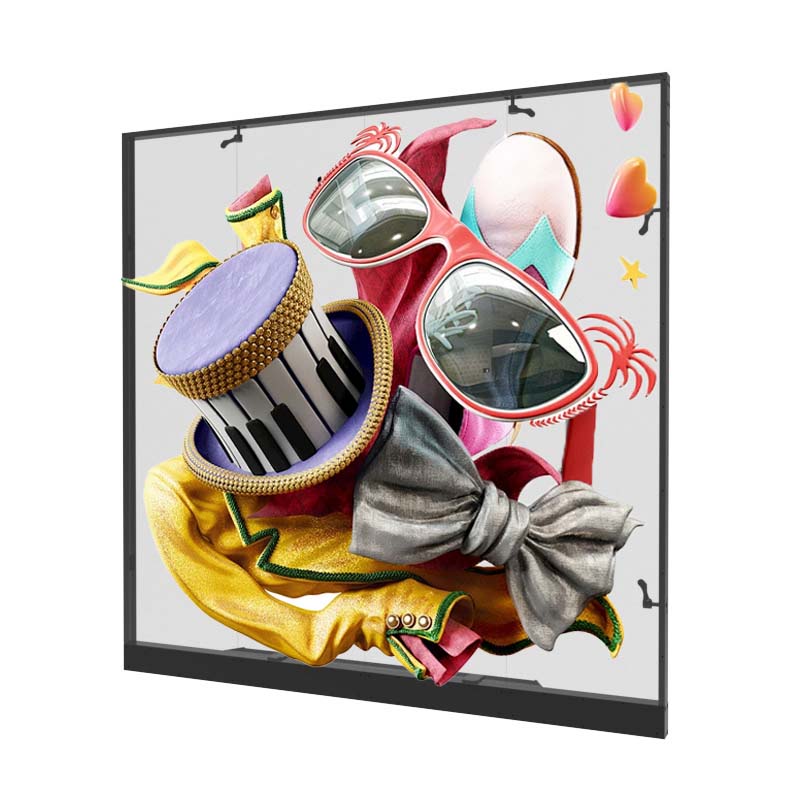

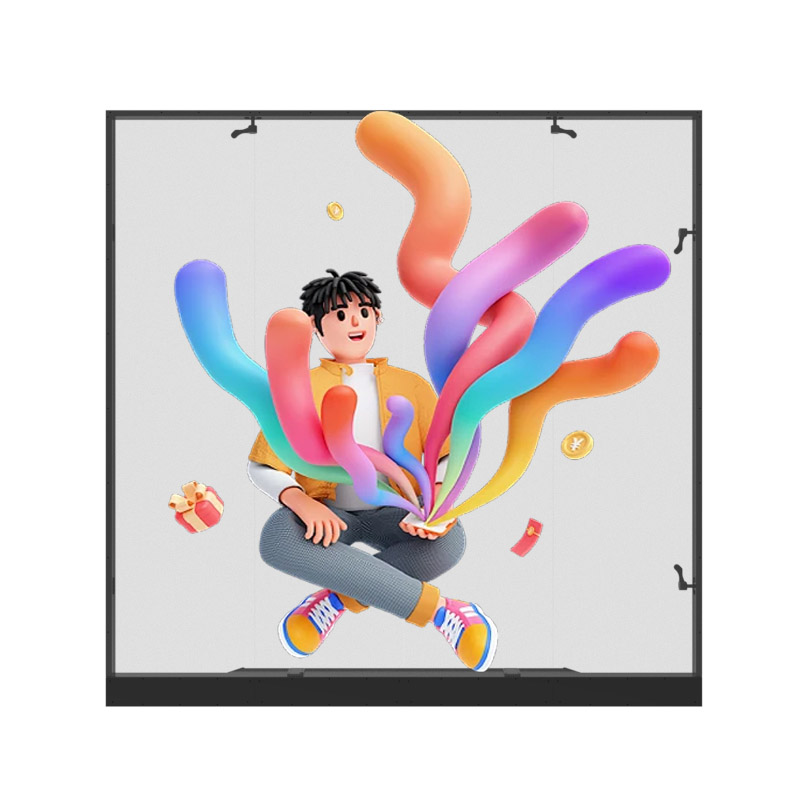

Holographic vitra series

Lightweight,its single model is only 1.11kg/sqm ; Thin, only 1.8mm thickness; Transparent, over 80% transparency rate.
Soft and adaptable to curvature, which can bend, cut, suitable for curved glass/irregular screens.

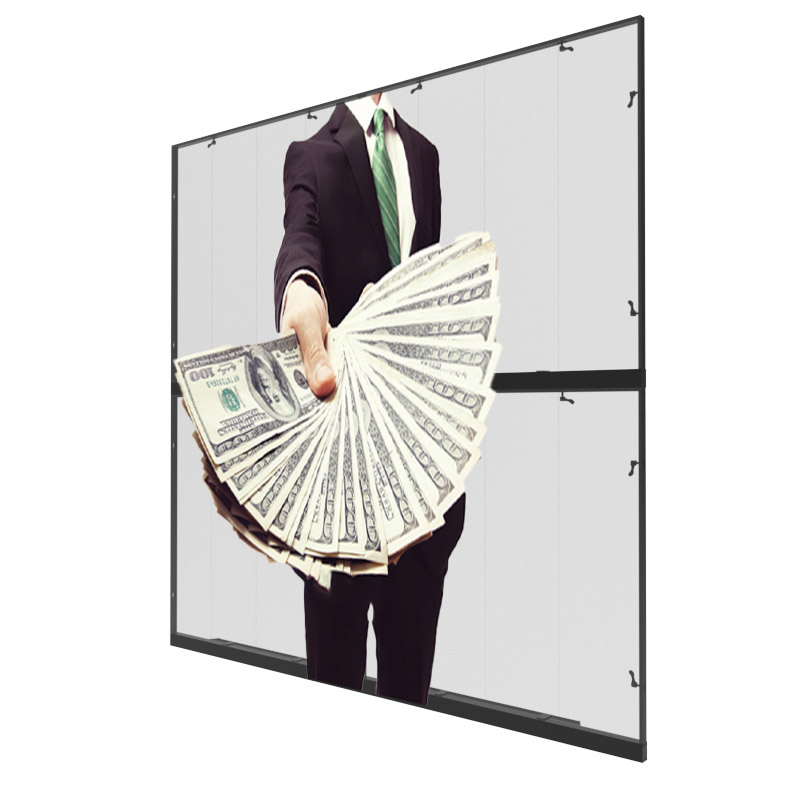

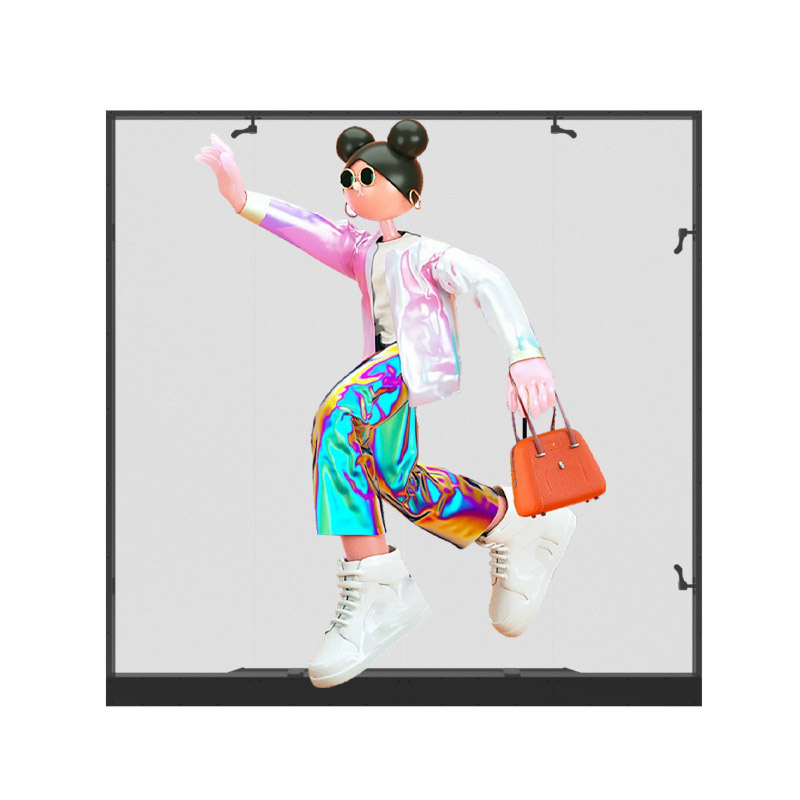

Floating images, 3D holographic and spatial suspension display.
Integrated lamp driving and static scanning for stable image; Equal pixel pitch for image quality; 16-bit grayscale level for rich and delicate colors.
9000:1 High contrast，5000cd/sqm Ultra-high brightness, dazzling and eye-catching.

Product Feature:

The holographic invisible LED screen is in a grid shape and uses specially designed transparent LED display elements so that light can penetrate the display screen without causing obvious obstruction to the background. This display element combines LED technology and optical principles to achieve a balance between transparency and display effects by controlling the propagation path and reflection of light.

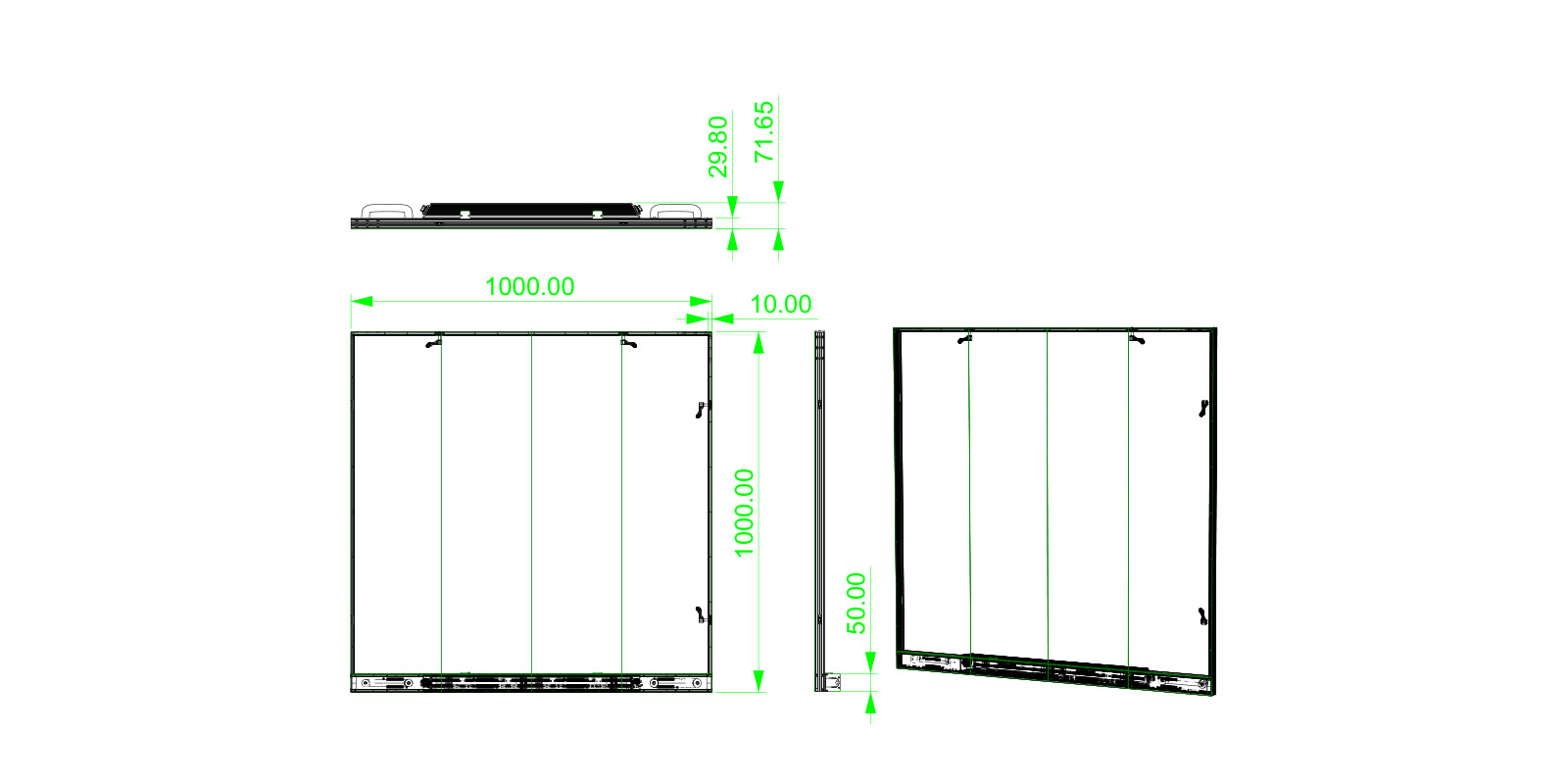

Holographic Vitra Series Dimensional Drawing

The box size is 1000 × 1000mm, with full-screen display, and there are two types of spacing: 3.9mm and 6.25mm

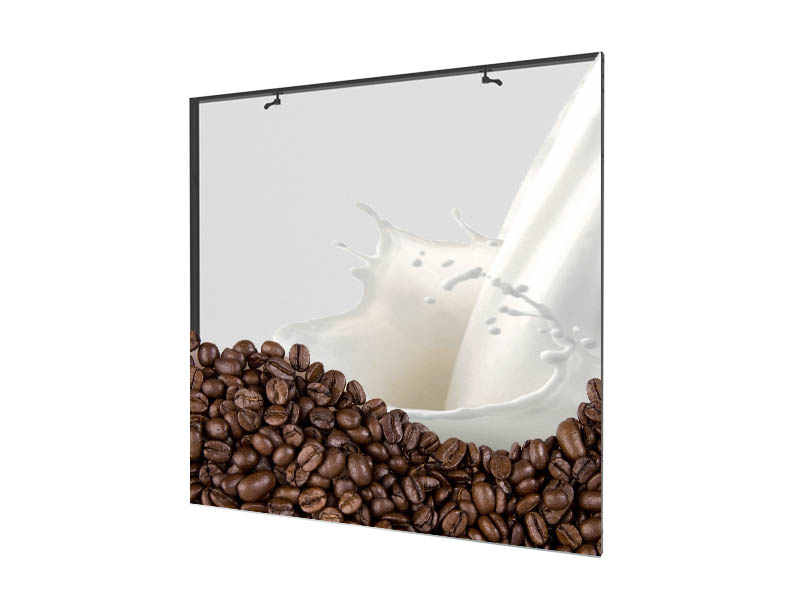

Superb Transparency

The holographic transparent LED display utilizes a grid-like structure with highly transparent modules, allowing over 80% of natural light to pass through. This design minimizes background obstruction, delivering vivid visuals while preserving spatial openness and depth.

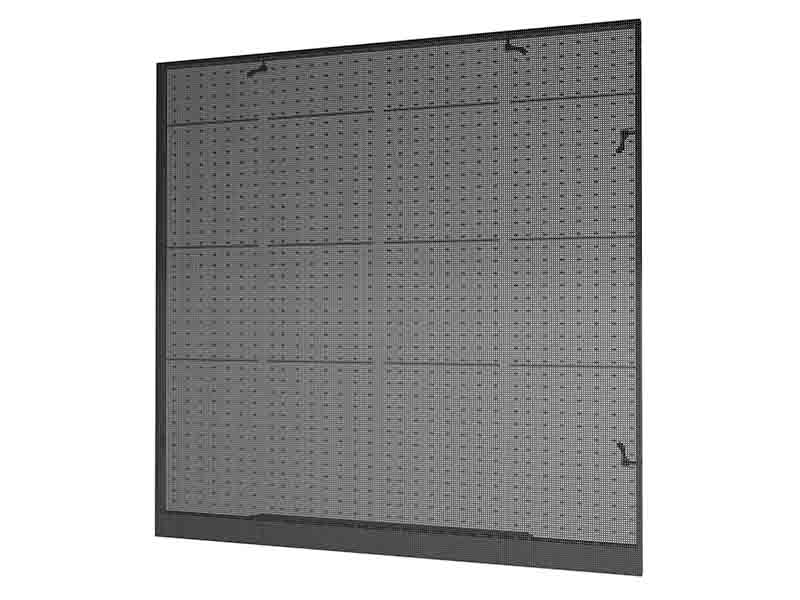

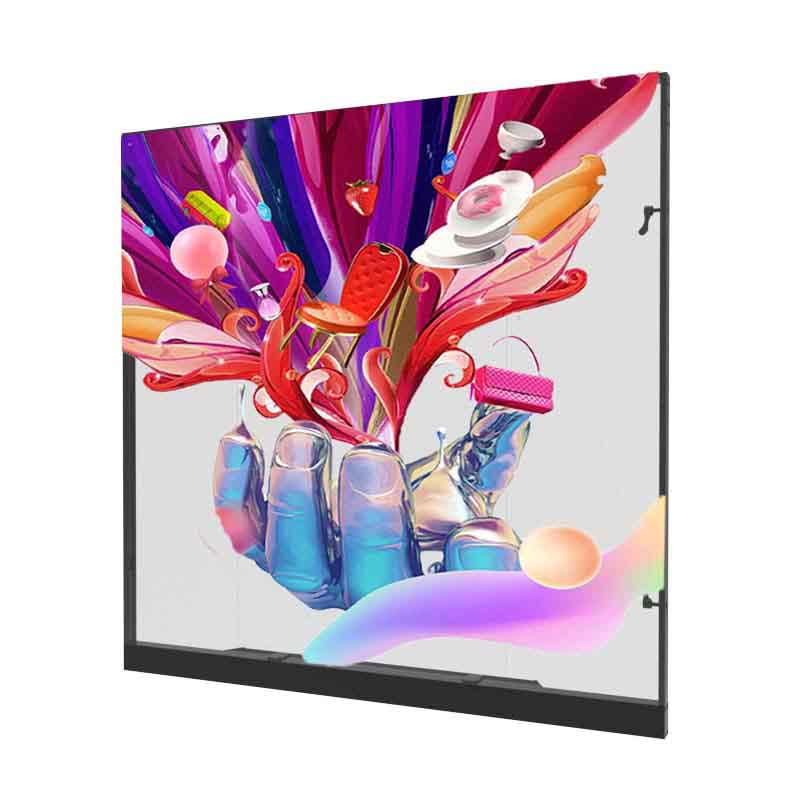

Full Screen Display Without Black Edges

The rental screen uses a full-screen display light board, no black edges, and a more invisible structure

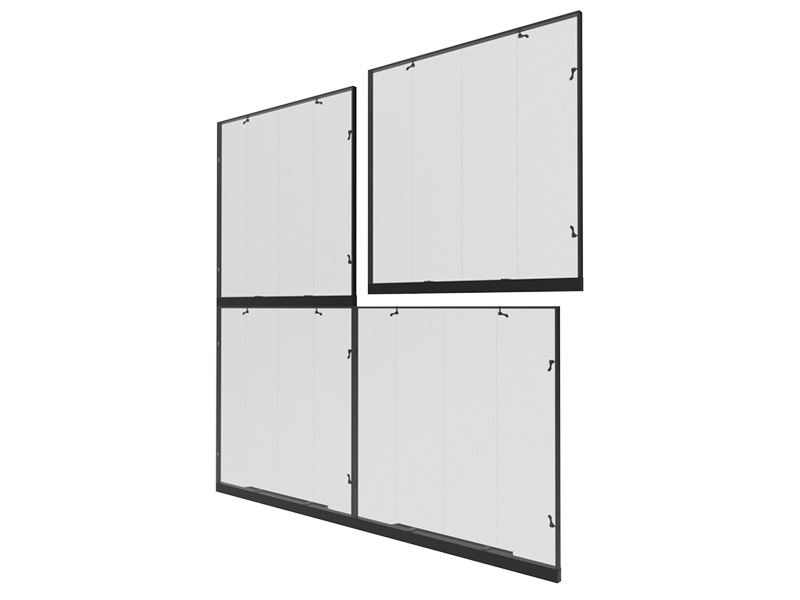

Efficient Splicing Solution

The quick lock is applied in the frame design, making the splicing between screens more convenient, fast and flexible.

Two types of light board drive modes are available

Two types of light boards: integrated light and separate light, for you to choose

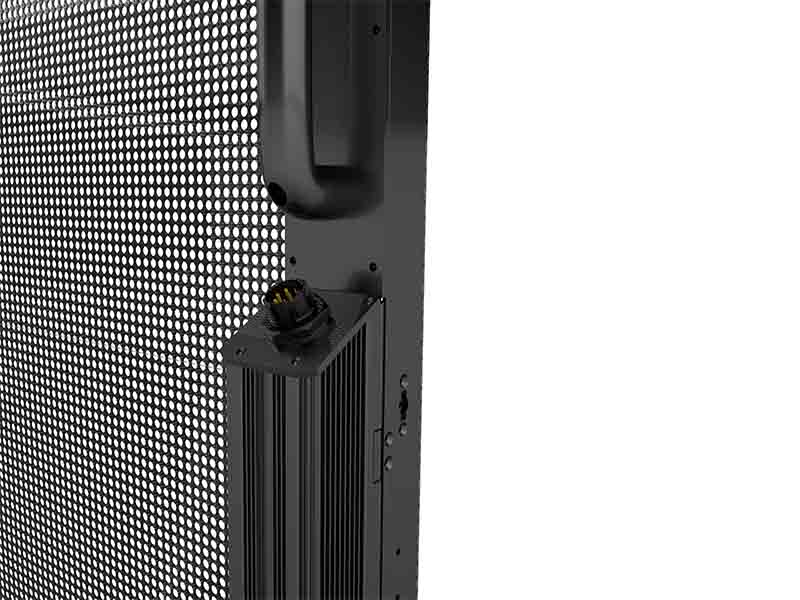

Network and Electricity Integration, Plug and Play

Two types of light boards: integrated light and separate light, for you to choose

Technical Parameters:

LED Driving Method	Integrated LED and Driver		Separate LED and Driver
Model	IVin-3.9-500R	IVin-3.9-1000R	IV3.9-500R	IV3.9-1000R	IV4.8-500R	IV4.8-1000R
Module
Pixel Pitch	Horizontal: 3.91mm/Vertical: 3.91mm				Horizontal: 4.8mm/Vertical: 4.8mm
Pixel Density	65536dot/ m²				43264dot/ m²
Visual Transparency	＞80%		＞70%
Module Size	1000mm×250mm	1000mm×250mm	1000mm×250mm	1000mm×250mm	1000mm×250mm	1000mm×250mm
Overall Module Size	1000mm×500mm×73mm	1000mm×1000mm×73mm	1000mm×500mm×73mm	1000mm×1000mm×73mm	1000mm×500mm×73mm	1000mm×1000mm×73mm
LED Type	SMD2121		SMD1415		SMD1921
Weight	3KG	6KG	3.5KG	7KG	3.38kg	6.74kg
Resolution Ratio	256×128pix	256×256pix	256×128pix	256×256pix	208×104pix	208×208pix
LED Control System	Synchronous/Asynchronous
Brightness	White balance brightness 4000cd/㎡; Automatically adjust and manually adjust according to ambient brightness	White balance brightness 4000cd/㎡; Automatically adjust and manually adjust according to ambient brightness	White balance brightness 4500cd/㎡; Automatically adjust and manually adjust according to ambient brightness	White balance brightness 4500cd/㎡; Automatically adjust and manually adjust according to ambient brightness	White balance brightness 3500cd/㎡; Automatically adjust and manually adjust according to ambient brightness	White balance brightness 3500cd/㎡; Automatically adjust and manually adjust according to ambient brightness
Viewing Angle	Horizontal 160, Vertical 140
Display Thickness	1.8mm		1.5mm
Scanning	16 scans		16 scans		13 scans
Average Lifespan	≥ 100000 hours
Gray Scale	≥16(bit)
White Field Color Temperature	5500K-15000K (adjustable)
Drive Mode	Dynamic
Atenuation Rate	2 years below 0.05%
Lifespan	≥100,000.00 hours
Maximum Power Consumption	640W/ m²
Average Power Consumption	224W/ m²
Power Supply Requirements	200V ~ 240V±10%; AC50HZ, three-phase five-wire
Operation Temperature	-20℃～+50℃
Working Humidity	20% RH ~ 85% RH, no condensation
Storage Temperature	-20℃ ~+60℃
Storage Humidity	10%RH～85%RH，no condensation
Installation Method	Wall mount installation, glass adhesive, hanging, stacking, suitable for curved installations, supports cutting to any size
Packaging Method	Cardboard Case/ Plywood Case / Flight Case
Download
Declaration: The relevant parameters in the table are updated in real time, and the data is for reference only. No further notice will be given if there are any upgrades.
