Product model: DP Series
HOLOGRAPHIC INVISIBLE LED SCREEN
- Lightweight,its single model is only 1.21kg/sqm ; Thin, only 1.8mm thickness; Transparent, over 90% transparency rate.
- Soft and adaptable to curvature, which can bend, cut, suitable for curved glass/irregular screens.
- Floating images, 3D holographic and spatial suspension display.
- Integrated lamp driving and static scanning for stable image; Equal pixel pitch for image quality; 16-bit grayscale level for rich and delicate colors.
- 9000:1 High contrast，5000cd/sqm Ultra-high brightness, dazzling and eye-catching.
Product Feature:
The holographic invisible LED screen is in a grid shape and uses specially designed transparent LED display elements so that light can penetrate the display screen without causing obvious obstruction to the background. This display element combines LED technology and optical principles to achieve a balance between transparency and display effects by controlling the propagation path and reflection of light.
Holographic Invisible LED Screen
High brightness, high color gamut, and controllable color temperature allow you to experience transparent colors.
Superb Transparency
The holographic invisible LED screen is in a grid shape and uses specially designed transparent LED display elements so that light can penetrate the display screen without causing obvious obstruction to the background. This display element combines LED technology and optical principles to achieve a balance between transparency and display effects by controlling the propagation path and reflection of light.
Feature of Product
The application of double-sided advertising machines can display different contents simultaneously on the screens of both sides, which makes the coverage of advertisements wider and greatly enhances the publicity effect.
Light, Thin, Soft
The double-sided advertising machine application can simultaneously display different contents on the front and back screens. The thin and transparent display screen has a high light transmittance and clarity. The thin and transparent technology enhances the durability of the display screen and reduces screen wear and damage caused by long-term use.
High Brightness, High Color, Suspended Image Effect
The double-sided advertising machines can display both product information and promotional activities at large shopping malls and other places. In subway stations, bus stops and other public areas, they can provide a convenient platform for information dissemination. In public areas such as parks, they can be used to display information about public welfare advertisements, cultural activities, etc.

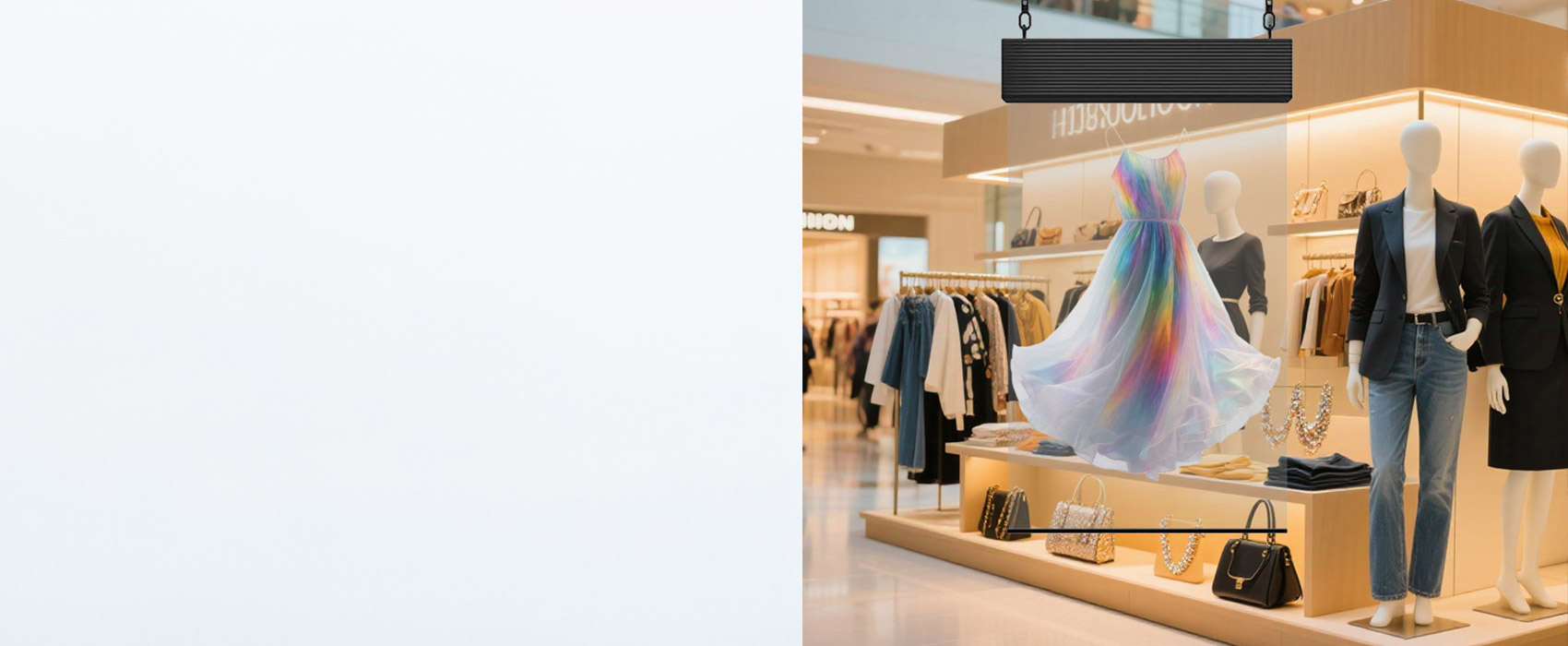

Easy to Install
The lamp beads are tightly arranged and distributed, and the installation is extremely simple. Compared with various film screen products in the market, the holographic invisible LED screen has higher brightness, durability and stability without yellowing, no frame and keel, and higher proportional pixel quality.
Easy to Install
The lamp beads are tightly arranged and distributed, and the installation is extremely simple. Compared with various film screen products in the market, the holographic invisible LED screen has higher brightness, durability and stability without yellowing, no frame and keel, and higher proportional pixel quality.
Technical Parameters:
| Model | DP-750W-1200H | LP-1000W-1500H |
| Module |  |  |
| Pixel Pitch | Horizontal: 3.91mm/Vertical: 3.91mm | |
| Pixel Density | 65536dot/ m² | |
| Visual Transparency | ＞80% | |
| Module Size | 750mm*1208mm | 1000mm*1508mm |
| Overall Module Size | 765mm*1350mm*74mm | 1065mm*1650mm*74mm |
| LED Type | 2121 (Integrated light drive) | |
| Resolution Ratio | 192x300pix | 256x376pix |
| LED Control System | Synchronous/Asynchronous | |
| Brightness | White balance brightness 3500cd/㎡; Automatically adjust and manually adjust according to ambient brightness | White balance brightness3000cd/㎡; Automatically adjust and manually adjust according to ambient brightness |
| Viewing Angle | Horizontal 160, Vertical 140 | |
| Display Thickness | 3.6mm | |
| Resumable Transmission | Supported | |
| Average Lifespan | ≥ 100000 hours | |
| Gray Scale | ≥16(bit) | |
| White Field Color Temperature | 5500K-15000K (adjustable) | |
| Drive Mode | Static | |
| Atenuation Rate | 2 years below 0.05% | |
| Lifespan | ≥100,000.00 hours | |
| Maximum Power Consumption | 1335W/ m² | 1068W/ m² |
| Average Power Consumption | 450W/ m² | |
| Power Supply Requirements | 110V ~ 220V±10%; AC50HZ, three-phase five-wire | |
| Operation Temperature | -20℃～+50℃ | |
| Working Humidity | 20% RH ~ 85% RH, no condensation | |
| Storage Temperature | -20℃ ~+60℃ | |
| Storage Humidity | 10%RH～85%RH，no condensation | |
| Installation Method | Hanging | |
| Packaging Method | Cardboard Case/ Plywood Case / Flight Case | |
| Download | ||
| Declaration: The relevant parameters in the table are updated in real time, and the data is for reference only. No further notice will be given if there are any upgrades. | ||
Product Categories
There are various types of products, which can be framed, wall-mounted/glass adhesive, hanging, stacking, and can be made into curved installations.
