INVISIA Product model:P1.25/P1.538/P1.568/P1.667/P1.86/P1.88/P2/P2.5/P3/P4
HOLOGRAPHIC INVISIBLE LED SCREEN
- The modular standardized size design is 320mm x 160mm.
- featuring low current, low-grade fever measurement.
- high contrast ratio of 5000:1.
- high brightness and grayscale.
- refresh rate ≥3840Hz, 12-16bit grayscale levels, with image presentation exhibiting no delay and no smearing phenomenon.
Product Feature:
Standardized Module (320mm x 160mm): Low current/power consumption High contrast (5000:1), brightness & grayscale Fast refresh (≥3840Hz), 12-16bit grayscale No delay/smearing 2.Flexible & Wide Viewing (160°): Bends to Ø509mm Ideal for curved displays (stages, exhibits, conferences) 3.Robust Construction: High-strength sandblasted iron cabinet Segmented splicing minimizes gaps Strong magnetic adsorption installation (precision machined sleeves ensure flatness) 4.Serviceable & Thin Design: Front maintenance/installation Flexible PCB, premium silicone mask/shell Ultra-thin: 5.2mm (minimal space) 5.Key Abbreviations Used: Ø: Diameter PCB: Printed Circuit Board mm: Millimeters Hz: Hertz bit: Bit depth (grayscale) °: Degrees (viewing angle)

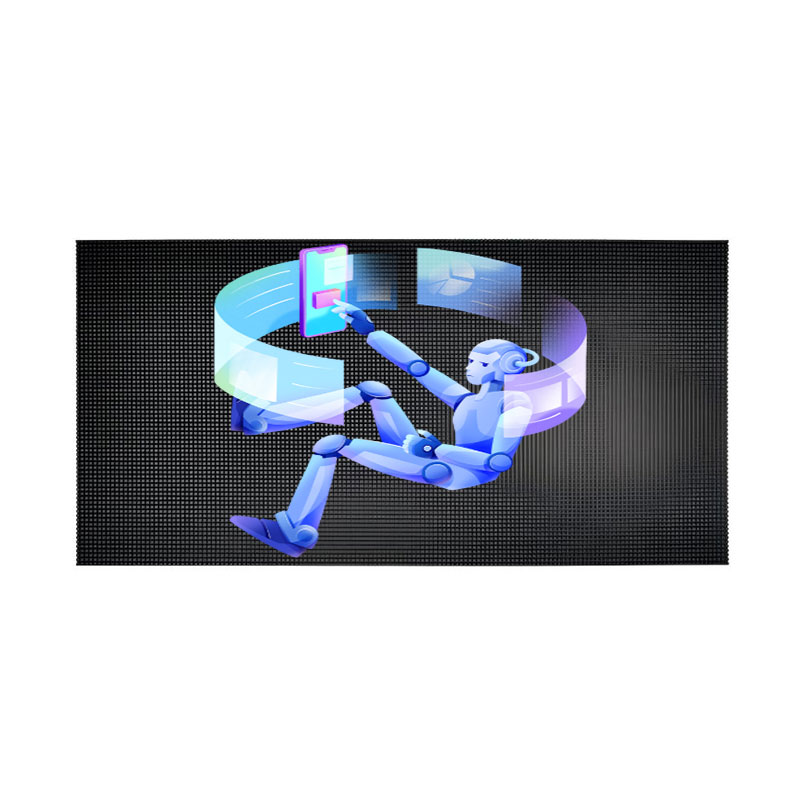

Holographic Invisible LED Screen
High brightness, high color gamut, and controllable color temperature allow you to experience transparent colors.
Superb Transparency
The holographic invisible LED screen is in a grid shape and uses specially designed transparent LED display elements so that light can penetrate the display screen without causing obvious obstruction to the background. This display element combines LED technology and optical principles to achieve a balance between transparency and display effects by controlling the propagation path and reflection of light.
Feature of Product
The bottom shell is made of premium silicone material, featuring excellent flexibility, high temperature resistance, low temperature protection, static elimination, and strong protective performance.

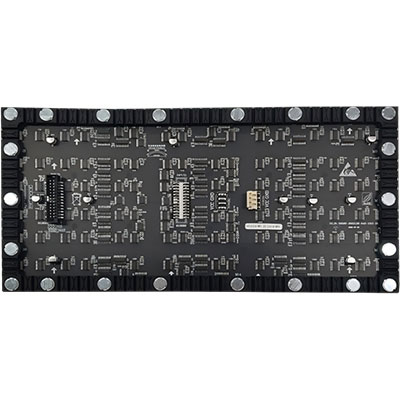

PCB board，TG140 standard，special circuit layout
The PCB board adopts TG140 standard substrate material, with special circuit layout and multilayer board process design, using high-grade materials to significantly reduce the “color temperature” phenomenon
Silicone raw material
The bottom shell is made of premium silicone material, featuring excellent flexibility, high temperature resistance, low temperature protection, static elimination, and strong protective performance.

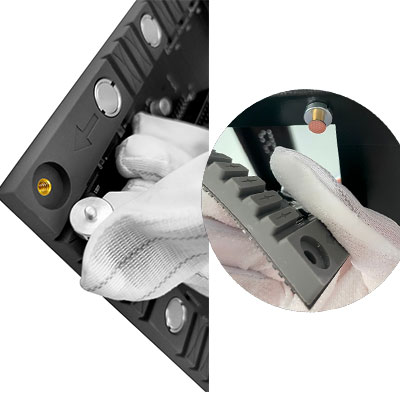

Easy to Install
During the installation and removal of modules, violent tearing is strictly prohibited to avoid damaging the PCB board due to excessive force;

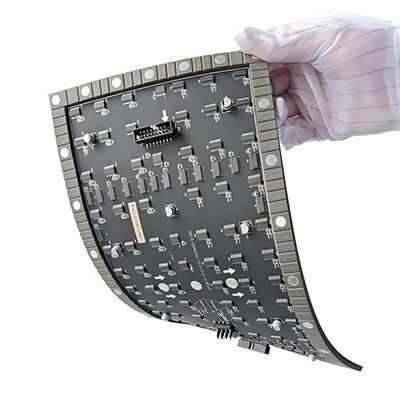

The minimum bending diameter for flexible modules should be within 509mm, and repeated violent folding of the modules is strictly forbidden.
Easy to Install
Electrostatic Protection: LED beads and CMOS tubes are relatively sensitive to static electricity and prone to damage from electrostatic discharge. During screen installation or maintenance, operators (homo sapiens) must wear anti-static gloves or wrist straps. When working at the workstation, the workstation must be covered with a thermally conductive anti-static mat, and both the workstation and equipment such as soldering irons must be properly grounded.
Technical Parameters:
| Product Name | P1.25 | P1.538 | P1.568 | P1.667 | P1.86 | P2 | P2.5 | P3.076 | P4 | |
|---|---|---|---|---|---|---|---|---|---|---|
 |  |  |  |  |  |  |  |  |
||
| Product Name | Pixel configuration | 1R1G1B（Full color） | ||||||||
| LED packaging specifications | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2121 | ||||
| Pixel density (dots/m²) | 640000 | 422500 | 406406 | 360000 | 288906 | 250000 | 160000 | 105625 | 62500 | |
| Module dimensions (mm) | 320x160x5.25（Length x Height x Thickness） | |||||||||
| Module resolution | 256x128 | 208x104 | 204x102 | 192x96 | 172x86 | 160x80 | 128x64 | 104x52 | 80x40 | |
| Scanning method | 1/64 | 1/52 | 1/51 | 1/48 | 1/43 | 1/40 | 1/32 | 1/26 | 1/20 | |
| Refresh rate (Hz) | ≥3000-3840 | ≥1920 | ||||||||
| Frame rate (Hz) | 50&60 | |||||||||
| Gray level (bit) | 12-16 Adjustable | |||||||||
| Signal interface method | HUB75 | |||||||||
| Module base shell material | Silicone soft bottom case | |||||||||
| Module weight (kg/piece) | 0.334 | 0.33 | 0.325 | 0.318 | 0.316 | 0.315 | 0.269 | 0.252 | 0.23 | |
| Enclosure dimensions | Can be customized according to the module size | |||||||||
| Box material | Sheet metal sandblasted iron box | |||||||||
| Box flatness (mm) | ≤ 0.3 | |||||||||
| Protection level | IP45 | |||||||||
| Installation/Maintenance Method | Support front and rear installation & front and rear maintenance | |||||||||
| Optical properties | Brightness (nits) | 650-800cd | ||||||||
| Color temperature (K) | 3000—10000 Adjustable | |||||||||
| Brightness uniformity | ≥97% | |||||||||
| Horizontal/vertical viewing angle | ≥160°/≥140° | |||||||||
| Contrast | 5000:01:00 | |||||||||
| Electrical parameters | Module power supply voltage DC (V) | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Maximum current of the module DC (A) | 5 | 5 | 5 | 5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | |
| Maximum power consumption of the module (w/piece) | 25 | 25 | 25 | 25 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | |
| Working input voltage AC (V) | 110-220 Customizable | |||||||||
| Module peak power consumption (W/m²) | 490 | 490 | 490 | 490 | 440 | 440 | 440 | 440 | 440 | |
| Module average power consumption (W/m²) | 165 | 165 | 165 | 165 | 150 | 150 | 150 | 150 | 150 | |
| Electrical parameters | Typical lifetime (hrs) | 100,000 | ||||||||
| Operating temperature range (°C) | -10—50 | |||||||||
| Storage temperature range (°C) | -20—60 | |||||||||
| Operating humidity range (RH) | 20—85%（Without condensation） | |||||||||
| Storage humidity range (RH) | 20—80%（Without condensation） | |||||||||
Product Categories
The flexible display product series covers module sizes of 320mmx160mm and 240mmx120mm.
Product Categories
Dot spacing includes：P1.25，P1.538，P1.568，P1.667，P1.86，P1.88，P2，P2.5，P3，P4。
